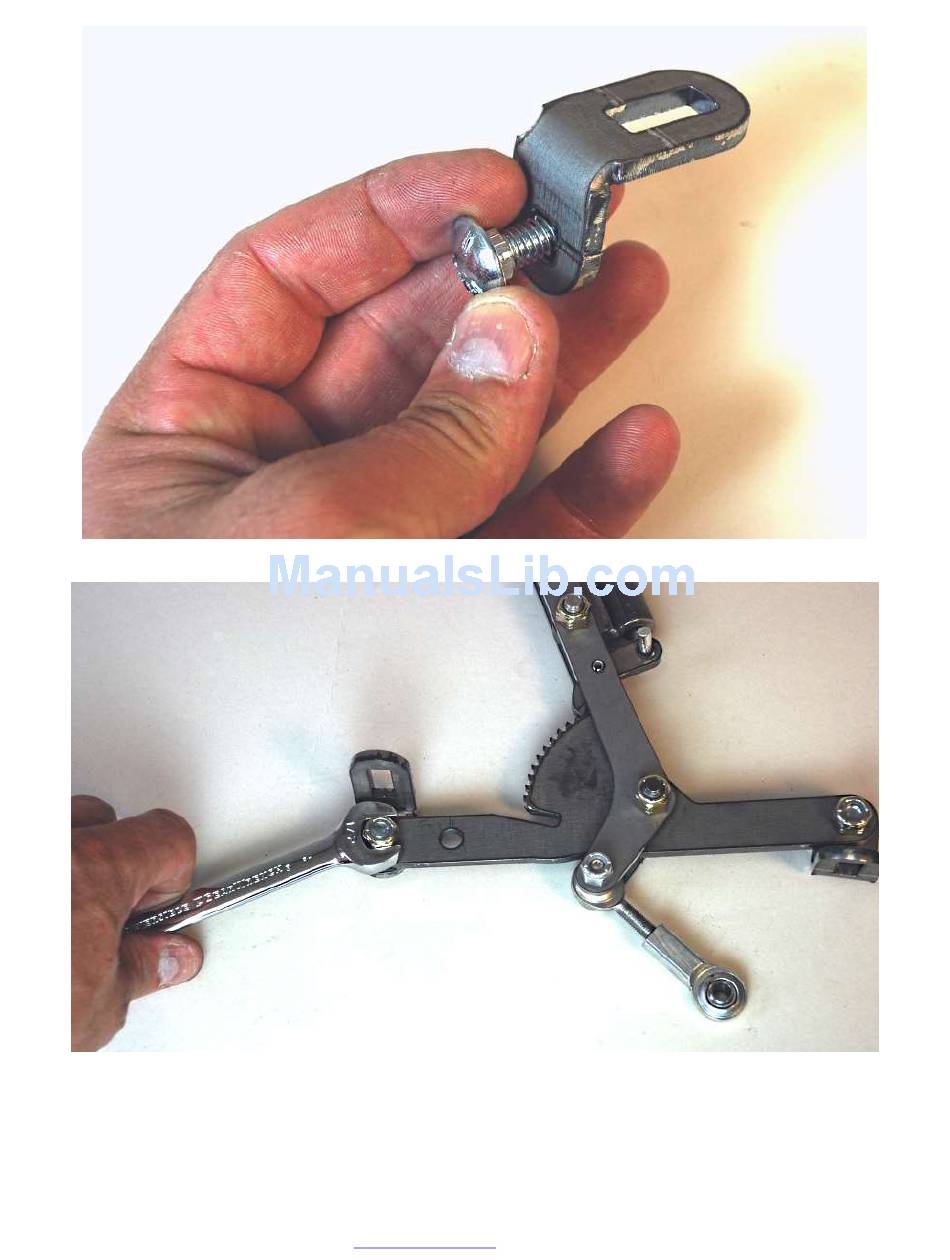

" carriage bolt into one of the bent mount brackets so the square shoulder is in the square hole.
5
Insert a
/
16
Attach the mount brackets to the fixed gear using a ½" wrench. Leave the locknut slightly loose so positioning
can be done on the frame later.
269
www.factoryfive.com
508-291-3443
