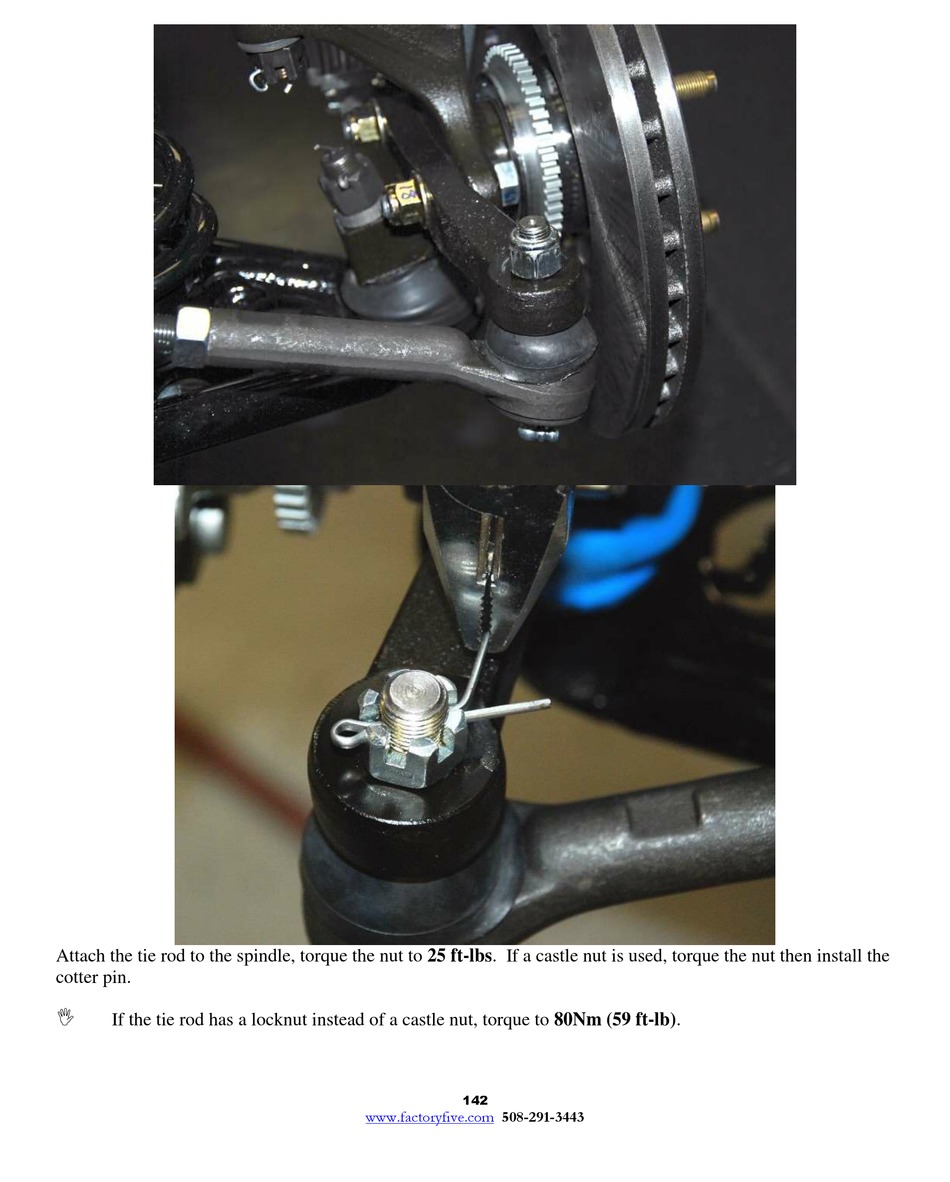

Attach the tie rod to the spindle, torque the nut to 25 ft-lbs. If a castle nut is used, torque the nut then install the
cotter pin.
If the tie rod has a locknut instead of a castle nut, torque to 80Nm (59 ft-lb).
142
www.factoryfive.com
508-291-3443
