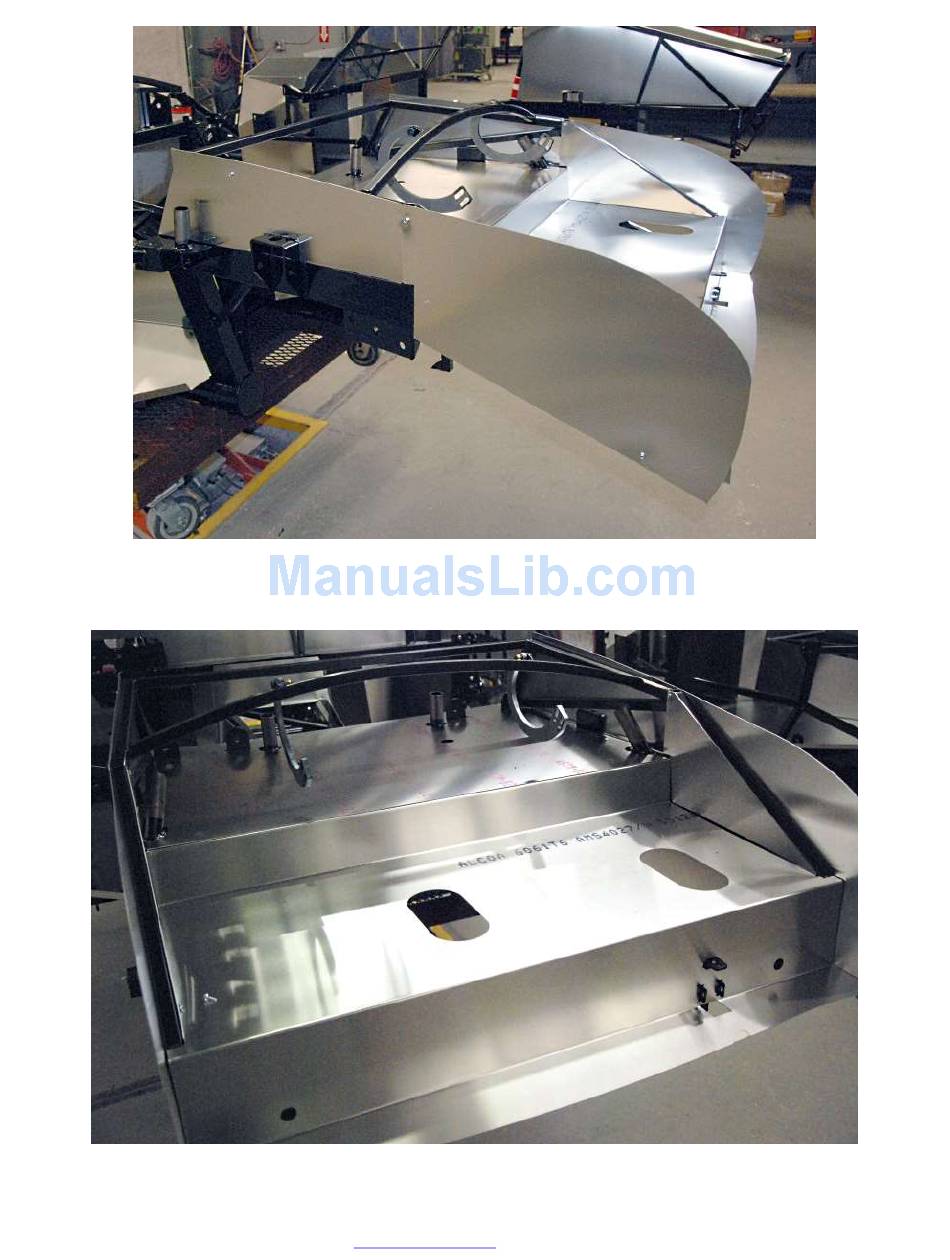

Silicone and rivet in the trunk side panels.
Remove the rear bolt of the passenger side gas tank strap.
With the rear taillight harness tied up and secure, silicone and install the lower trunk floor.
Re-install the gas tank strap and tighten.
208
