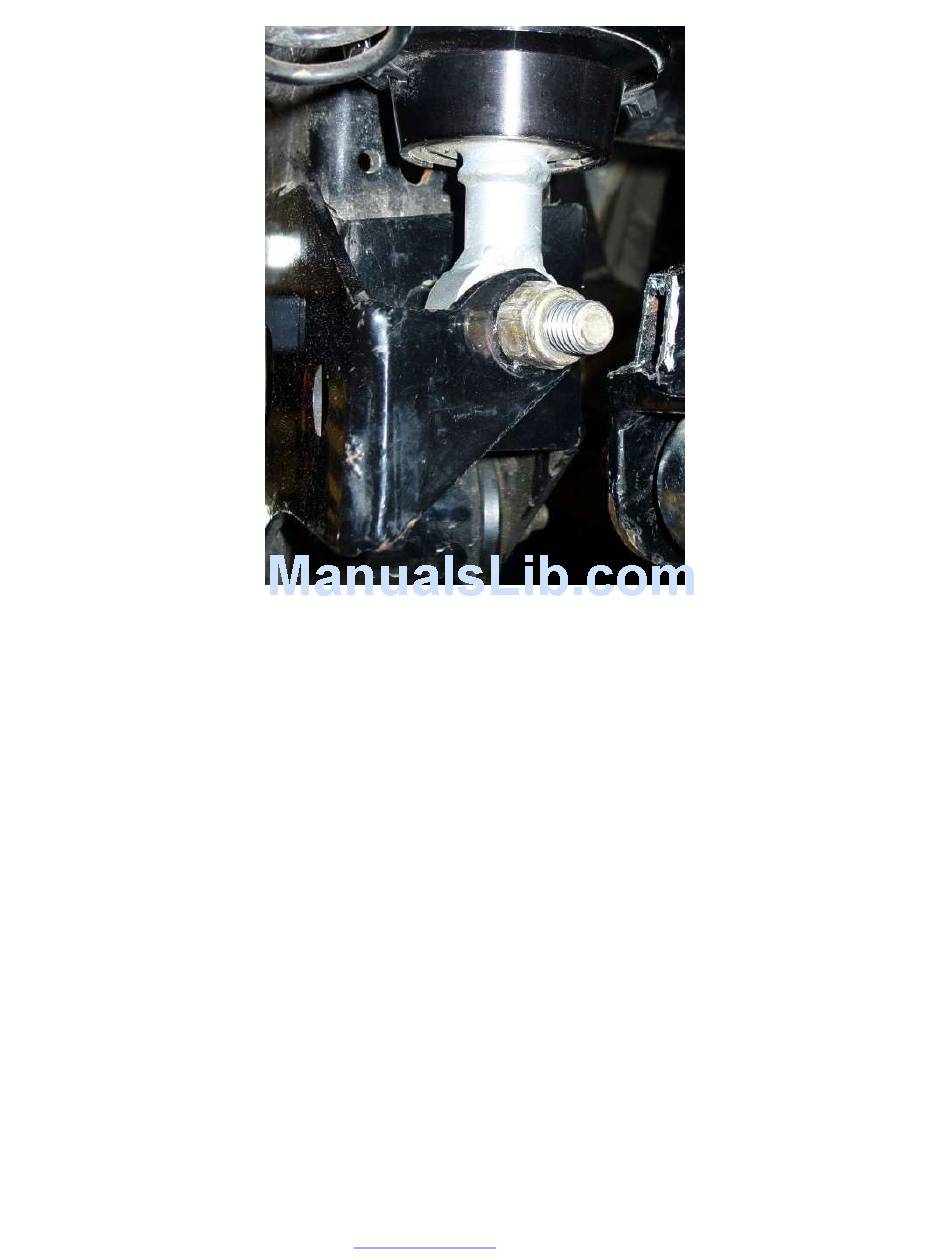

Install the kit ½"x 4" bolts are provided for each lower shock mount. From the rear, the bolt goes through the

bracket, ⅛" shim, shock, then the long spacer (1.09") followed by the bracket and axle. Use a ¾" socket and

Torque wrench to tighten both upper and lower mounts to 40 ft-lbs.

Check for shock clearance on brake lines, emergency brake cables, brake calipers, frame and axle parts.

Check to make sure that the spring is seated correctly on the shock.
