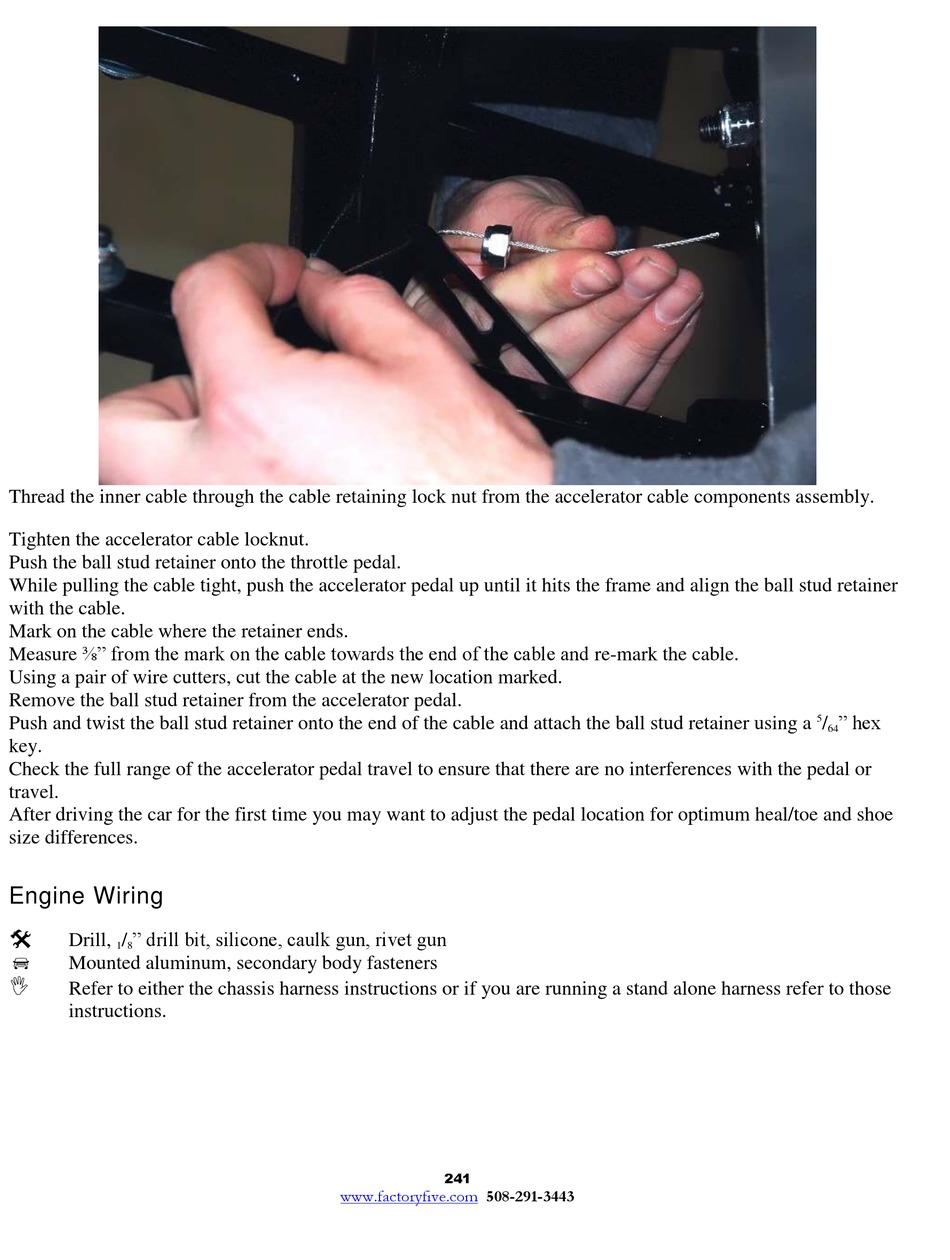

Thread the inner cable through the cable retaining lock nut from the accelerator cable components assembly.
Tighten the accelerator cable locknut.
Push the ball stud retainer onto the throttle pedal.
While pulling the cable tight, push the accelerator pedal up until it hits the frame and align the ball stud retainer
with the cable.
Mark on the cable where the retainer ends.
Measure ⅜" from the mark on the cable towards the end of the cable and re-mark the cable.
Using a pair of wire cutters, cut the cable at the new location marked.
Remove the ball stud retainer from the accelerator pedal.
Push and twist the ball stud retainer onto the end of the cable and attach the ball stud retainer using a
key.
Check the full range of the accelerator pedal travel to ensure that there are no interferences with the pedal or
travel.
After driving the car for the first time you may want to adjust the pedal location for optimum heal/toe and shoe
size differences.

Engine Wiring

 " drill bit, silicone, caulk gun, rivet gun
Drill, /
1 8

Mounted aluminum, secondary body fasteners

Refer to either the chassis harness instructions or if you are running a stand alone harness refer to those
instructions.
