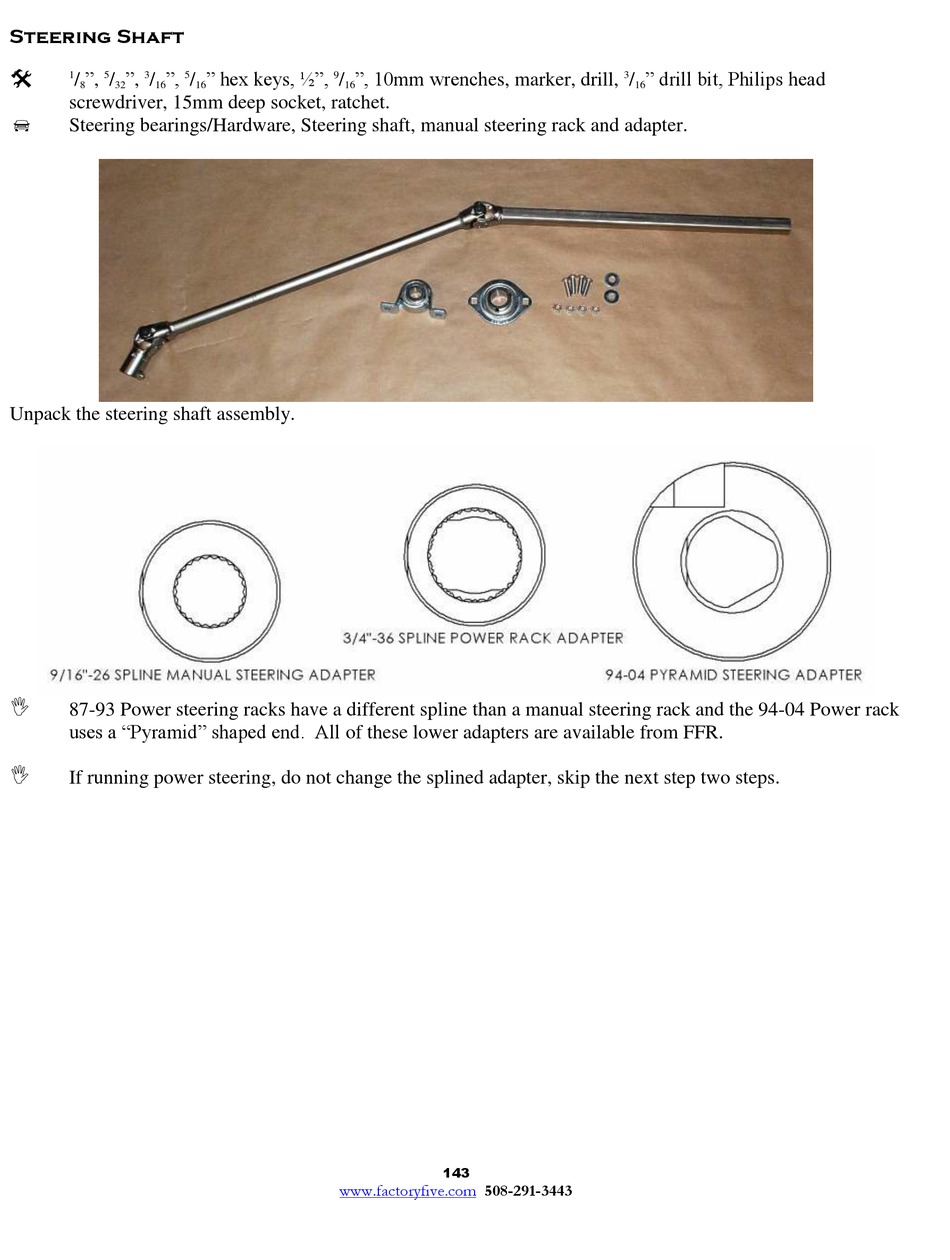

Steering Shaft


", ", ",
1 5 3
/ / /
8 32 16
screwdriver, 15mm deep socket, ratchet.

Steering bearings/Hardware, Steering shaft, manual steering rack and adapter.
Unpack the steering shaft assembly.

87-93 Power steering racks have a different spline than a manual steering rack and the 94-04 Power rack
uses a "Pyramid" shaped end. All of these lower adapters are available from FFR.

If running power steering, do not change the splined adapter, skip the next step two steps.
" hex keys, ½", ", 10mm wrenches, marker, drill,
5 9
/ /
16 16
www.factoryfive.com
143
508-291-3443
" drill bit, Philips head
3
/
16
