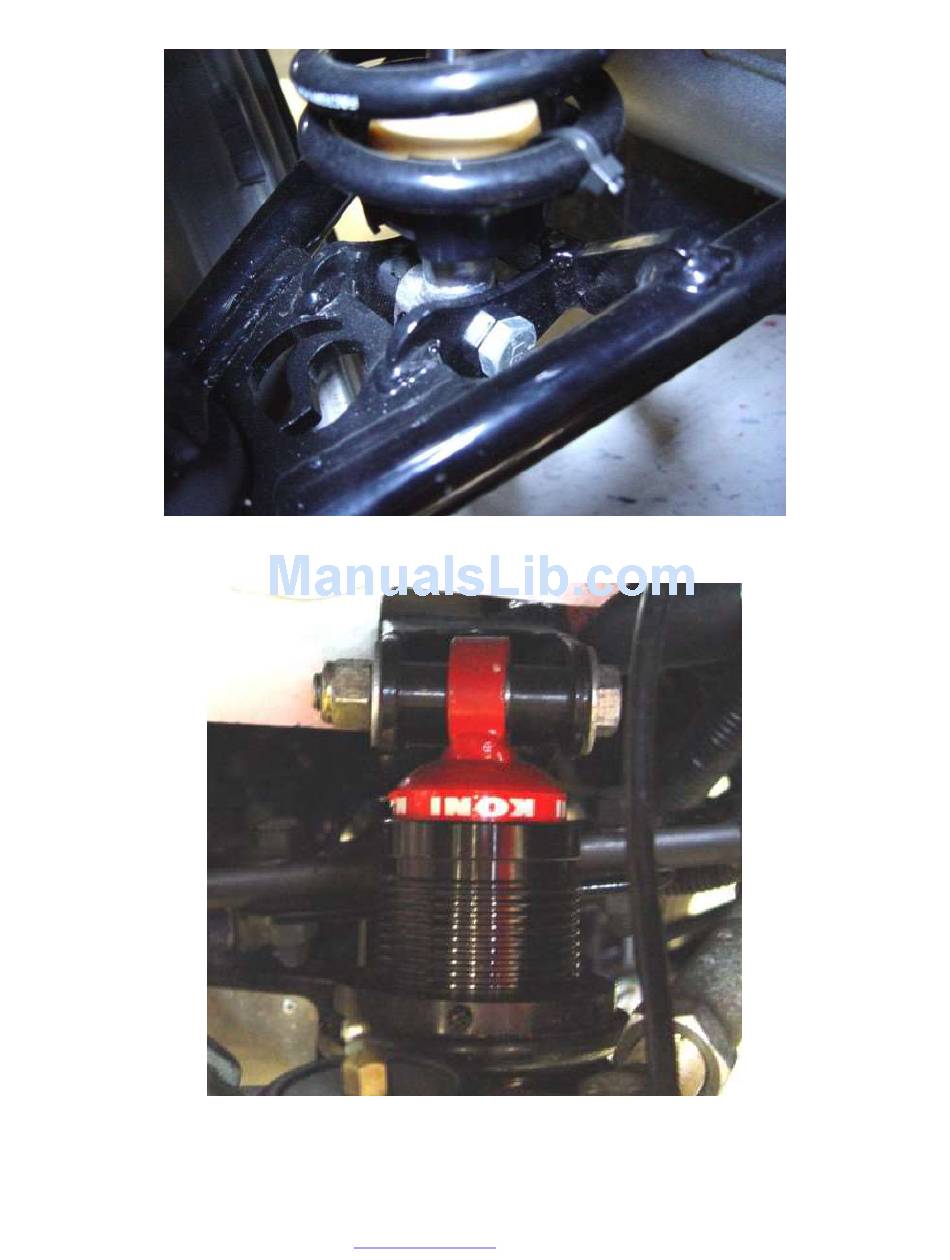

Run zip ties through the holes in the spring hat and around the spring to prevent the spring from becoming
unseated.
Fasten the shock to the top mount with the fasteners and 0.675" spacers provided and torque both upper and
lower mounts to 40 ft-lbs.
43
