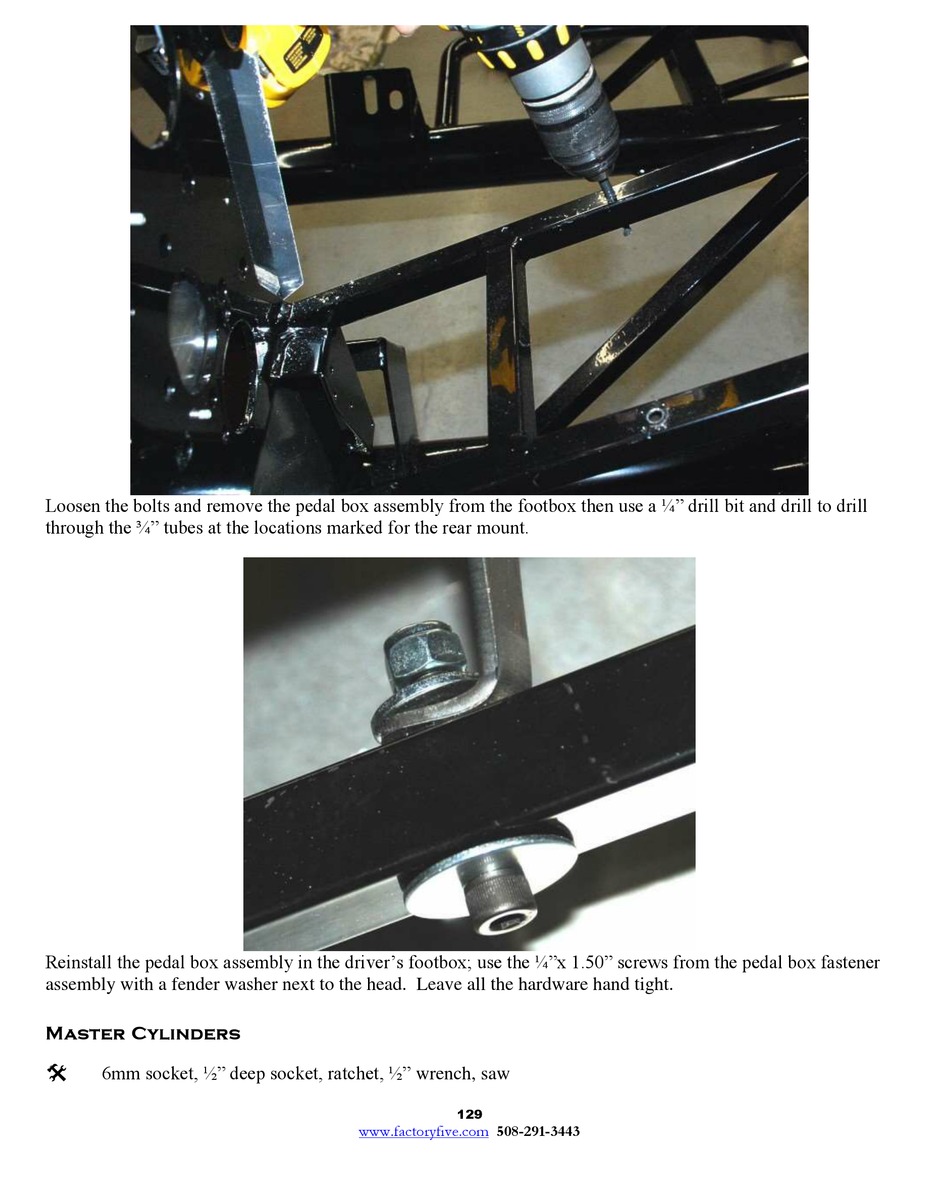

Loosen the bolts and remove the pedal box assembly from the footbox then use a ¼" drill bit and drill to drill
through the ¾" tubes at the locations marked for the rear mount.
Reinstall the pedal box assembly in the driver's footbox; use the ¼"x 1.50" screws from the pedal box fastener
assembly with a fender washer next to the head. Leave all the hardware hand tight.

Master Cylinders


6mm socket, ½" deep socket, ratchet, ½" wrench, saw
129
