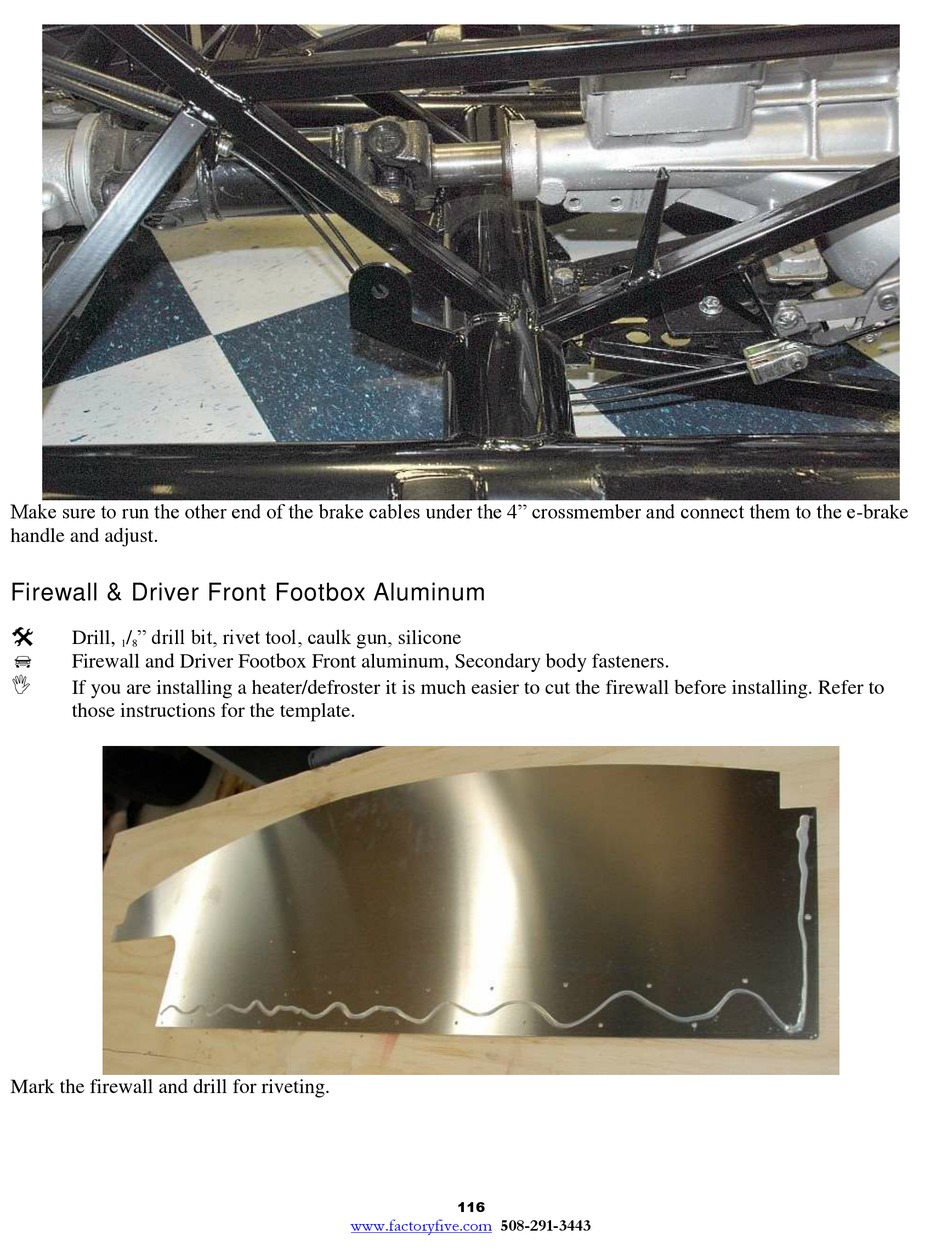

Firewall & Driver Front Footbox Aluminum - Factory Five Racing MK4 ROADSTER Assembly Manual

Make sure to run the other end of the brake cables under the 4" crossmember and connect them to the e-brake
handle and adjust.
Firewall & Driver Front Footbox Aluminum

" drill bit, rivet tool, caulk gun, silicone
Drill, /
1 8

Firewall and Driver Footbox Front aluminum, Secondary body fasteners.

If you are installing a heater/defroster it is much easier to cut the firewall before installing. Refer to
those instructions for the template.
Mark the firewall and drill for riveting.
116
