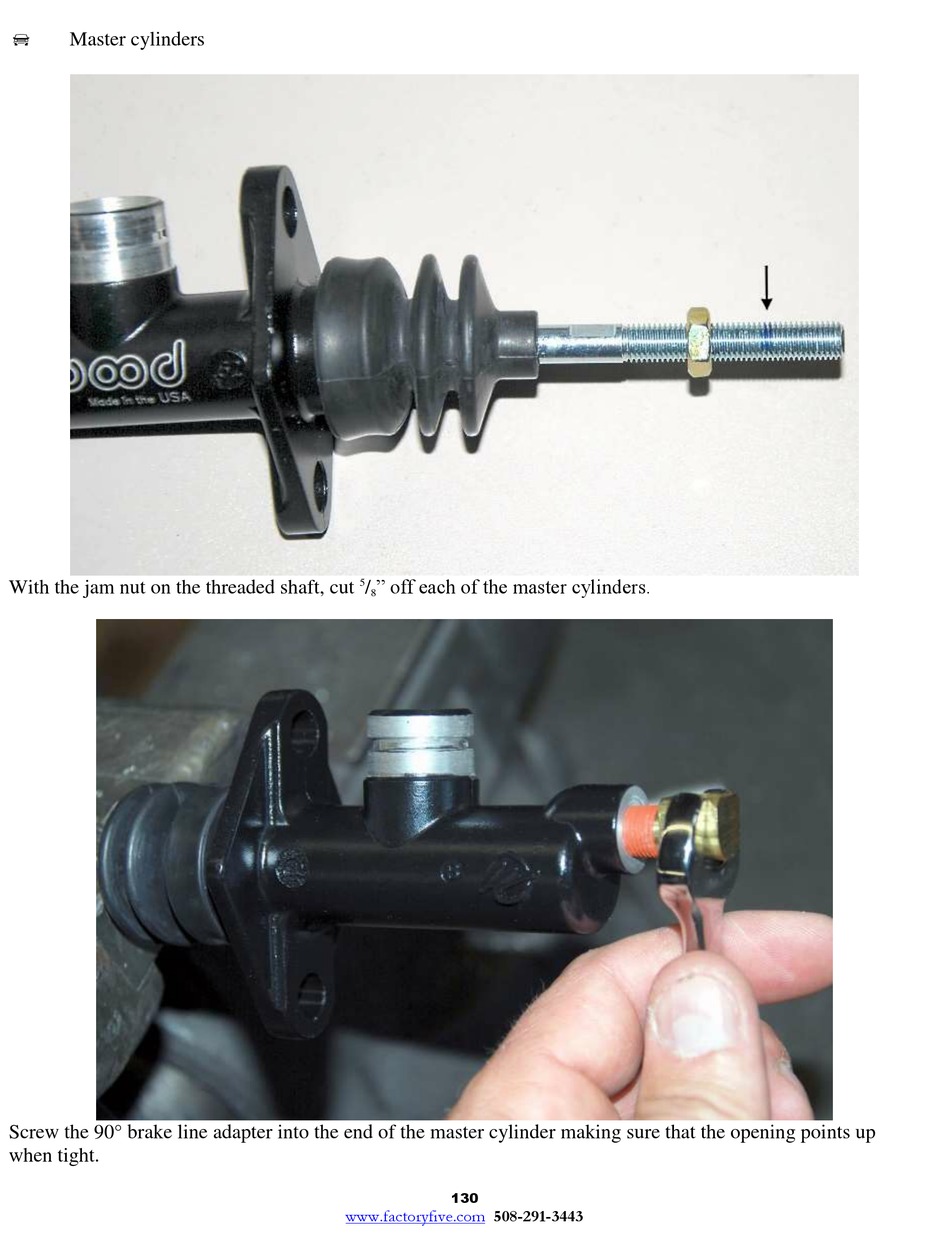

Master cylinders
" off each of the master cylinders.
5
With the jam nut on the threaded shaft, cut
/
8
Screw the 90° brake line adapter into the end of the master cylinder making sure that the opening points up
when tight.
130
www.factoryfive.com
508-291-3443
