Fuel Gauge Sender

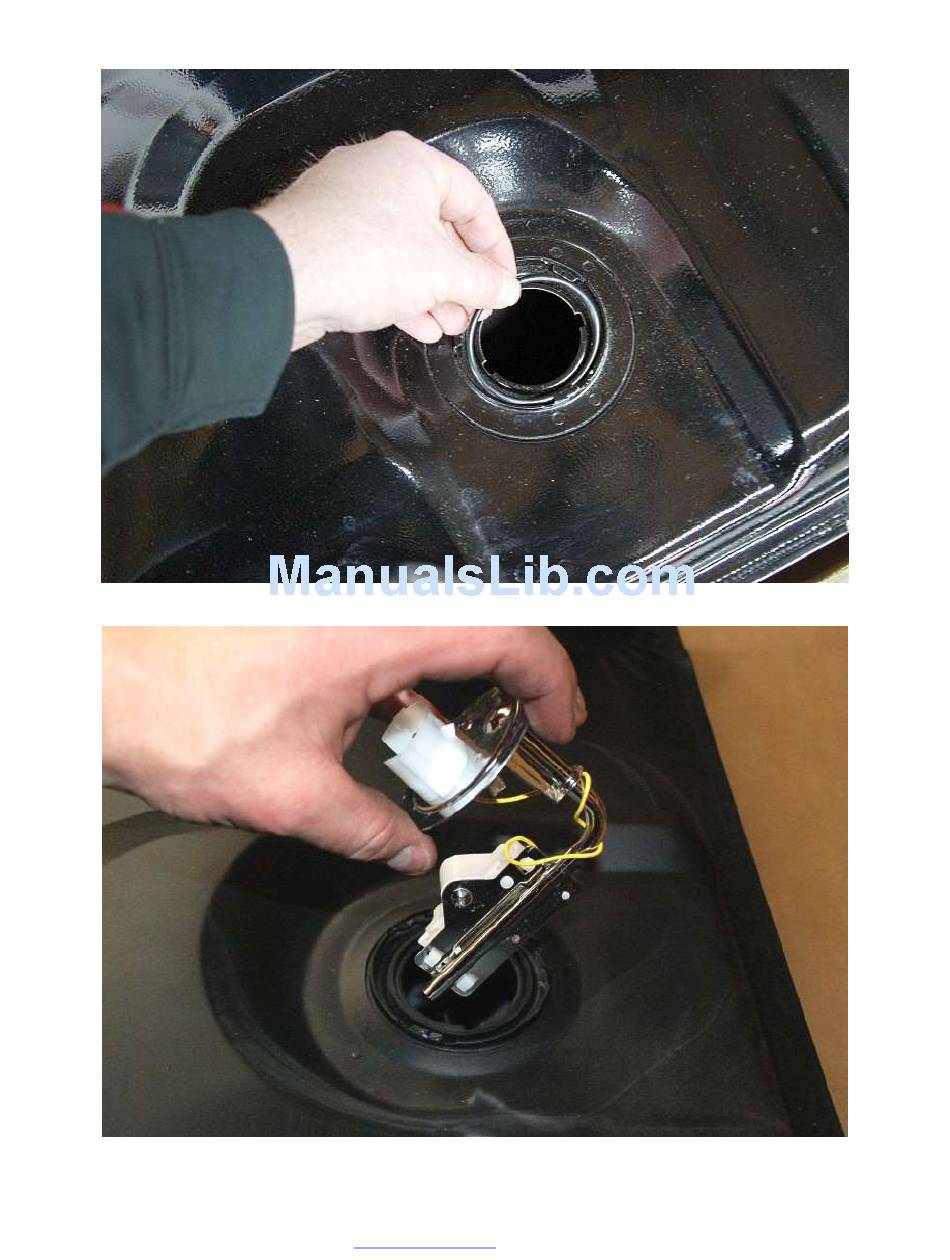

Set the rubber o-ring in place for the fuel level sending unit.
Insert the fuel level sender into the tank.
