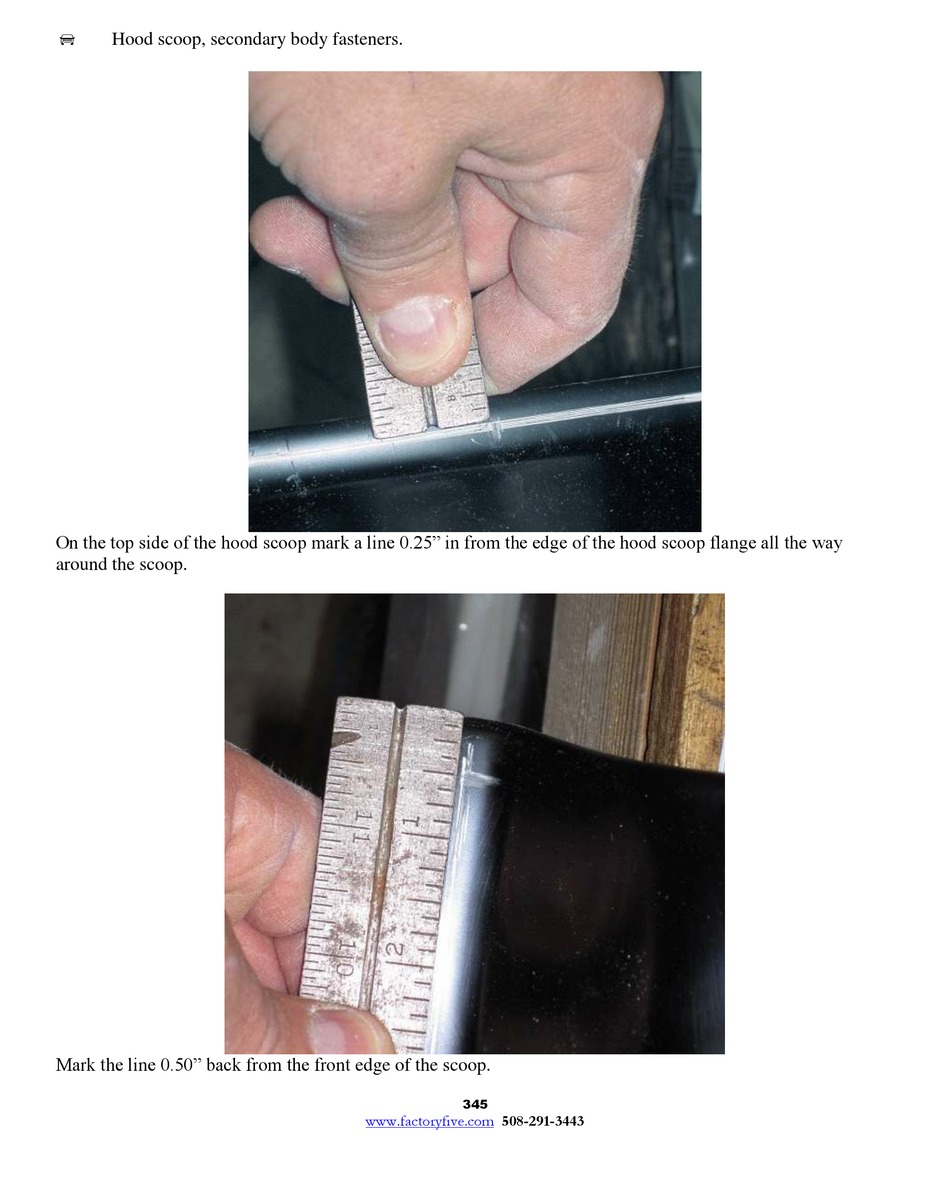

Hood scoop, secondary body fasteners.
On the top side of the hood scoop mark a line 0.25" in from the edge of the hood scoop flange all the way
around the scoop.
Mark the line 0.50" back from the front edge of the scoop.
345
www.factoryfive.com
508-291-3443
