Panhard Bar

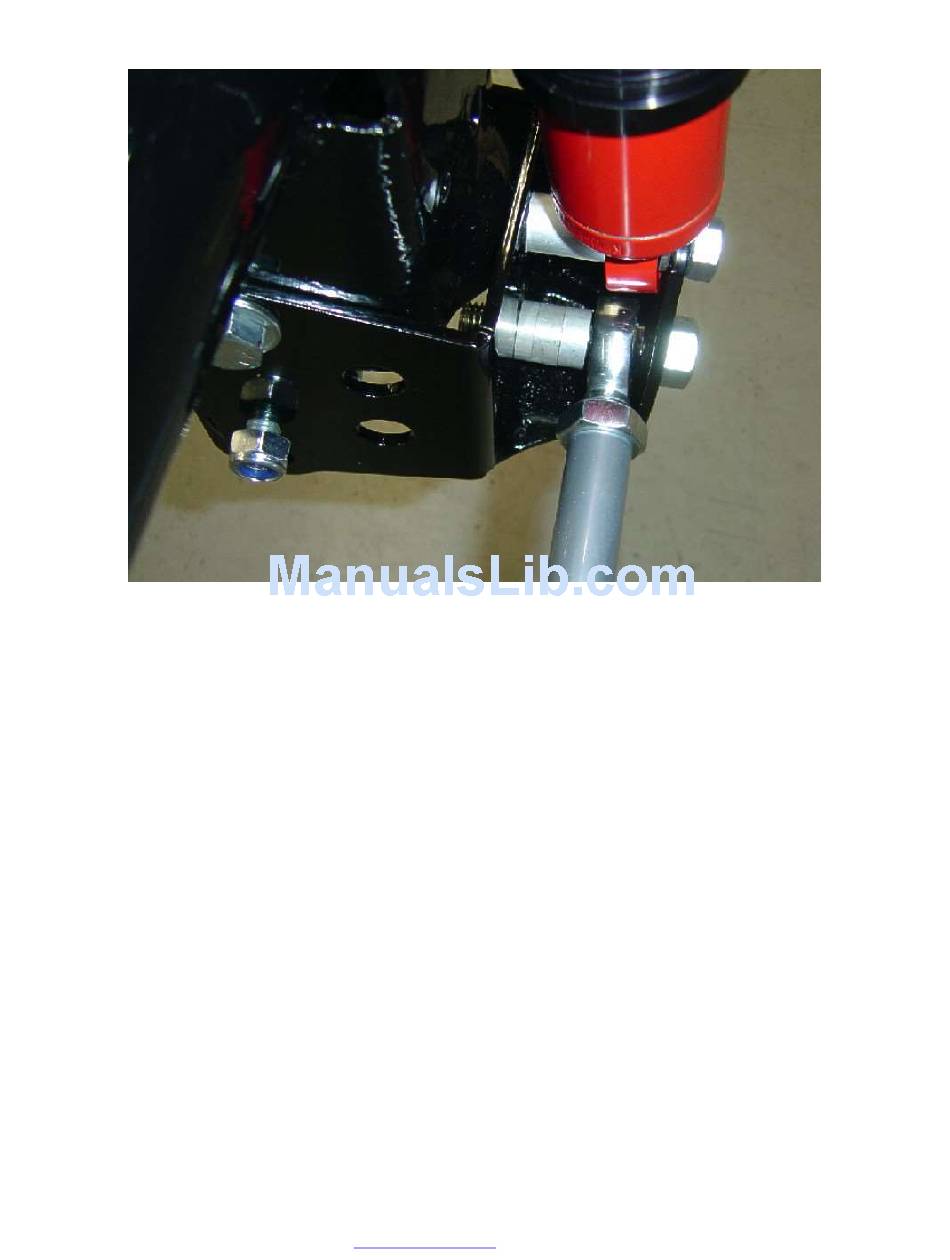

The Panhard bar mounts to the car using the ⅝"x 3" bolts and spacers. Install the Panhard bar to the passenger

side traction lock bracket. Three spacers are used in the front (2) 0.375" (FFR# 14064) and (1) 0.25" (FFR#

14065). The rear uses the thin 0.0625" shim (FFR# 13337). It will be necessary to adjust the length some to fit,

make sure that you adjust the same amount on both sides. There should never be less than ¾" of threads

screwed into either the Panhard bar or the upper arm.
