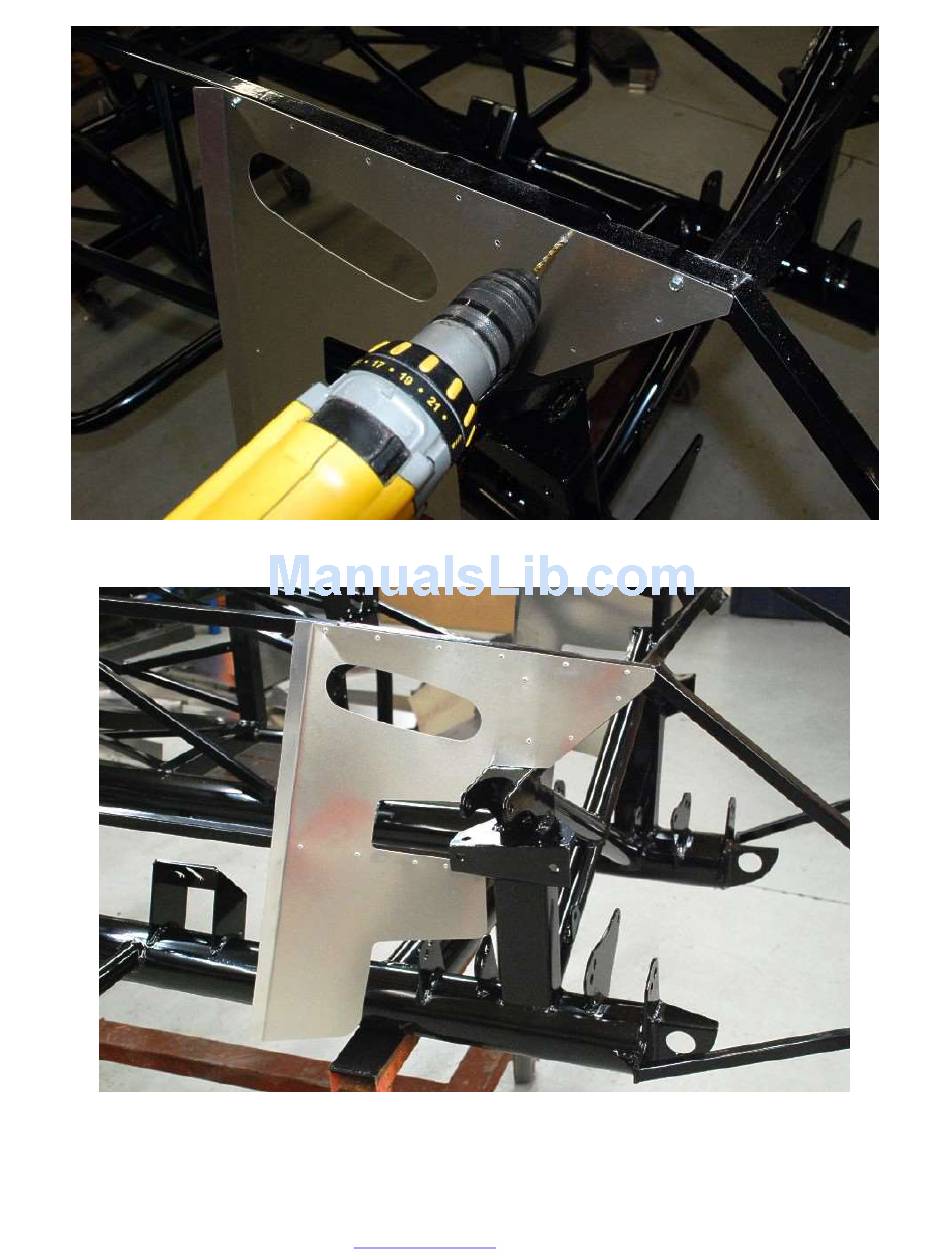

" rivet holes through the panel holes into the
1
Use the original #6 screws to remount the panel then drill the
/
8
chassis.
" short rivets, then remove the screws and replace them with rivets.
1
Rivet the panel in place using
/
8
Repeat for the other side.
31
www.factoryfive.com
508-291-3443
