Clutch Cable Quadrant - Factory Five Racing MK4 ROADSTER Assembly Manual

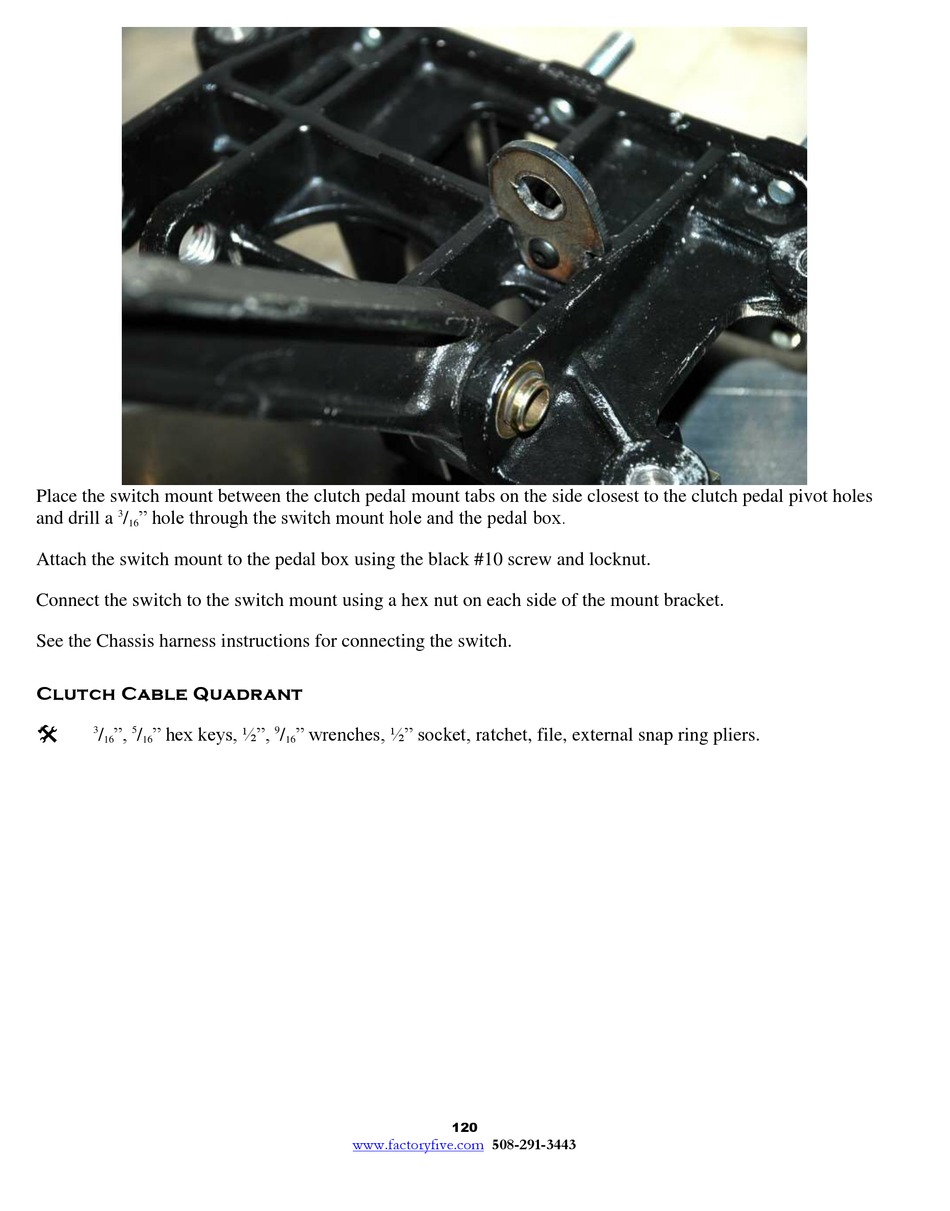

Place the switch mount between the clutch pedal mount tabs on the side closest to the clutch pedal pivot holes
" hole through the switch mount hole and the pedal box.
3
and drill a /
16
Attach the switch mount to the pedal box using the black #10 screw and locknut.
Connect the switch to the switch mount using a hex nut on each side of the mount bracket.
See the Chassis harness instructions for connecting the switch.

Clutch Cable Quadrant


", " hex keys, ½", " wrenches, ½" socket, ratchet, file, external snap ring pliers.
3 5 9
/ / /
16 16 16
