X-Ref Target - Figure C-5
To integrate and use the Video PHY Controller for HDMI 1.4/2.0 Transmitter Subsystem in
the application code, the following steps must be followed:
1. Include the subsystem header file xvphy.h that defines the subsystem object.
2. Declare and allocate space for a Video PHY Controller instance in your application code.
Example:
XVphy Vphy;
3. In the Video PHY Controller instance, there is a metadata structure to store its hardware
configuration. Declare a pointer variable in the application code to point to the
instance:
XVphy_Config *XVphyCfgPtr;
HDMI 1.4/2.0 TX Subsystem
PG235 October 4, 2017

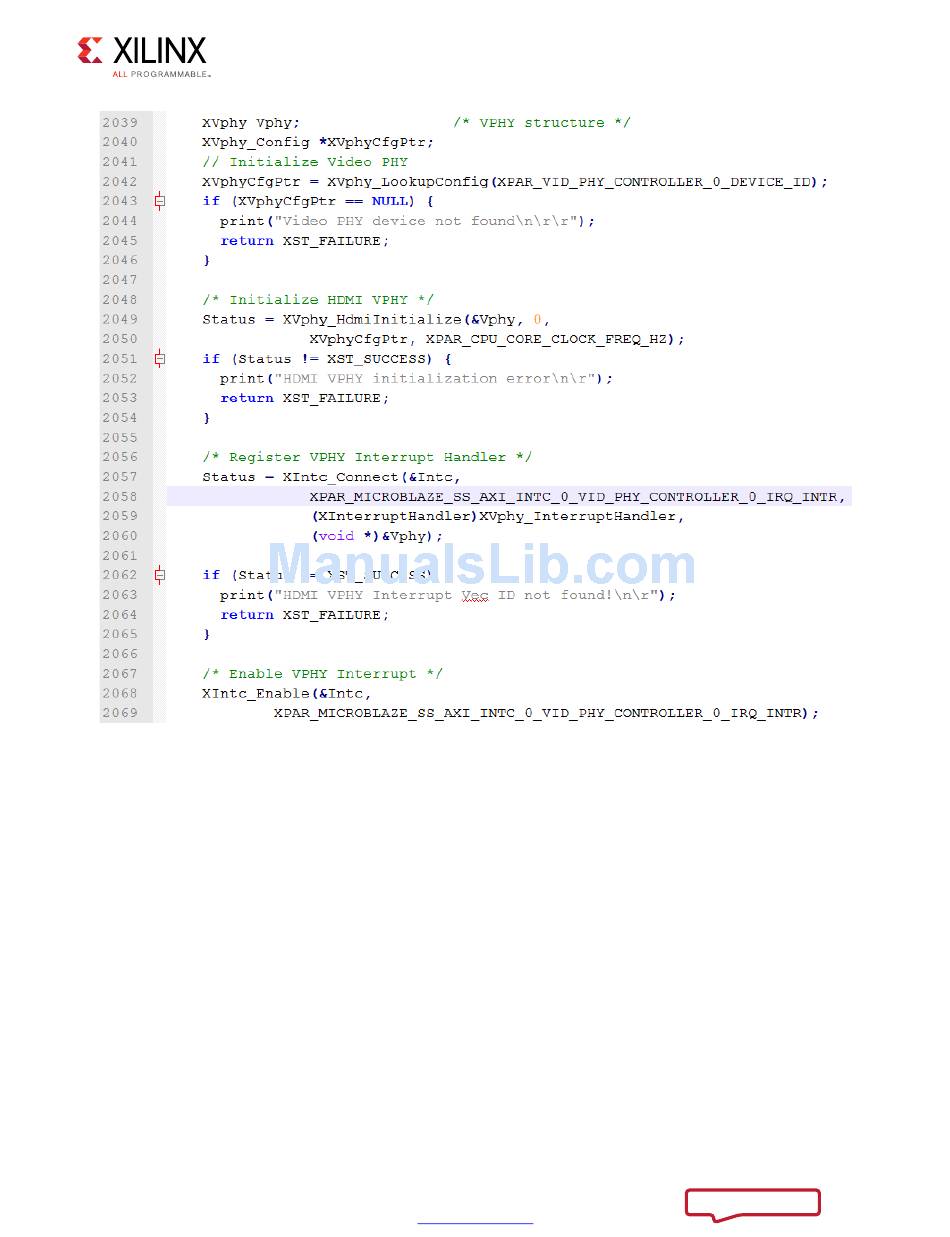

Figure C‐5: Application Example Code
