X-Ref Target - Figure 2-14

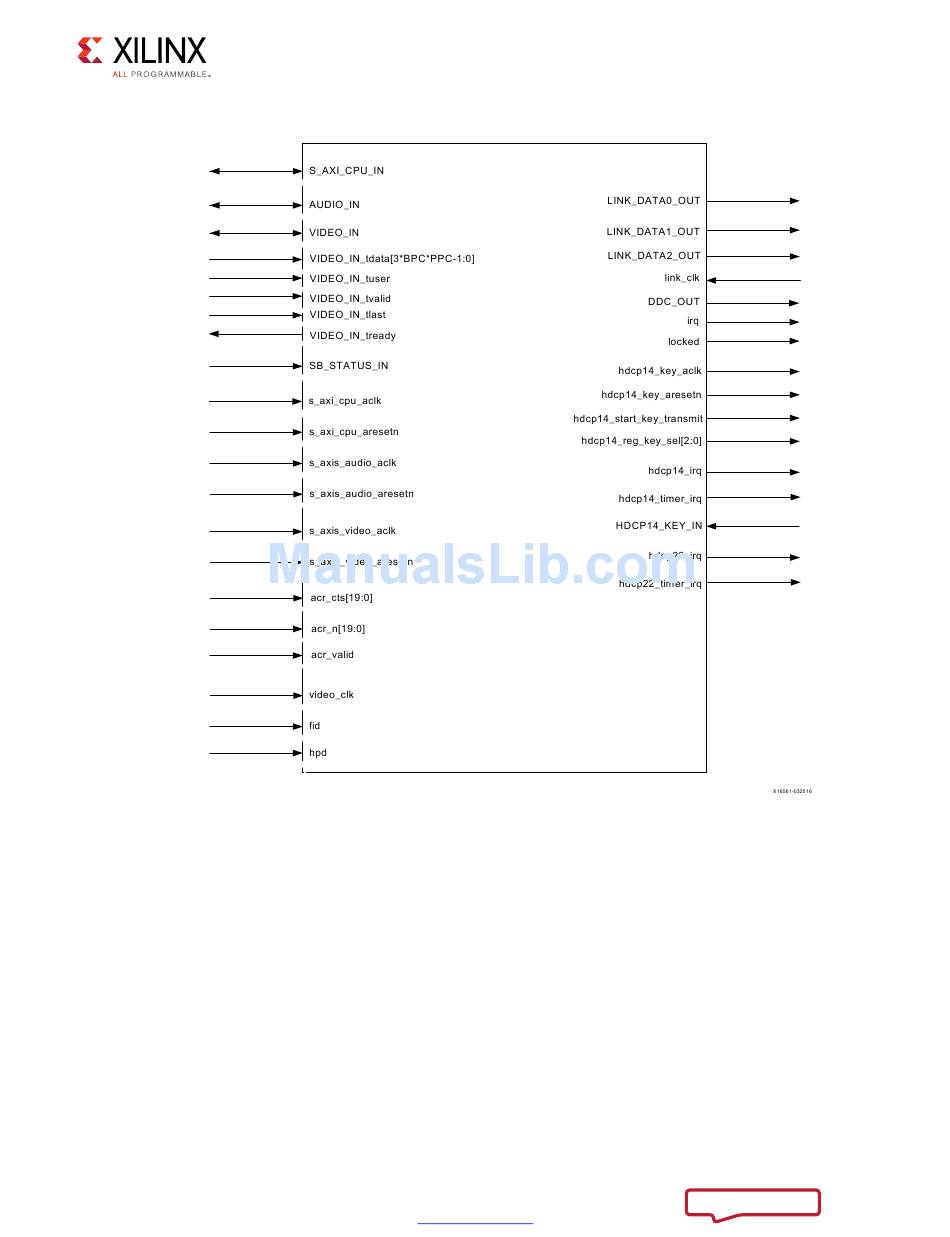

Figure 2‐14: HDMI TX Subsystem Pinout – AXI4-Stream Video Interface
Figure 2-15 to
Native Video is selected as video interface. The VIDEO_IN port is expanded in the figure to
show the detail Native Video bus signals.
HDMI 1.4/2.0 TX Subsystem
PG235 October 4, 2017
(HDCP 1.4 and HDCP 2.2)
Figure 2-18 show the HDMI 1.4/2.0 Transmitter Subsystem ports when
