Video Resolution Horizontal Total Horizontal Active Vertical Total Vertical Active
1080p60
Pixel clock represents the total number of pixels need to be sent every second. Therefore,
Pixel clock = Htotal × Vtotal × Frame Rate
=2200 x 1125 x 60
=148,500,000
= 148.5Mhz
Link clock = (Data clock)/4=222.75/4=55.6875Mhz
Video clock = (Pixel clock)/PPC=148.5/2=74.25Mhz
Data clock = Pixel clock × BPC/8=148.5× 12/8=222.75Mhz
Using the associative property in this example,
Data clock = 222.75Mhz < 340Mhz
then
TMDS clock = Data clock = 222.75Mhz

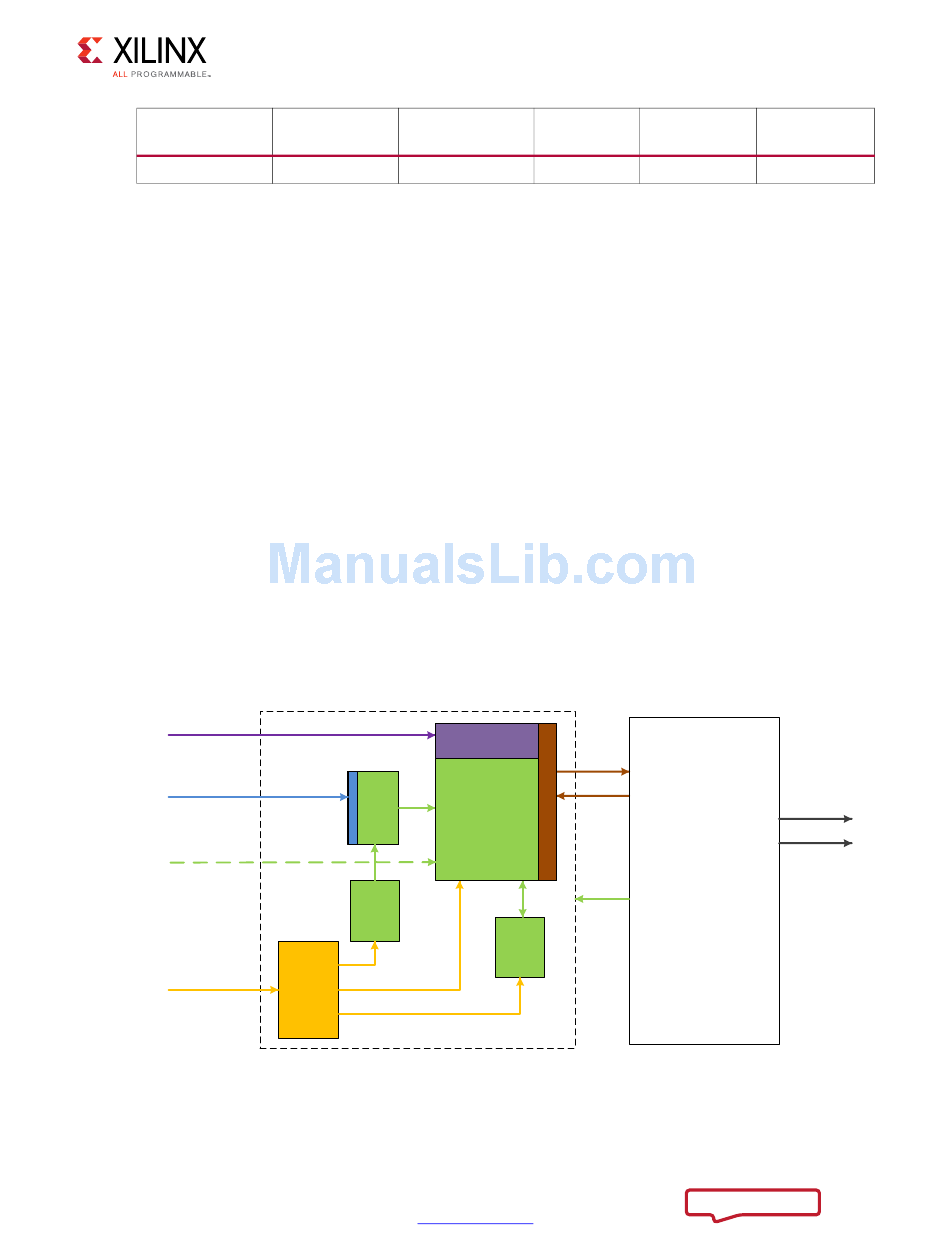

Figure shows how the clock is distributed in HDMI TX Subsystem and the relationship to
the Video PHY Controller.
X-Ref Target - Figure 3-11
Audio interface
(axis_audio_aclk)
Video interface opt 1
(axis_video_aclk)
Video interface opt 2
(video_clk)
CPU interface
(AXI4-lite)
Figure 3‐11: HDMI Transmitter Subsystem and Video PHY Controller
The HDMI TX Subsystem is able to support either AXI4-Stream Video or Native Video.
HDMI 1.4/2.0 TX Subsystem
PG235 October 4, 2017
2200 1920
TX Subsystem
AXI4-S
to
Video
Bridge
Video
Timing
Controller
AXI4
Interconnect
www.xilinx.com
Chapter 3:
1125 1080
Video Phy Controller
Link Data
vid_phy_tx_axi4s
Link Clock
HDMI TX
txoutclk
Core
video_clk
tx_video_clk
HDCP
(optional)
Designing with the Subsystem
Frame Rate
(Hz)
60
TMDS data
phy_tx_out[2:0]
TMDS clock
tx_tmds_clk
