X-Ref Target - Figure 2-17

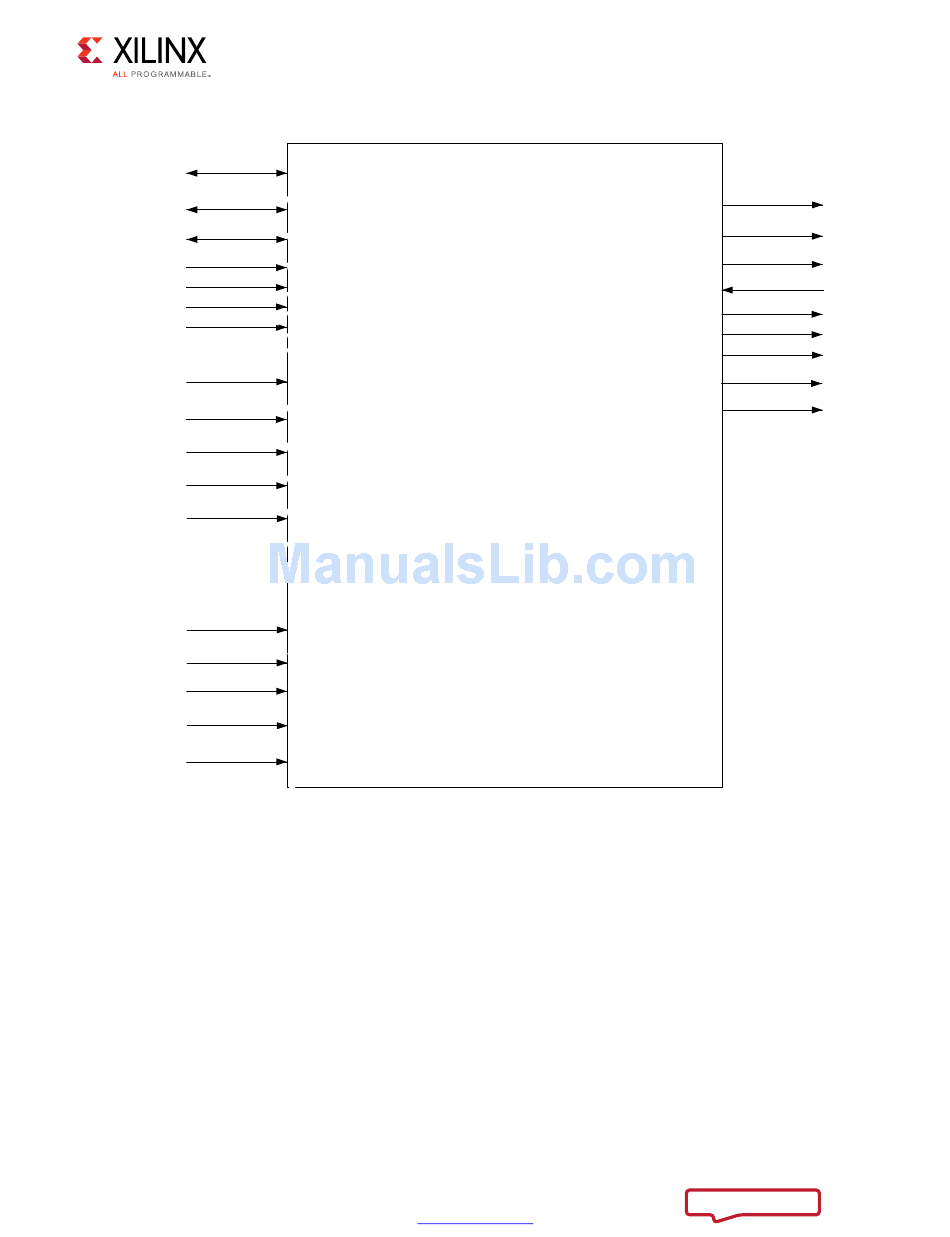

Figure 2‐17: HDMI TX Subsystem Pinout – Native Video Interface (HDCP 2.2 Only)
HDMI 1.4/2.0 TX Subsystem
PG235 October 4, 2017
S_AXI_CPU_IN
AUDIO_IN
VIDEO_IN
VIDEO_IN_tdata[3*BPC*PPC-1:0]
VIDEO_IN_active_video
VIDEO_IN_hsync
VIDEO_IN_vsync
SB_STATUS_IN
s_axi_cpu_aclk
s_axi_cpu_aresetn
s_axis_audio_aclk
s_axis_audio_aresetn
acr_cts[19:0]
acr_n[19:0]
acr_valid
video_clk
hpd
www.xilinx.com
Chapter 2: Product Specification
LINK_DATA0_OUT
LINK_DATA1_OUT
LINK_DATA2_OUT
link_clk
DDC_OUT
irq
video_rst
hdcp22_irq
hdcp22_timer_irq
