3. Open a terminal window (115200, 8, N, 1) and set the COM port to the one
communicating with the KCU105 board system controller.
4. After the UART terminal is connected, power cycle the KCU105 board to refresh the
system controller menu in the UART terminal. Select this option in the system controller
menu:
a. Adjust FPGA Mezzanine Card (FMC) Settings.
5. In the next menu, select:
a. Set FMC VADJ to 1.8V.
b.

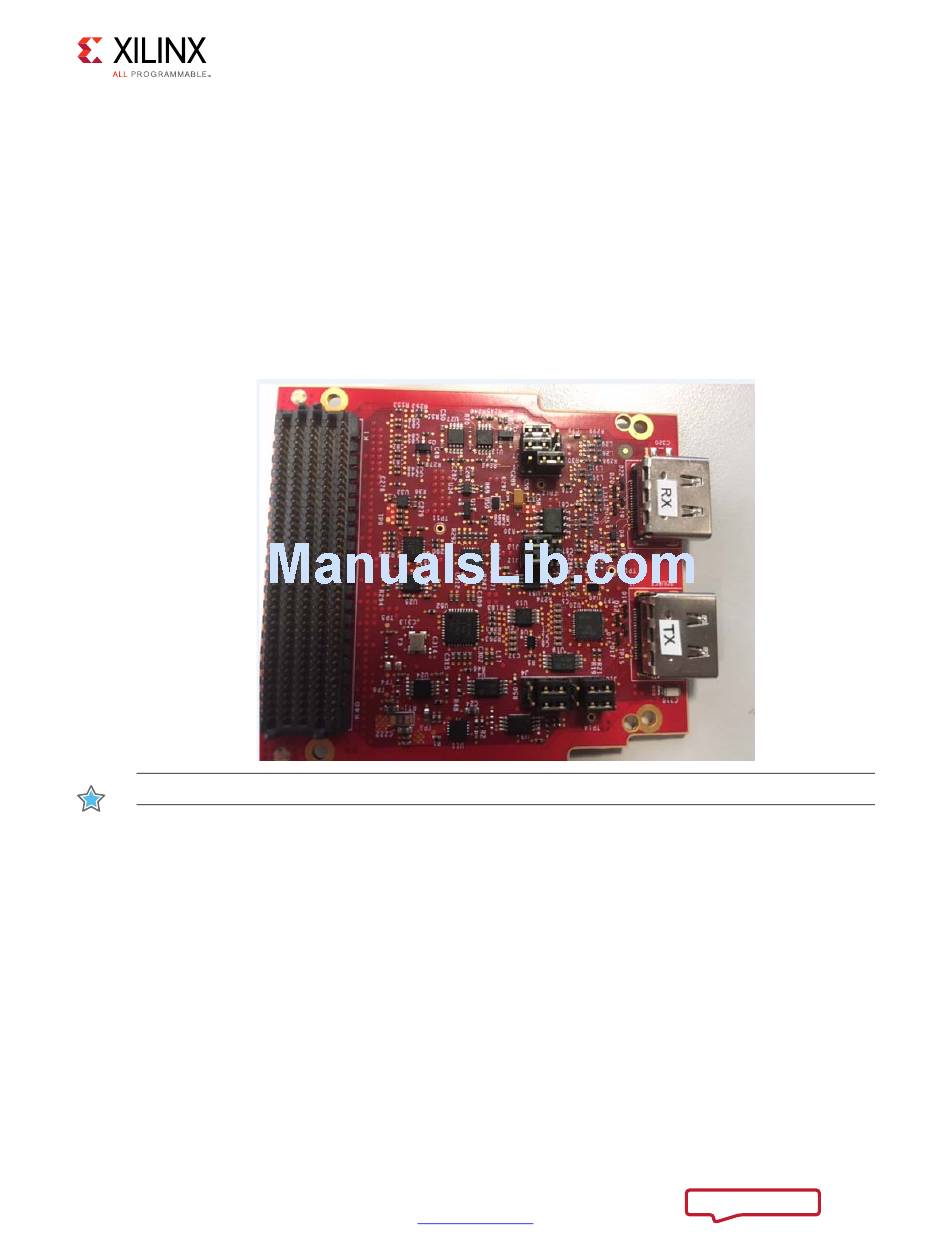

X-Ref Target - Figure 5-12
Ensure that the jumpers are set correctly on their HDMI 2.0 FMC daughter card.
IMPORTANT:
Migration Notes
When migrating from version 2016.3 or earlier, make note of the following:
• Hot Plug Detect Active has been added to HDMI 1.4/2.0 Transmitter Subsystem GUI.
Choose High in the Example Design (according to board design).
• Hot Plug Detect Active has been added to HDMI 1.4/2.0 Receiver Subsystem GUI.
Choose Low in Example Design (according to board design).
• Cable Detect Active has been added to HDMI 1.4/2.0 Receiver Subsystem GUI.
HDMI 1.4/2.0 TX Subsystem
