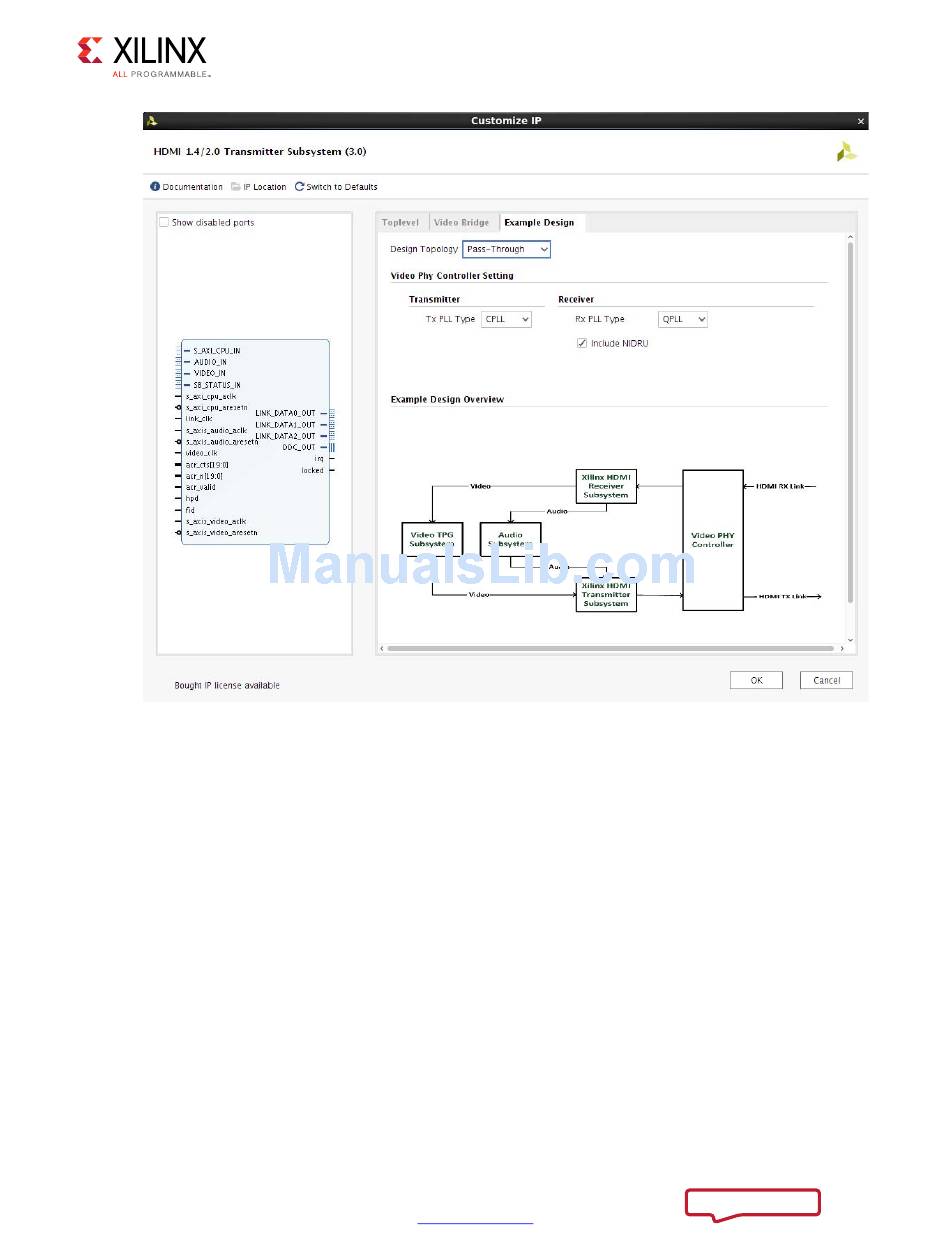

X-Ref Target - Figure 5-9
The Generate Output Products dialog box appears.
7. Click on Generate.
a. You may optionally click Skip if you just want to generate the example design.
8. Right click on the HDMI 1.4/2.0 Transmitter Subsystem component under Design source,
and click Open IP Example Design.
9. Choose the target project location, then click OK.
The IPI Design is then generated. You may choose to Run Synthesis, Implementation, or
Generate Bitstream.
An overall system IPI block diagram of the KC705 based example design is shown below.
HDMI 1.4/2.0 TX Subsystem
