Example Design Tab
The Example Design tab is shown in
X-Ref Target - Figure 4-3
Design Topology: Allows you to choose the topology of example design to be generated.
The allowable options are Pass-Through and Tx Only.
where,
• Pass-Through showcases the HDMI system built with one HDMI TX Subsystem and one
HDMI RX Subsystem, sharing the same Video PHY Controller.
• Tx Only showcases the HDMI system built with only one HDMI TX Subystem and Video
PHY Controller. A Frame CRC helper core is added to the Tx Only topology to facilitate
system monitor and debugging.
HDMI 1.4/2.0 TX Subsystem
PG235 October 4, 2017
Figure 4-3.

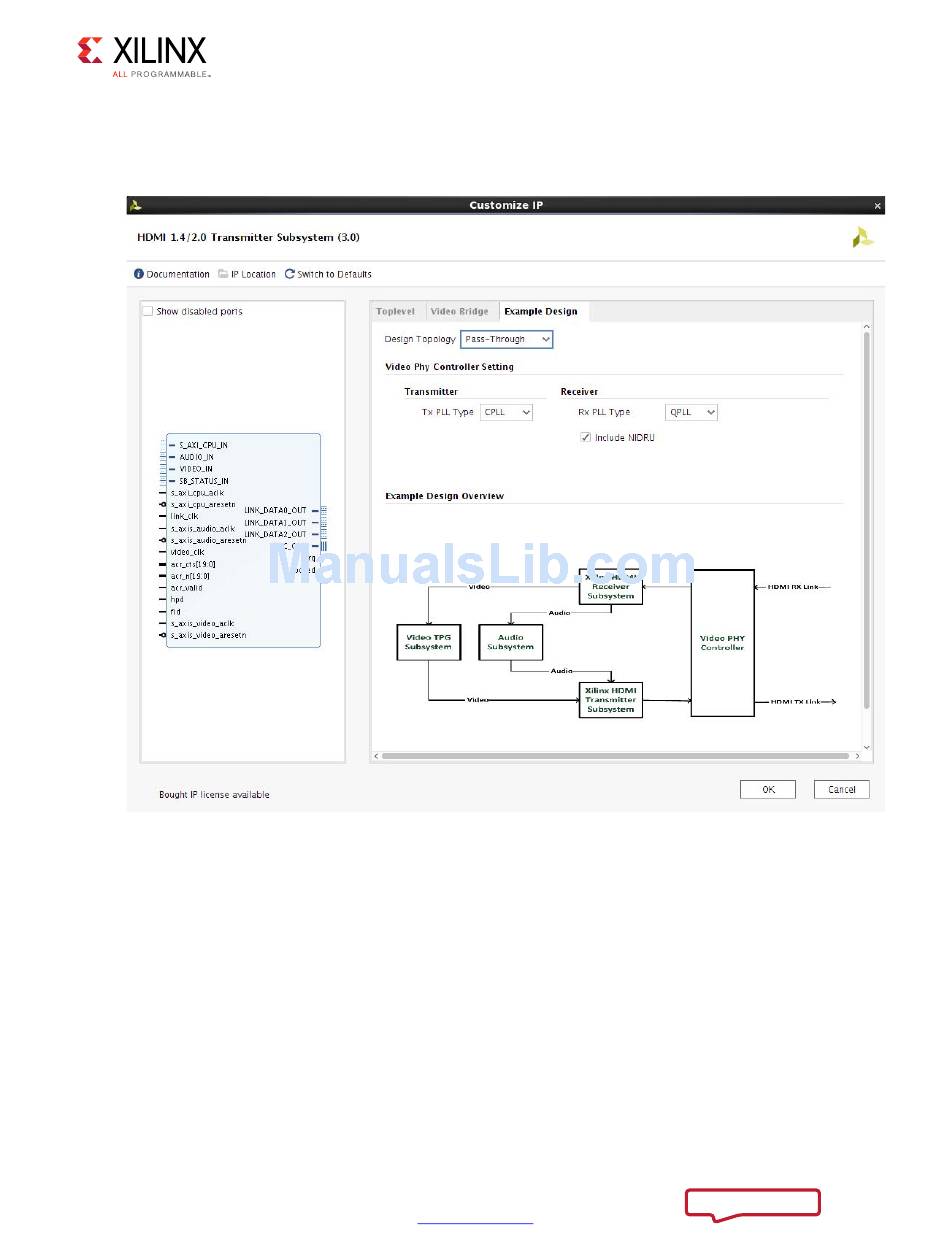

Figure 4‐3: Example Design Tab
