The CHS2U GW chassis has three universal blade slots for station, trunk and optional

blades.The chassis can be wall-mounted or stand-mounted. The first part of the this

chapter describes the differing types of mounting options and the rest of this section

describes how to install the chassis.

System Hardware Manual

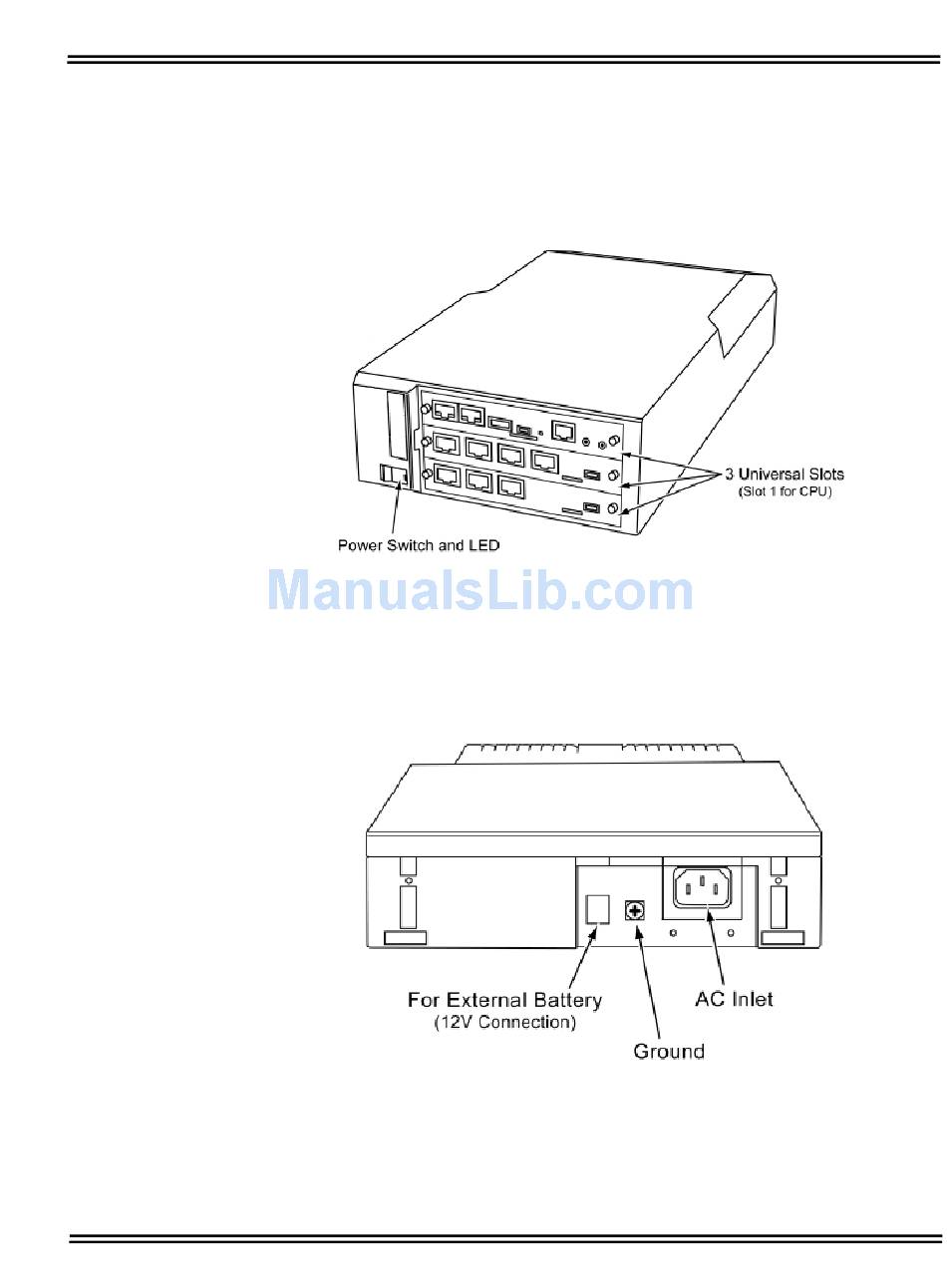

Figure 3-3 CHS2U GW (Front View)

Figure 3-4 CHS2U GW (Rear View)
