Issue 7.0
5 - 70
3.
Attach the WM-L UNIT to the wall using four screws (refer to
Figure 5-80 Attach the WM-L UNIT to
4.
Align the four cutouts with the four tabs on the WM-L UNIT
(refer to
Figure 5-81 Cutouts for WM-L
Cutouts
Installing DT300/DT700 Series (DTL/ITL) Digital and IP Multiline Terminals
Screws
Screws

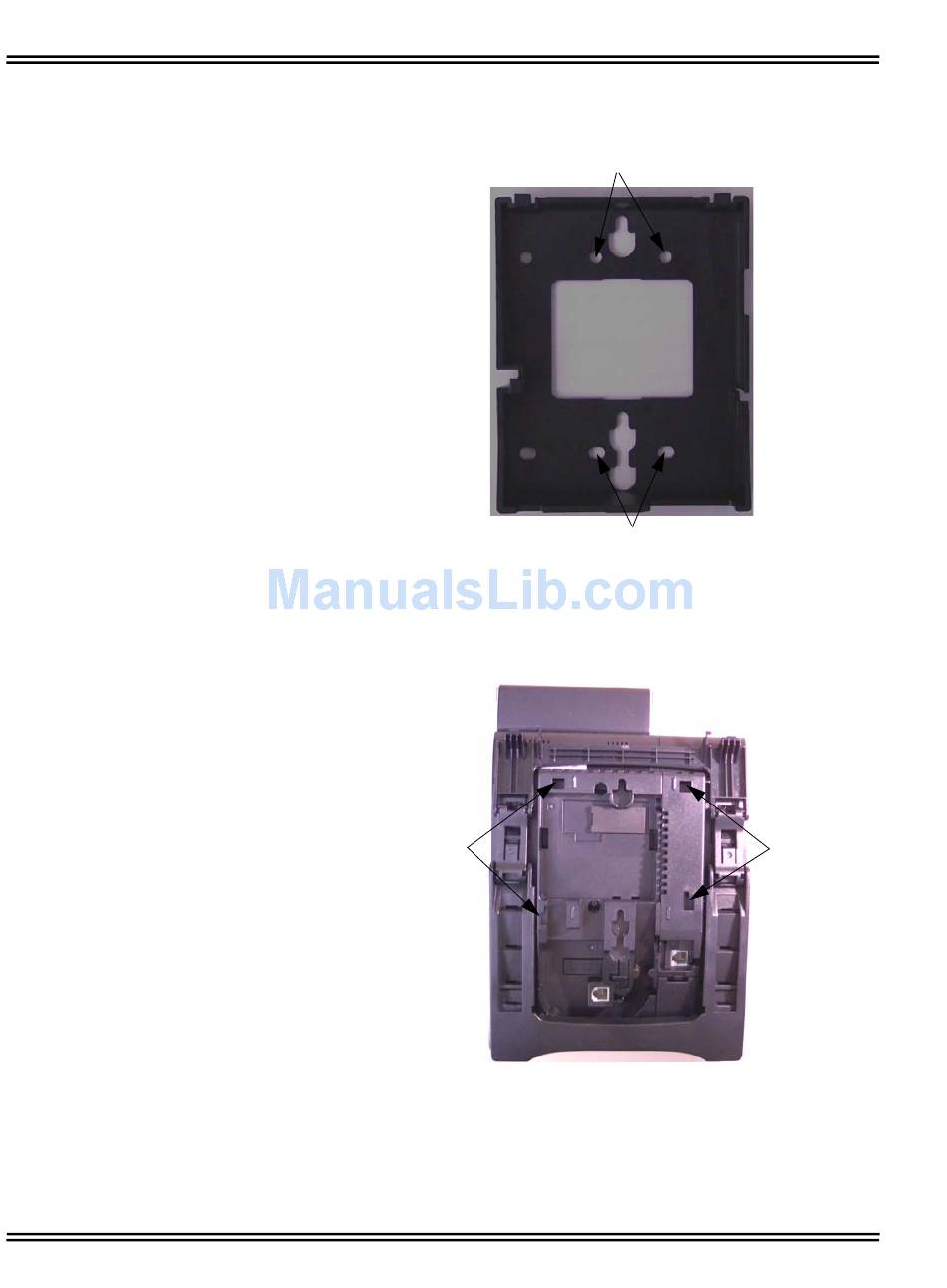

Figure 5-80 Attach the WM-L UNIT to Wall
Figure 5-81 Cutouts for WM-L UNIT
UNIVERGE SV8100
Wall).
UNIT).
Cutouts
