Configuring the DC Analog Module
Procedure:
Step
Configuring
10
the ADAM-
4017+
(continued)
11
GE Information
, continued
Select the ADAM-4017+ device in the left-hand pane.

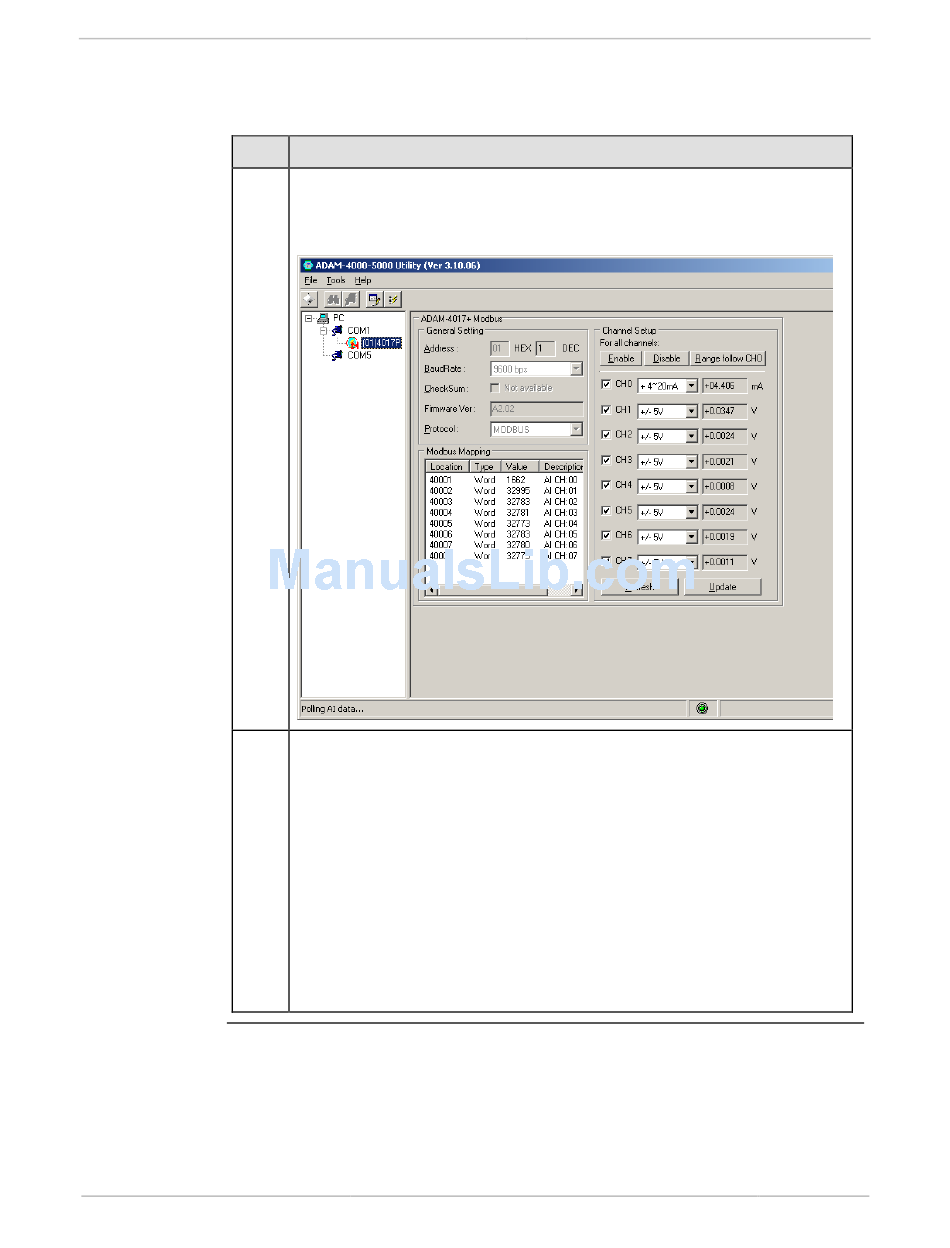

Result: The ADAM-4017+ configuration displays in the right-hand
pane:
Make the desired changes.
Note: You can change the characteristics of individual analog points, or
make the same change to all analog points. Refer to the ADAM-
4000 Utility Online Help for further information. To access this
online help, your PC must be connected to the Internet.
Note: If you are changing the ADAM-4017+ input range from voltage to
current, or vice versa, you will need to power down the device,
remove its cover, and change the jumper setting for the analog
input(s). For detailed instructions and settings, refer to the ADAM
4000 Data Acquisition Modules User's Manual – Available from
the Advantech CD that shipped with your iBox (accessible
through Manual > ADAM 4000 > ADAM-4000.pdf)
