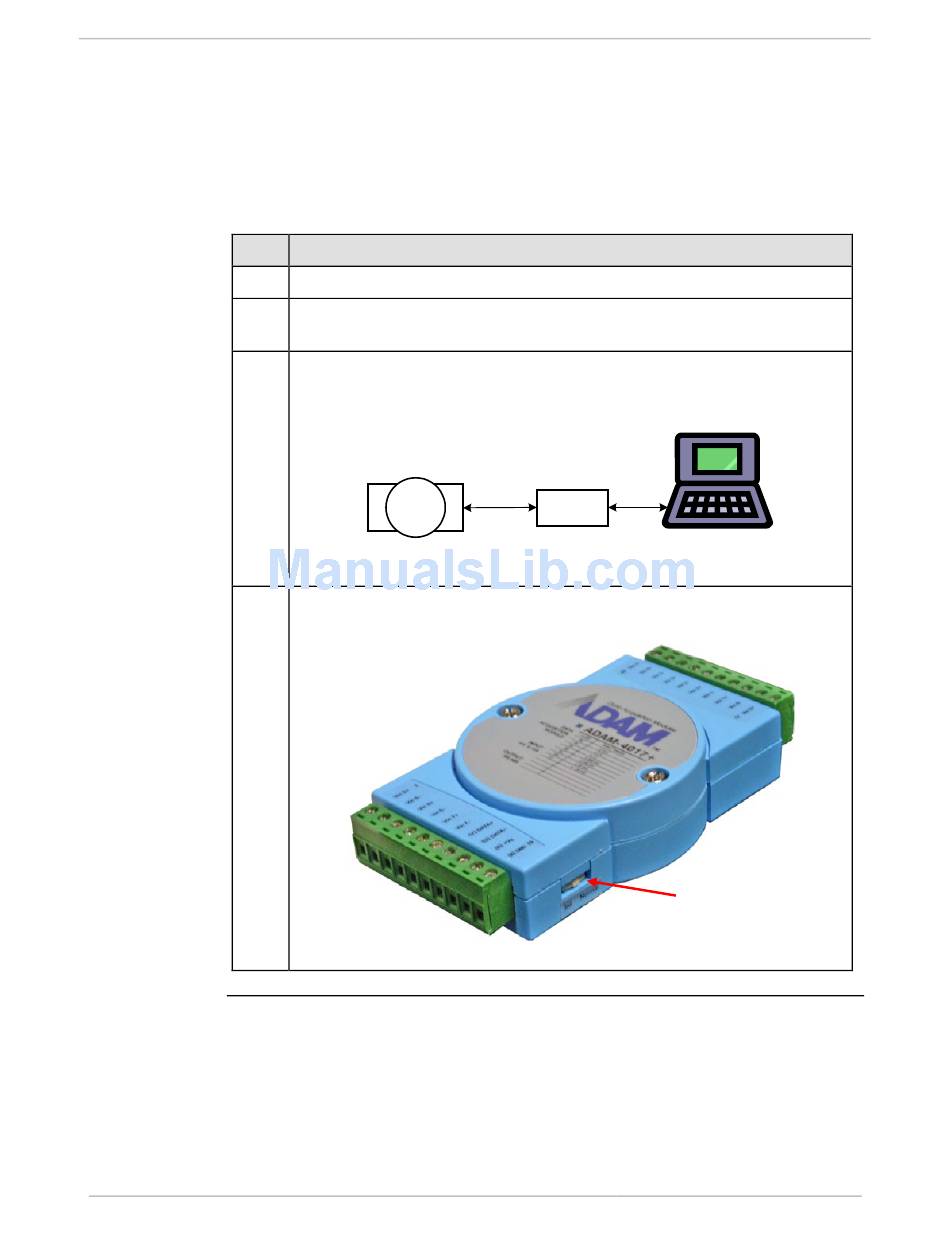

GE iBox Installation And Maintenance Manual page 124

iBox/iBox Kit
Installation and Maintenance Guide
Configuring the DC Analog Module
Procedure: If you want to change the configuration of some or all of the analog inputs, follow
Configuring the procedure below. If necessary, refer to the procedures in the vendor's manual.
the ADAM-
4017+
Step
1
2
3
4
124
, continued
Power down the iBox Kit.
Disconnect the cable between the ADAM-4017+ and iBox COM2, at the
ADAM-4017+ end.
Connect the RS-485 side of the RS-485/RS-232 converter to the DATA+
and DATA- terminals on the ADAM-4017+. Connect the RS-232 side of
the converter to one of your PC's COM ports.
RS-485
ADAM-4017+
Switch the operating mode of the ADAM-4017+ from Normal to Init,
then restore power to the unit:
994-0047-5.10-4
Action
RS-232
PC running
RS-485/RS-232
ADAM-4000
Converter
Init/Normal
Switch
