5 Removing and replacing modules

5.4 UV flow cell

5.4

UV flow cell

Instructions
Follow the instructions below to remove and replace the UV flow cell.
Step
1
2
3
4
122
Action
Disconnect the inlet and outlet tubing from the UV Monitor.

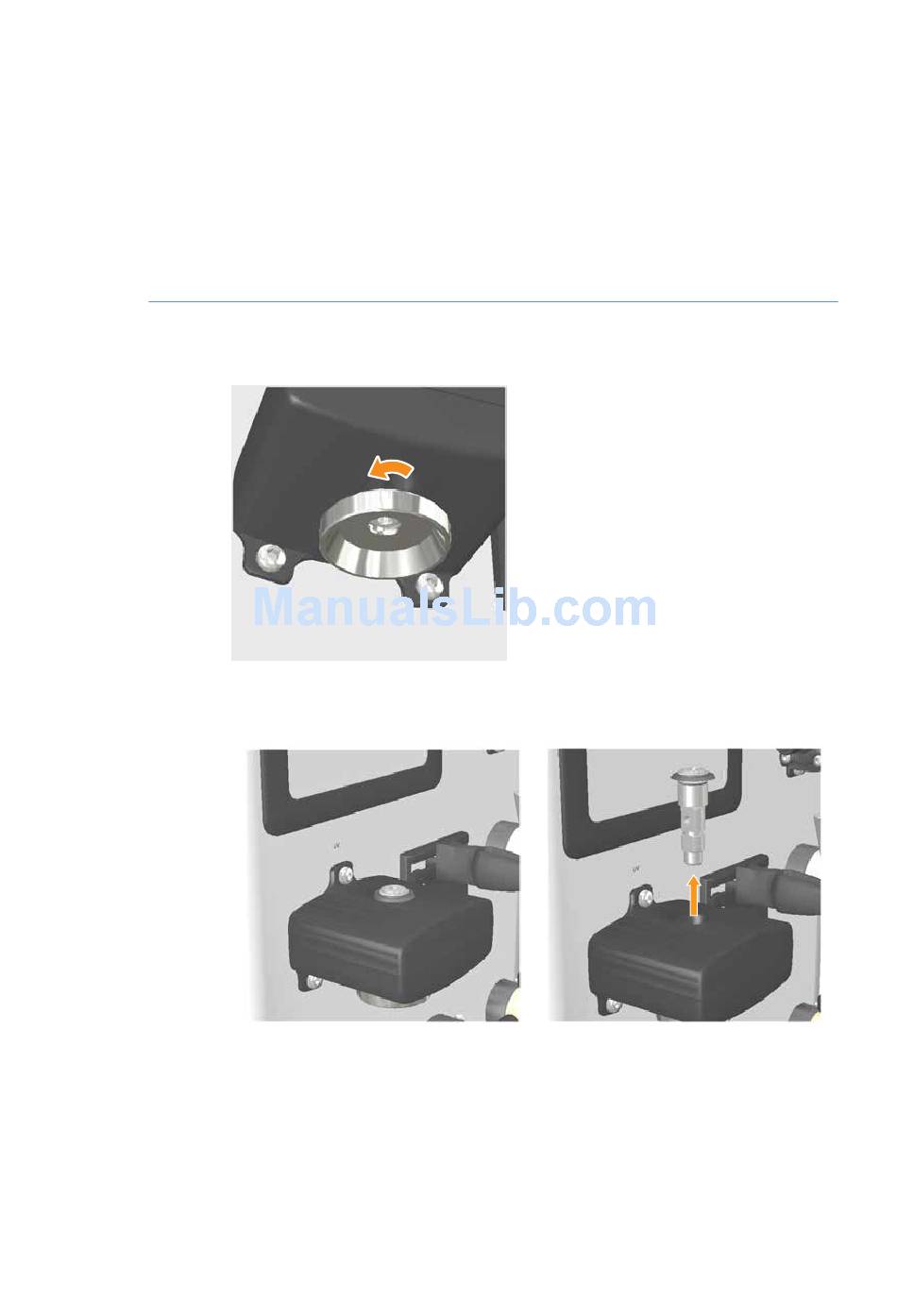

Rotate the locknut in the anticlockwise direction.
Pull up the UV flow cell.
Put a new UV flow cell in place from above so that it fits in properly, and si-
multaneously tighten the locknut.
ÄKTA start Maintenance Manual 29060308 AD
