5 Removing and replacing modules
5.9 Injection valve kit

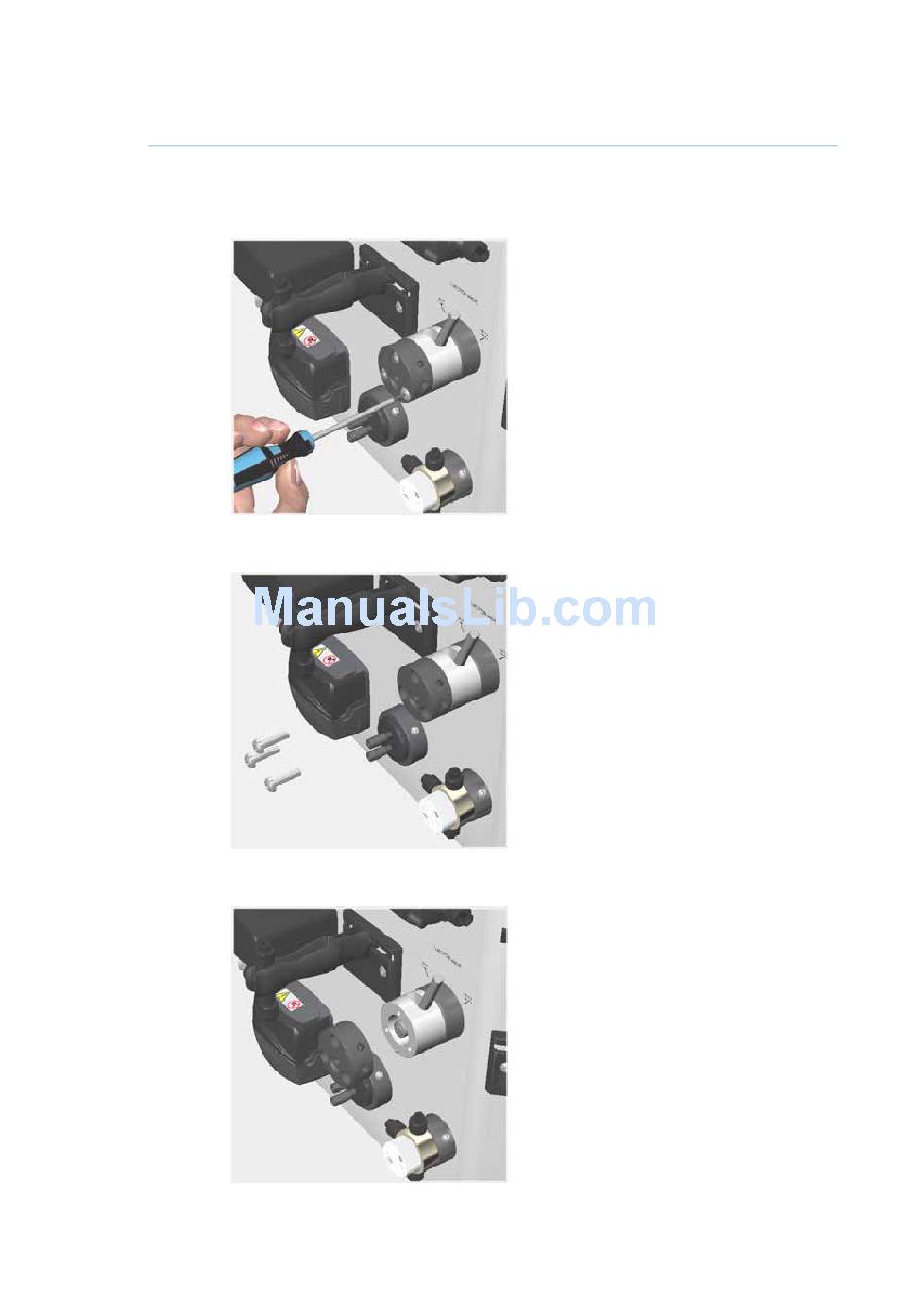

Step
2
3
4
140
Action
Remove the 3 screws on the front side, using the supplied torx driver. Loosen
each screw equally in turn, so the distribution plate comes off in parallel to
the valve body.
Slide the screws out.
Remove the distribution plate containing the ports.
ÄKTA start Maintenance Manual 29060308 AD
