2 System description
2.1 System overview
Part
5
Illustration of the Fraction
collector

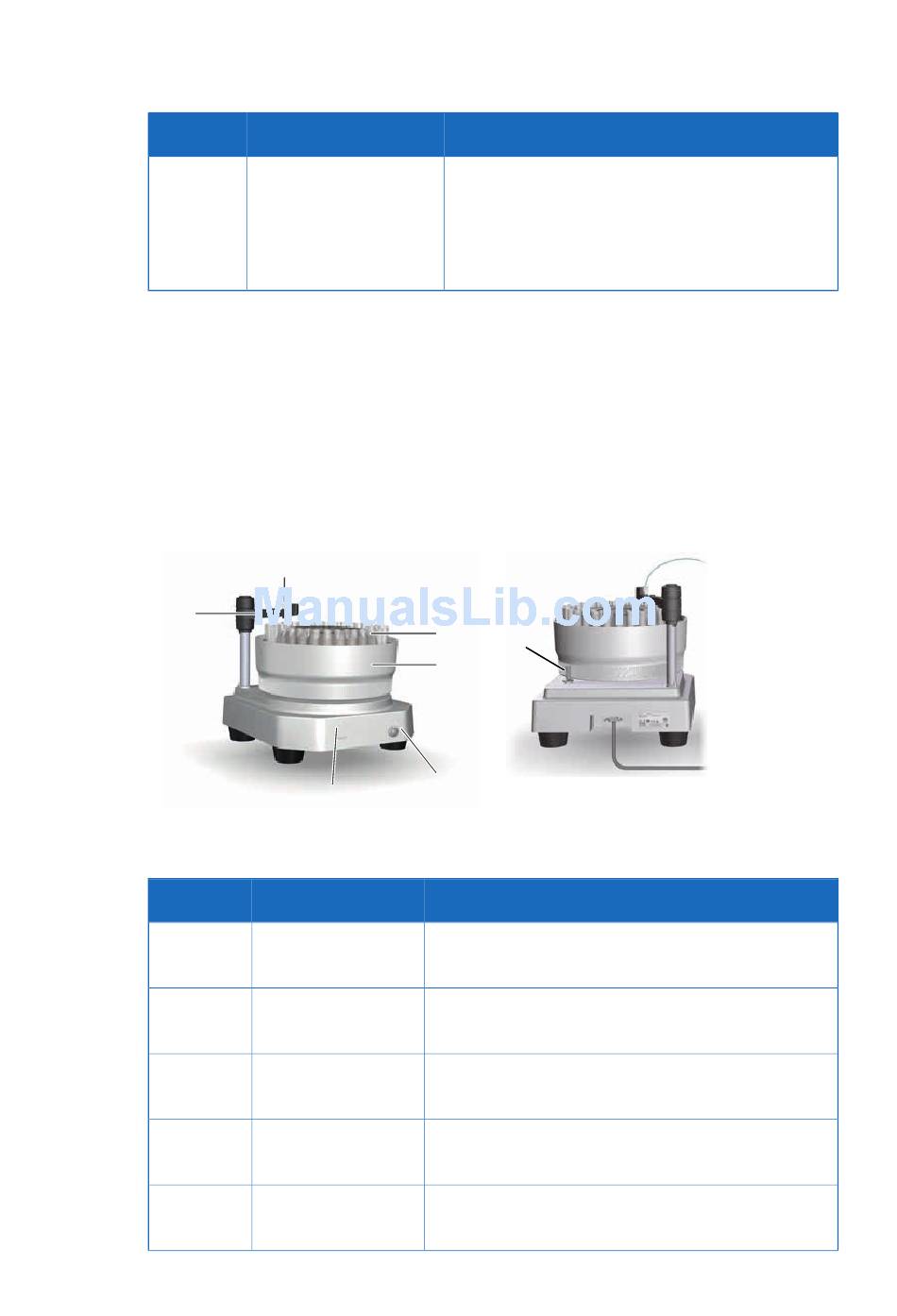

The illustration below shows the Fraction collector (Frac30), showing the front and rear
views.
Note:
Front side view
Part
1
2
3
4
5
16
Description
USB port
ÄKTA start does not support fractionation with any fraction collector other
than Frac30.
2
1
6
Description
Dispenser arm
assembly
Tubing holder
Collection tubes
Bowl assembly
Base unit
Function
To connect a USB memory stick for storage of
results and transfer of files.
Note:
USB hard drives are not supported.
3
7
4
5
Rear view
Function
Holds and positions the tubing holder for dispens-
ing the liquid into fractions.
Holds the tubing used for dispensing the liquid
fractions into the collection tubes.
10 to 18 mm diameter tubes used to collect the
fractions.
Holder for collection tubes, which supports tubes
of four sizes.
Case for electromechanical assembly and holder
for the Bowl assembly.
ÄKTA start Maintenance Manual 29060308 AD
