5 Removing and replacing modules
5.10 Frac30 Bowl assembly
5.10 Frac30 Bowl assembly
Remove the Bowl assembly
Follow the instructions below to remove the Frac30 Bowl assembly.
Step
1
2
142
Action

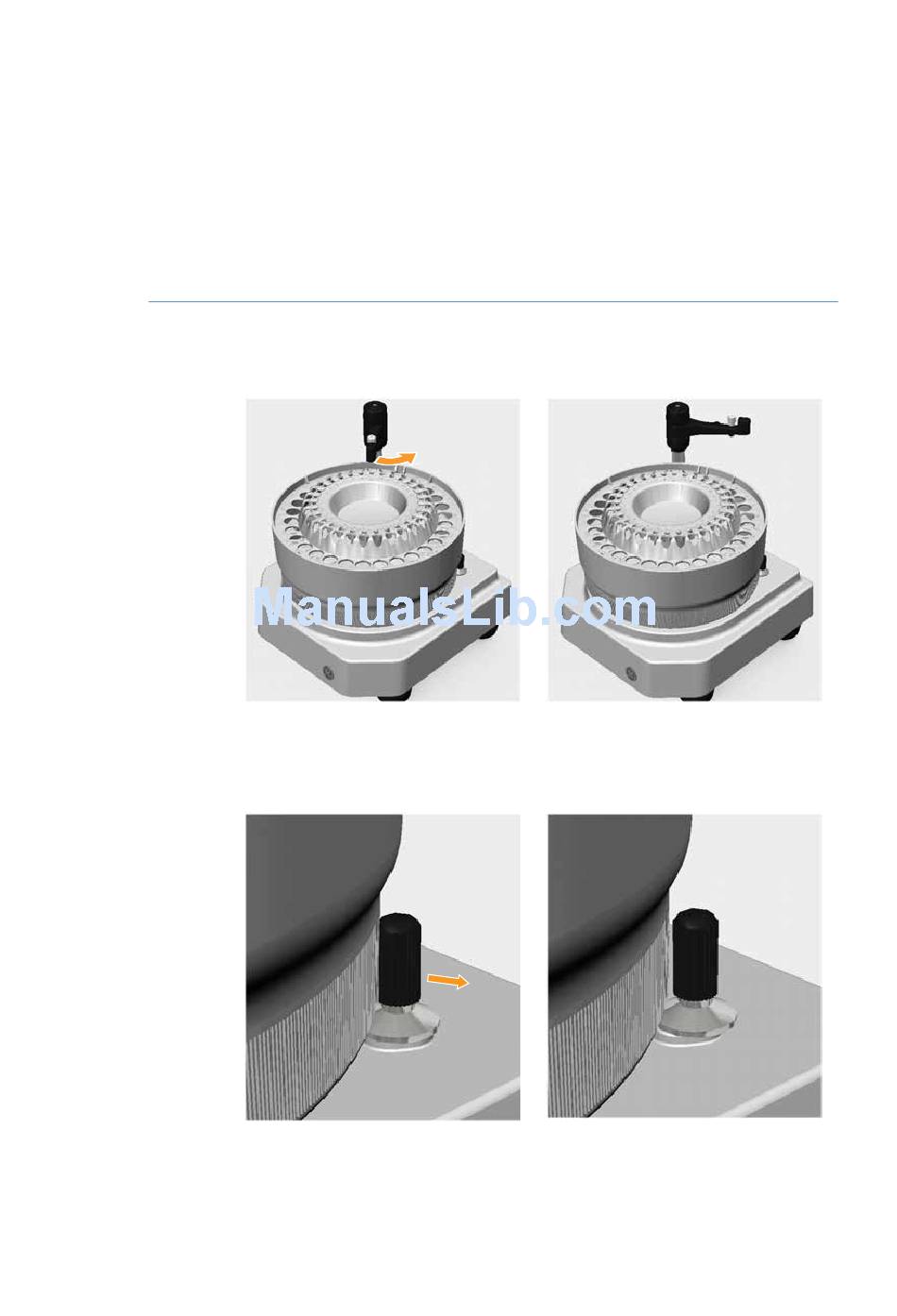

Gently move the Dispenser arm counterclockwise to the non-dispensing
(end) position.
Push the drive assembly laterally and hold it at the retracted position.
ÄKTA start Maintenance Manual 29060308 AD
