Step
4
5
ÄKTA start Maintenance Manual 29060308 AD
Action

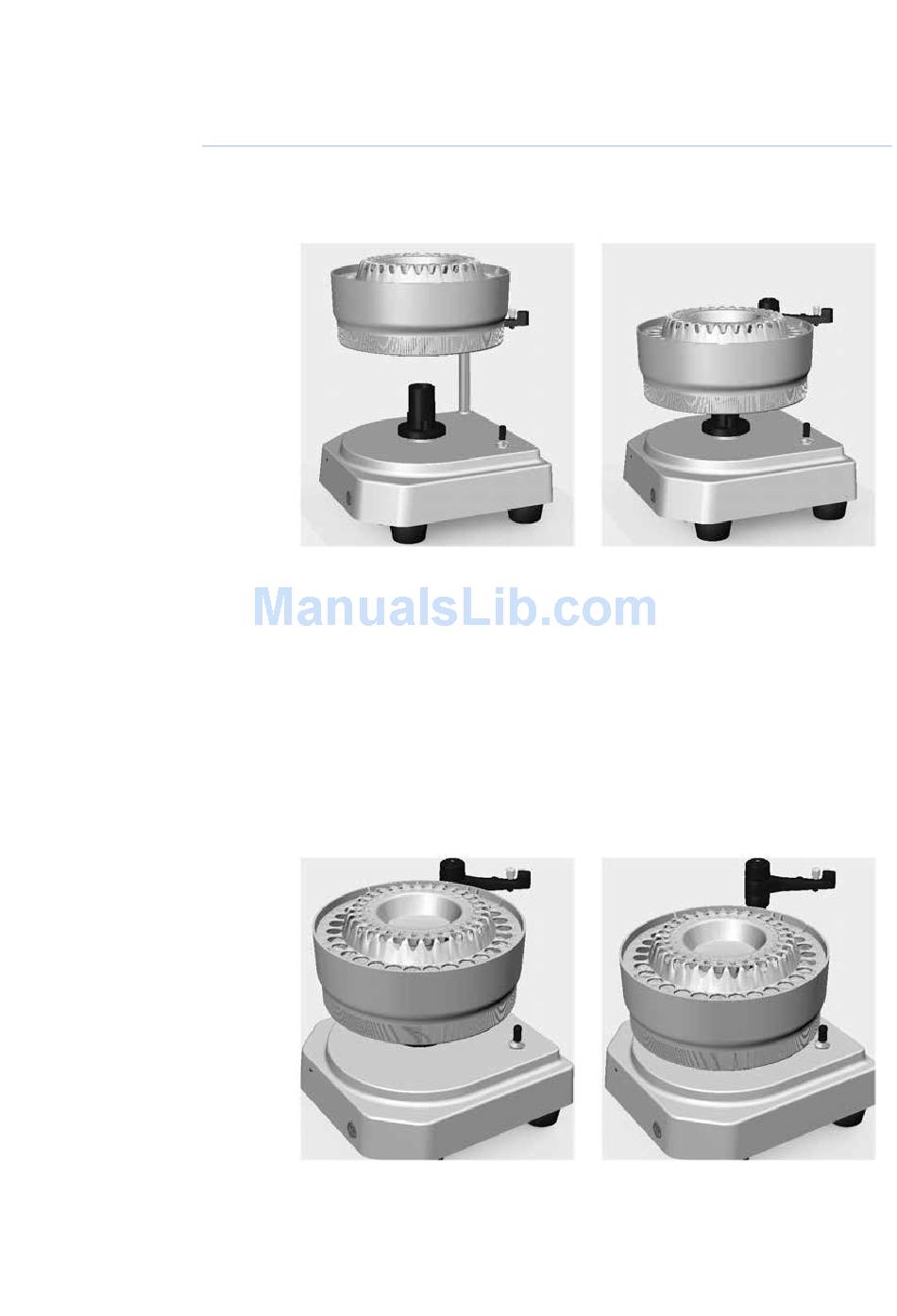

Hold the Bowl assembly and orient the Bowl with the aligning ribs oriented
towards the aligning groove on the Bowl holder.
Note:
Do not lift the fraction collector by holding the Dispenser arm.
Tip:
If it is hard to locate the alignment feature in corresponding parts, hold the
Bowl assembly near the top of the Bowl holder and rotate the Bowl holder
until the aligning ribs are located.
After locating the aligning features, leave the Bowl to slide freely into the
Bowl holder.
5 Removing and replacing modules
5.10 Frac30 Bowl assembly
145
