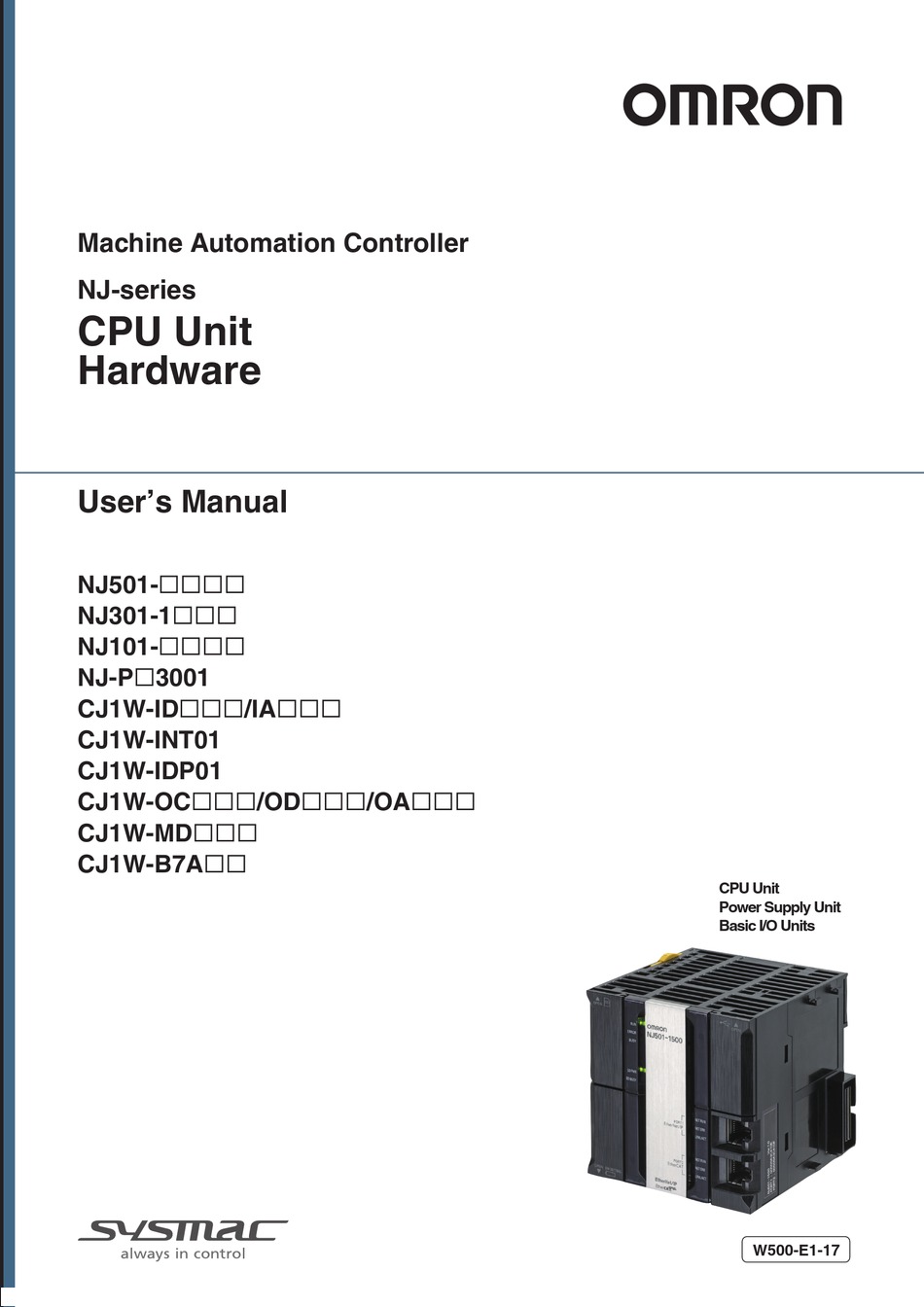

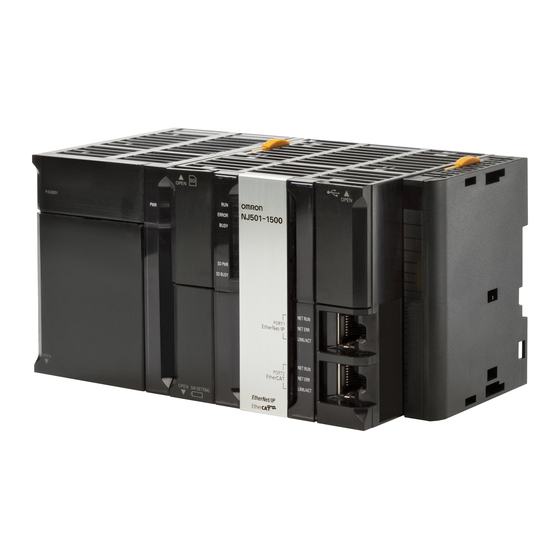

Machine Automation Controller
NJ-series
CPU Unit
Hardware
User's Manual
NJ501-
NJ301-1
NJ101-
NJ-P3001
CJ1W-ID/IA
CJ1W-INT01
CJ1W-IDP01
CJ1W-OC/OD/OA
CJ1W-MD
CJ1W-B7A
CPU Unit
Power Supply Unit
Basic I/O Units
W500-E1-17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NJ501-1400 and is the answer not in the manual?

Questions and answers

Related Manuals for Omron NJ501-1400

Summary of Contents for Omron NJ501-1400

  • Page 1 Machine Automation Controller NJ-series CPU Unit Hardware User’s Manual NJ501- NJ301-1 NJ101- NJ-P3001 CJ1W-ID/IA CJ1W-INT01 CJ1W-IDP01 CJ1W-OC/OD/OA CJ1W-MD CJ1W-B7A CPU Unit Power Supply Unit Basic I/O Units W500-E1-17...
  • Page 2 No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Neverthe- less, OMRON assumes no responsibility for errors or omissions.

  • Page 3: Introduction

    Introduction Introduction Thank you for purchasing an NJ-series CPU Unit. This manual contains information that is necessary to use the NJ-series CPU Unit. Please read this manual and make sure you understand the functionality and performance of the NJ-series CPU Unit before you attempt to use it in a control system.

  • Page 4: Relevant Manuals

    Relevant Manuals Relevant Manuals The following table provides the relevant manuals for the NJ-series CPU Units. Read all of the manuals that are relevant to your system configuration and application before you use the NJ-series CPU Unit. Most operations are performed from the Sysmac Studio Automation Software. Refer to the Sysmac Stu- dio Version 1 Operation Manual (Cat.

  • Page 5: Manual Structure

    Manual Structure Manual Structure Page Structure The following page structure is used in this manual. Level 1 heading 4 Installation and Wiring Level 2 heading Mounting Units Level 3 heading Level 2 heading Gives the current headings. Level 3 heading 4-3-1 Connecting Controller Components The Units that make up an NJ-series Controller can be connected simply by pressing the Units together...
  • Page 6 Manual Structure Special Information Special information in this manual is classified as follows: Precautions for Safe Use Precautions on what to do and what not to do to ensure safe usage of the product. Precautions for Correct Use Precautions on what to do and what not to do to ensure proper operation and performance. Additional Information Additional information to read as required.

  • Page 7: Sections In This Manual

    Sections in this Manual Sections in this Manual Introduction to NJ-series Controllers System Configuration Configuration Units Installation and Wiring Troubleshooting Inspection and Maintenance Appendices Index NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 8: Table Of Contents

    CONTENTS CONTENTS Introduction ....................... 1 Relevant Manuals ...................... 2 Manual Structure ....................... 3 Sections in this Manual .................... 5 Terms and Conditions Agreement................. 10 Safety Precautions ....................12 Precautions for Safe Use..................17 Precautions for Correct Use................... 27 Regulations and Standards ..................31 Versions ........................
  • Page 9 CONTENTS 3-2-1 Models and Specifications ......................3-10 3-2-2 Purpose ............................ 3-10 3-2-3 Installing and Removing ......................3-12 Power Supply Units ....................... 3-14 3-3-1 Models and Specifications ......................3-14 3-3-2 Components and Functions...................... 3-16 3-3-3 Selecting a Power Supply Unit ....................3-17 CJ-series Basic I/O Units ......................
  • Page 10 CONTENTS Section 5 Troubleshooting Operation after an Error ......................5-2 5-1-1 Overview of NJ-series Status ...................... 5-2 5-1-2 Fatal Errors in the CPU Unit......................5-3 5-1-3 Non-fatal error in CPU Unit ......................5-4 Troubleshooting ........................5-11 5-2-1 Checking to See If the CPU Unit Is Operating ................5-11 5-2-2 Troubleshooting Flowchart for Non-fatal Errors ................
  • Page 11 CONTENTS NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 12: Terms And Conditions Agreement

    Omron’s exclusive warranty is that the Products will be free from defects in materials and workman- ship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
  • Page 13 Disclaimers Performance Data Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements. Actual perfor- mance is subject to the Omron’s Warranty and Limitations of Liability.

  • Page 14: Safety Precautions

    Safety Precautions Safety Precautions Definition of Precautionary Information The following notation is used in this manual to provide precautions required to ensure safe usage of an NJ-series Controller. The safety precautions that are provided are extremely important to safety. Always read and heed the information provided in all safety precautions.
  • Page 15 Safety Precautions Symbols The circle and slash symbol indicates operations that you must not do. The specific operation is shown in the circle and explained in text. This example indicates prohibiting disassembly. The triangle symbol indicates precautions (including warnings). The specific operation is shown in the triangle and explained in text. This example indicates a precaution for electric shock.
  • Page 16 Safety Precautions Warnings WARNING During Power Supply Do not touch any of the terminals or terminal blocks while the power is being supplied. Doing so may result in electric shock. Do not attempt to take any Unit apart. In particular, high-voltage parts are present in the Power Supply Unit while power is supplied or immediately after power is turned OFF.
  • Page 17 Safety Precautions Unintended outputs may occur when an error occurs in variable memory or in memory used for CJ-series Units. As a countermeasure for such prob- lems, external safety measures must be provided to ensure safe operation of the system. Provide measures in the communications system and user program to ensure safety in the overall system even if errors or malfunctions occur in data link communications or remote I/O communications.
  • Page 18 Safety Precautions Cautions Caution Application Do not touch any Unit when power is being supplied or immediately after the power supply is turned OFF. Doing so may result in burn injury. Wiring Be sure that all terminal screws and cable connector screws are tightened to the torque specified in the relevant manuals.

  • Page 19: Precautions For Safe Use

    Precautions for Safe Use Precautions for Safe Use Disassembly and Dropping • Do not attempt to disassemble, repair, or modify any Units. Doing so may result in malfunction or fire. • Do not drop any Unit or subject it to abnormal vibration or shock. Doing so may result in Unit malfunc- tion or burning.
  • Page 20 Precautions for Safe Use Power Supply Design • Do not exceed the rated supply capacity of the Power Supply Units in the NJ-series Controller. The rated supply capacities are given in the NJ-series CPU Unit Hardware User’s Manual (Cat. No. W500).
  • Page 21 Precautions for Safe Use Turning ON the Power Supply • It takes up to approximately 10 to 20 s to enter RUN mode after the power is turned ON. The outputs during this time behave according to the slave or Unit specifications. Use the RUN output on the Power Supply Unit, for example, to implement fail-safe circuits so that external devices do not oper- ate incorrectly.
  • Page 22 Precautions for Safe Use Operation • Confirm that no adverse effect will occur in the system before you attempt any of the following. • Changing the operating mode of the CPU Unit (including changing the setting of the Startup Mode) •...
  • Page 23 Precautions for Safe Use Battery Backup • The user program and initial values for the variables are stored in non-volatile memory in the CPU Unit. The present values of variables with the Retain attribute and the values of the Holding, DM, and EM Areas in the memory used for CJ-series Units are backed up by a Battery.
  • Page 24 Precautions for Safe Use General Communications • When you use data link communications, check the error information that is given in _ErrSta (Control- ler Error Status) to make sure that no error has occurred in the source device. Create a user program that uses reception data only when there is no error in the source device.
  • Page 25 Precautions for Safe Use EtherCAT Communications • Make sure that the communications distance, number of nodes connected, and method of connec- tion for EtherCAT are within specifications. Do not connect EtherCAT communications to EtherNet/IP, a standard in-house LAN, or other net- works.
  • Page 26 Precautions for Safe Use Motion Control • Confirm the axis number carefully before you perform an MC Test Run. • The motor is stopped if communications are interrupted between the Sysmac Studio and the CPU Unit during an MC Test Run. Connect the communications cable between the computer and CPU Unit securely and confirm that the system will not be adversely affected before you perform an MC Test Run.
  • Page 27 Precautions for Safe Use Restoring Data • You cannot back up, restore, or compare some or all of the settings for certain slaves and Units. Also, you cannot back up, restore, or compare data for disabled slaves or Units. After you restore data, suf- ficiently confirm that operation is correct before you start actual operation.
  • Page 28 Precautions for Safe Use Unit Replacement • Make sure that the required data, including the user program, configurations, settings, variables, and memory used for CJ-series Units, is transferred to a CPU Unit that was replaced and to externally connected devices before restarting operation. Be sure to include the tag data link settings, routing tables, and other CPU Bus Unit data, which are stored in the CPU Unit.

  • Page 29: Precautions For Correct Use

    Precautions for Correct Use Precautions for Correct Use Storage and Installation • Follow the instructions in this manual to correctly perform installation. • Do not operate or store the Controller in the following locations. Operation may stop or malfunctions may occur. •...
  • Page 30 Precautions for Correct Use Wiring • Do not allow foreign matter to enter the openings in the Unit. Doing so may result in Unit burning, electric shock, or failure. • Do not allow wire clippings, shavings, or other foreign material to enter any Unit. Otherwise, Unit burning, failure, or malfunction may occur.
  • Page 31 Precautions for Correct Use Transferring Programs • If you use the program transfer from SD Memory Card, set to enter the password for each execution to prevent an unexpected program transfer. Replacing Slaves and Units • If you replace a slave or Unit, refer to the operation manual for the slave or Unit for information on the data required for individual slaves or Units and redo the necessary settings.
  • Page 32 If there is a corrupted file in the SD Memory Card, the file is automatically deleted by the restoration function when the power supply is turned ON. • If you use an OMRON SD Memory Card, the end of the life of the SD Memory Card can be detected in the following ways.

  • Page 33: Regulations And Standards

    Concepts  EMC Directive OMRON devices that comply with EU Directives also conform to the related EMC standards so that they can be more easily built into other devices or the overall machine. The actual products have been checked for conformity to EMC standards.* Whether the products conform to the standards in the system used by the customer, however, must be checked by the customer.
  • Page 34 The NJ-series Controllers comply with the following shipbuilding standards. Applicability to the ship- building standards is based on certain usage conditions. It may not be possible to use the product in some locations. Contact your OMRON representative before attempting to use a Controller on a ship.

  • Page 35: Versions

    Versions Versions Hardware revisions and unit versions are used to manage the hardware and software in NJ-series Units and EtherCAT slaves. The hardware revision or unit version is updated each time there is a change in hardware or software specifications. Even when two Units or EtherCAT slaves have the same model number, they will have functional or performance differences if they have different hardware revisions or unit versions.
  • Page 36 Versions Checking Unit Versions with the Sysmac Studio You can use the Sysmac Studio to check unit versions. The procedure is different for Units and for Eth- erCAT slaves.  Checking the Unit Version of a Unit You can use the Production Information while the Sysmac Studio is online to check the unit version of a Unit.
  • Page 37 Versions  Checking the Unit Version of an EtherCAT Slave You can use the Production Information while the Sysmac Studio is online to check the unit version of an EtherCAT slave. Use the following procedure to check the unit version. Double-click EtherCAT under Configurations and Setup in the Multiview Explorer.

  • Page 38: Related Manuals

    Related Manuals Related Manuals The followings are the manuals related to this manual. Use these manuals for reference. Manual name Cat. No. Model numbers Application Description NJ-series CPU Unit W500 NJ501- Learning the basic specifi- An introduction to the entire NJ-series system is Hardware User’s Manual NJ301-...
  • Page 39 Related Manuals Manual name Cat. No. Model numbers Application Description NX-series EtherCAT® W519 NX-ECC Learning how to use an NX- The following items are described: the overall sys- Coupler Unit User’s Man- series EtherCAT Coupler tem and configuration methods of an EtherCAT Unit and EtherCAT Slave Slave Terminal (which consists of an NX-series Terminals.

  • Page 40: Terminology

    Terminology Terminology Term Description absolute encoder home offset This data is used to restore in the CPU Unit the actual position of a Servo Drive with an absolute encoder. The offset is the difference between the command position after homing and the absolute data that is read from the absolute encoder. array specification One of the variable specifications.
  • Page 41 ST programming that is included within a ladder diagram program. instruction The smallest unit of the processing elements that are provided by OMRON for use in POU algorithms. There are ladder diagram instructions (program inputs and out- puts), function instructions, function block instructions, and ST statements.
  • Page 42 Terminology Term Description local variable A variable that can be accessed only from inside the POU in which it is defined. “Local variable” is used as opposed to “global variable.” Local variables include internal variables, input variables, output variables, in-out variables, and external variables.
  • Page 43 Terminology Term Description program Along with functions and function blocks, one of the three types of POUs. Programs are assigned to tasks to execute them. Range Specification One of the variable specifications. You can specify a range for a variable in advance.
  • Page 44 Terminology Term Description variable memory A memory area that contains the present values of variables that do not have AT specifications. It can be accessed only with variables without an AT attribute. NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 45: Revision History

    Revision History Revision History A manual revision code appears as a suffix to the catalog number on the front and back covers of the manual. W500-E1-17 Cat. No. Revision code Revision code Date Revised content July 2011 Original production March 2012 •...
  • Page 46 Revision History NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 47: Introduction To Nj-Series Controllers

    Introduction to NJ-series Controllers This section describes the features, basic system configuration, specifications, and overall operating procedure of an NJ-series Controller. 1-1 The NJ-series Controllers ........1-2 1-1-1 Features .

  • Page 48: The Nj-Series Controllers

    They provide the safety, reliability, and maintainability that are required of industrial controllers. The NJ-series Controllers provide the functionality of previous OMRON PLCs, and they also provide the functionality that is required for motion control. Synchronized control of I/O devices on high-speed EtherCAT can be applied to safety devices, vision systems, motion equipment, discrete I/O, and more.
  • Page 49  Programming Languages Based on the IEC 61131-3 International Standard The NJ-series Controllers support language specifications that are based on IEC 61131-3. To these, OMRON has added our own improvements. Motion control instructions that are based on PLCo- ® standards and an instruction set (POUs) that follows IEC rules are provided.

  • Page 50: Introduction To The System Configurations

    1 Introduction to NJ-series Controllers  A Wealth of Security Features The many security features of the NJ-series Controllers include operation authority settings and restriction of program execution with IDs.  Complete Controller Monitoring The CPU Unit monitors events in all parts of the Controller, including mounted Units and EtherCAT slaves.
  • Page 51 1 Introduction to NJ-series Controllers CJ-series Unit Support Software Configuration Peripheral USB port Sysmac Studio NJ-series Controller CJ-series Units Power Supply Unit CPU Unit CPU Rack EtherNet/IP EtherCAT Network Configuration Built-in EtherNet/IP port EtherCAT Built-in EtherCAT port Servo Drive/encoder Slave Terminal General-purpose slaves input slaves Additional Information...
  • Page 52 1 Introduction to NJ-series Controllers Refer to the NJ/NX-series CPU Unit Software User’s Manual (Cat. No. W501) for details on the net- work configuration.  Support Software You can use the following Support Software to set up, monitor, and debug an NJ-series Controller. Sysmac Studio The Sysmac Studio is the main Support Software that you use for an NJ-series Controller.

  • Page 53: Specifications

    1 Introduction to NJ-series Controllers Specifications This section gives the main specifications of the NJ-series Controllers. NJ501- NJ301- NJ101- Item 12 11 10 90 5 4 3 2.0 ns (3.0 ns or less) 3.3 ns (5.0 ns or less) LD instruction 1.2 ns (1.9 ns or less) Instruction Process-...
  • Page 54 1 Introduction to NJ-series Controllers NJ501- NJ301- NJ101- Item 5 4 3 12 11 10 90 Supported services Sysmac Studio connection Periph- eral USB Physical layer USB 2.0-compliant B-type connector port Transmission distance 5 m max. Number of ports Physical layer 10BASE-T/100BASE-TX Frame length 1,514 bytes max.
  • Page 55 1 Introduction to NJ-series Controllers NJ501- NJ301- NJ101- Item 5 4 3 12 11 10 90 Communications standard IEC 61158 Type12 EtherCAT master specifications Class B (Feature Pack Motion Control compliant) Physical layer 100BASE-TX Modulation Baseband Baud rate 100 Mbps (100Base-TX) Duplex mode Auto Topology...
  • Page 56 1 Introduction to NJ-series Controllers Note Items that are marked with asterisks in the table are improvements that were made during version upgrades. Refer to A- 7 Version Information for information on version upgrades. 1-10 NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 57: Overall Operating Procedure For The Nj-Series Controller

    1 Introduction to NJ-series Controllers Overall Operating Procedure for the NJ-series Controller This section gives the overall operating procedure of the NJ-series Controllers and then describes it in more detail. 1-3-1 Overall Procedure The overall procedure to use an NJ-series Controller is given below. Step 1.

  • Page 58: Procedure Details

    1 Introduction to NJ-series Controllers 1-3-2 Procedure Details Step 1. Software Design Step Description Reference • External I/O devices and unit configuration Step 1-1 Section 3 Configuration • Refresh periods for external devices Units (page 3-1) Designing I/O and • Program contents Processing •...
  • Page 59 1 Introduction to NJ-series Controllers The following Controller Configurations and Setup and the Programming and Task Settings can be performed in either order. Step 2-1 Slave and Unit Configurations 1. Creating the slave configuration and 1) Creating the Slave EtherCAT Slave Set- NJ/NX-series CPU Unit Unit configuration either offline or and Unit Configura-...
  • Page 60 1 Introduction to NJ-series Controllers Step 2-3 Programming • Registering the variables used by more 1) Registering Vari- Global Variable Table Sysmac Studio Version 1 than one POU in the global variable ables Editor Operation Manual (Cat. No. table with Sysmac Studio W504) Local Variable Table •...
  • Page 61 1 Introduction to NJ-series Controllers Step 4. Wiring Step Description Reference • Connecting the built-in EtherCAT port 1. Connecting 4-4 Wiring (page 4-26) • Connecting the built-in EtherNet/IP port Ethernet Cable • Wiring I/O to EtherCAT slaves 2. Wiring I/O Operation manuals for Eth- •...
  • Page 62 1 Introduction to NJ-series Controllers 1-16 NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 63: System Configuration

    System Configuration This section describes the basic system configuration and devices used for NJ-series Controllers. 2-1 Basic System Configuration ........2-2 2-1-1 EtherCAT Network Configuration .

  • Page 64: Basic System Configuration

    2 System Configuration Basic System Configuration System Configuration An NJ-series Controller supports the following two types of configurations. (1) Basic Configurations The basic configurations include the CPU Unit and the Configuration Units that are controlled directly by the CPU Unit. There are two basic configurations. •...
  • Page 65 2 System Configuration CJ-series Unit Configuration CJ-series Configuration Units CPU Rack (I/O Control Unit) (Basic I/O Units, Special I/O Units, and CPU Bus Units) NJ-series Power Supply Unit NJ-series CPU Unit End Cover SD Memory Card Expansion Rack CJ-series Configuration Units (Basic I/O Units, Special NJ-series Power Supply Unit (I/O Interface Unit)

  • Page 66: Ethercat Network Configuration

    2 System Configuration 2-1-1 EtherCAT Network Configuration The EtherCAT network configuration consists of an NJ-series CPU Unit, an NJ-series Power Supply Unit, a CJ-series End Cover, and the EtherCAT slaves. You use the built-in EtherCAT master port on the NJ-series CPU Unit to connect EtherCAT slaves. For information on the system configuration of an EtherCAT network, refer to the NJ/NX-series CPU Unit Built-in EtherCAT Port User's Manual (Cat.

  • Page 67: Cj-Series Unit Configuration

    2 System Configuration 2-1-2 CJ-series Unit Configuration The CJ-series Unit configuration consists of the CJ-series Units that are connected. It includes the CJ- series Units on the CPU Rack and Expansion Racks. CPU Rack The CPU Rack consists of an NJ-series CPU Unit, an NJ-series Power Supply Unit, CJ-series Configuration Units, and a CJ-series End Cover.
  • Page 68 Racks) vice NJ501-1500 2,560 points/40 Units (3 20 MB 2 MB: Not sup- 1.90 Expansion Racks) Retained ported. sup- sup- NJ501-1400 during ported. ported. NJ501-1300 power inter- ruptions. NJ501-4500 Sup- ported. 4 MB: Not NJ501-4400 retained NJ501-4300 during...
  • Page 69 2 System Configuration • Use only NJ-series Power Supply Units on NJ-series CPU Racks and Expansion Racks. Operation is not possible if you use a CJ-series Power Supply Unit with an NJ-series CPU Unit or an NJ-series Power Supply Unit with a CJ-series CPU Unit. SD Memory Card Number of over- Model...
  • Page 70 2 System Configuration Recommended Communications Cables for EtherCAT and EtherNet/IP EtherCAT communications are performed in accordance with the 100BASE-TX standard. Refer to the NJ/NX-series CPU Unit Built-in EtherCAT Port User’s Manual (Cat. No. W505) for recom- mended cables. EtherNet/IP communications are performed in accordance with the 100BASE-TX or 10BASE-T standard.
  • Page 71 2 System Configuration Expansion Racks CJ-series Expansion Racks can be connected to the CPU Rack to expand the number of Units in the System beyond the CPU Rack. Up to 10 I/O Units can be mounted to each Expansion Rack and a total of 3 Expansion Racks can be connected.
  • Page 72 2 System Configuration  Maximum Number of Expansion Racks Expansion pattern Maximum number of Racks Remarks NJ-series CPU Rack plus 3 Racks The total length of I/O Connecting Cable CJ-series Expansion Racks between the CPU Rack and an Expansion Rack, and between all Expansion Racks, must be no more than 12 m.
  • Page 73 2 System Configuration End Cover Current con- sumption Model Specifications Weight 5 VDC 24 VDC CJ1W-TER01 The End Cover must be connected to the right end of the Included with the CPU Unit or CJ-series Expansion Rack. An End Cover Missing error Expansion Unit.
  • Page 74 2 System Configuration  Models of Configuration Units The Configuration Units with which the NJ-series CPU Unit can exchange data are classified into three groups. The number of Units that can be mounted depends on the type of Unit. Unit identifica- Number of Units Description...
  • Page 75 *2 The cable-side connector is not provided with Units equipped with cables. Purchase the connector separately (Refer to 4-4-4 Wiring CJ-series Basic I/O Units with Connectors.), or use an OMRON Connector-Terminal Block Conversion Unit or I/O Relay Terminal (Refer to 4-4-5 Connecting to Connector-Terminal Block Conver- sion Units or I/O Relay Terminals.).
  • Page 76 *2 The cable-side connector is not provided with Units equipped with cables. Purchase the connector separately (Refer to 4-4-4 Wiring CJ-series Basic I/O Units with Connectors.), or use an OMRON Connector-Terminal Block Conversion Unit or I/O Relay Terminal (Refer to 4-4-5 Connecting to Connector-Terminal Block Conver- sion Units or I/O Relay Terminals.).
  • Page 77 * The cable-side connector is not provided with Units equipped with cables. Purchase the connector separately (Refer to 4-4-4 Wiring CJ-series Basic I/O Units with Connectors.), or use an OMRON Connector-Terminal Block Conversion Unit or I/O Relay Terminal (Refer to 4-4-5 Connecting to Connector-Terminal Block Conversion Units or I/O Relay Terminals.).
  • Page 78 2 System Configuration CJ-series Special I/O Units Num- Current con- sumption (A) Number of Words Type Name Specifications Model Unit No. words allocated in Weight moun allocated DM Area table Units Special I/O Analog Input 4 inputs, fully univer- CJ1W-AD04U 0 to 95 10 words 100 words...
  • Page 79 2 System Configuration Num- Current con- sumption (A) Number of Words Type Name Specifications Model Unit No. words allocated in Weight moun allocated DM Area table Units Special I/O CompoNet CompoNet remote I/O 0 to 94 20 words None 0.40 130 g max.
  • Page 80 2 System Configuration CJ-series CPU Bus Units Current con- Maximum Number of sumption (A) number of Type Name Specifications Model Unit No. words allo- Weight cated Units 5 VDC 24 VDC CPU Bus Serial Commu- Two RS-232C ports CJ1W-SCU22 0 to F 25 words 16 Units 160 g max.

  • Page 81: Connecting To The Sysmac Studio

    2 System Configuration Connecting to the Sysmac Studio Connect the NJ-series CPU Unit and the Sysmac Studio through USB or EtherNet/IP. Refer to 3-7-2 Connection for information on how to make the connection between the NJ-series CPU Unit and the Sysmac Studio. 2-19 NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 82: Network Configuration

    CRT1 CRT1-OD16 OD16 CRT1 CRT1-OD16 OD16 REMOTE TERMINAL REMOTE TERMINAL REMOTE TERMINAL General-purpose components or OMRON components DeviceNet CompoNet slaves DeviceNet slaves Connection Connection method Sysmac Studio Use USB or the built-in EtherNet/IP port. Between Control- NJ-series Controller or CJ-series...
  • Page 83 2 System Configuration *1 Use a CJ-series EtherNet/IP Unit with a unit version of 2.1 or later. Also use CPU Units with unit version 1.01 or later and Sysmac Studio version 1.02 or higher. Refer to A-7 Version Information for information on version upgrades. 2-21 NJ-series CPU Unit Hardware User’s Manual (W500)
  • Page 84 2 System Configuration 2-22 NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 85: Configuration Units

    Configuration Units This section describes the configuration devices in the CJ-series Unit configuration. 3-1 CPU Units ........... . 3-2 3-1-1 Models and Specifications .

  • Page 86: Cpu Units

    NJ501-1500 2,560 points/40 20 MB 2 MB: Not sup- Not sup- Not sup- CPU Units Units (3 Expansion Retained ported. ported. ported. NJ501-1400 Racks) during power NJ501-1300 interruptions NJ501-4500 Sup- 4 MB: Not ported. retained NJ501-4400 during power NJ501-4300 interruptions...

  • Page 87: Components And Functions

    3 Configuration Units 3-1-2 Components and Functions (10) (11) (12) (13) (14) (15) NJ-series CPU Unit Hardware User’s Manual (W500)
  • Page 88 3 Configuration Units Number Name Function Slider Holds the Units together. SD Memory Card connector Connects the SD Memory Card to the CPU Unit. CPU Unit operation indicators Shows the operation status of the CPU Unit. Refer to CPU Unit Operation Status Indicators on page 3-5. SD Memory Card power supply Turns OFF the power supply so that you can remove the SD Memory switch...
  • Page 89 3 Configuration Units CPU Unit Operation Status Indicators You can check the CPU Unit status with the indicators at the top of the front panel of the CPU Unit. The following table describes these indicators. Indicator Color Status Meaning Green The CPU Unit is in normal operation in RUN mode.
  • Page 90 3 Configuration Units Indicator Color Status Meaning SD PWR Green Power is being supplied to the SD Memory Card and the SD Memory Card can be used. Flashing Not lit The power supply for the SD Memory Card is stopped, an SD Memory Card is not mounted, or the file format of the mounted SD Memory Card is not supported.
  • Page 91 3 Configuration Units Built-in EtherNet/IP Port (Port 1) Indicators Indicator Color Status Contents NET RUN Green Normal startup status. Flashing Ethernet communications are in progress. • Tag data link connection establishment in progress. • IP address acquisition with BOOTP in progress. Not lit You cannot perform Ethernet communications.
  • Page 92 3 Configuration Units Built-in EtherCAT Port (Port 2) Indicators Indicator Color Status Description NET RUN Green EtherCAT communications are in progress. • Inputs and outputs for I/O data are in operation. Flashing EtherCAT communications are being established. This indicator shows either of the following conditions. •...
  • Page 93 Shows the lot number and the serial number of the CPU Unit. serial number DDMYY: Lot number, : For use by OMRON, xxxx: Serial number M is 1 to 9 for January to September, X for October, Y for November, and Z for December.

  • Page 94: Sd Memory Cards

    SD Memory Cards 3-2-1 Models and Specifications SD cards and SDHC cards are supported, but use one of the following OMRON Cards. OMRON is not responsible for the operation, performance, or write life of any other SD or SDHC card. Number of...
  • Page 95 3 Configuration Units Version Information A CPU Unit with unit version 1.03 or later and Sysmac Studio version 1.04 or higher are required to use the SD Memory Card backup functions and automatic transfer from SD Memory Cards. 3-11 NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 96: Installing And Removing

    • The service life may be extremely short if a non-OMRON SD Memory Card is used. Also, operation may be affected due to deterioration in writing performance. • If you use an OMRON SD Memory Card, the end of the life of the SD Memory Card can be detected in the following ways.
  • Page 97 3 Configuration Units Push the SD Memory Card securely into the compartment. Removing the SD Memory Card Press the SD Memory Card power supply switch (SD PWR). SD Memory Card power supply switch Press the SD Memory Card after the SD BUSY indicator is no longer lit. The SD Memory Card will be ejected from the compartment.

  • Page 98: Power Supply Units

    3 Configuration Units Power Supply Units 3-3-1 Models and Specifications NJ-series Power Supply Units Use an NJ-series Power Supply Unit to supply power to an NJ-series CPU Rack or Expansion Rack. Precautions for Correct Use Precautions for Correct Use • Do not use the Power Supply Units in the system beyond the rated supply capacity range given in the following specifications.
  • Page 99 3 Configuration Units Item Specifications Shock resistance 147 m/s 3 times each in X, Y, and Z directions (Relay Output Unit: 100 m/s ) (according to IEC 60068-2-27) Ambient operating 0 to 55C temperature Ambient operating 10% to 90% (with no condensation) humidity Atmosphere Must be free from corrosive gases.

  • Page 100: Components And Functions

    3 Configuration Units 3-3-2 Components and Functions NJ-PA3001 POWER Indicator (PWR LED) AC input Connector RUN output NJ-PD3001 POWER Indicator (PWR LED) (DC input) Connector − (DC input) RUN output AC Input Supply 100 to 240 VAC (allowable: 85 to 264 VAC). The NJ-PA3001 has a wide input range, so it does not have voltage switching terminals.

  • Page 101: Selecting A Power Supply Unit

    3 Configuration Units RUN Output (NJ-PA3001/-PD3001) The internal contacts for the RUN output turn ON when the CPU Unit is in RUN status. The following operation occurs. Status Operation In operation (RUN mode). The CPU Unit is starting (until entering the operating status that is specified in the Startup Mode setting).
  • Page 102 3 Configuration Units 2 Be sure to include the power required by the I/O Interface Unit when calculating current/power consump- tion in an Expansion Rack. Output current Output Model 5-VDC CPU 5-VDC Expan- capacity 24 VDC sion Rack Rack NJ-PA3001 6.0 A 6.0 A 1.0 A...
  • Page 103 3 Configuration Units Additional Information Rack Current Consumption and Width Display The width, current consumption, and power consumption for each Rack are displayed on the right side of the CPU/Expansion Racks Tab Page in the Controller Configurations and Setup of the Sysmac Studio.
  • Page 104 3 Configuration Units Calculating Power Consumption The ambient operating temperature at the control panel where an NJ-series Controller is mounted must be no higher than 55C. This section describes how to calculate the power consumption of a CPU Rack or Expansion Rack for use in the thermal design of the control panel.
  • Page 105 3 Configuration Units Calculation Examples These examples show how to calculate the power consumption (W) for the following system. CPU Rack Power Supply Unit CJ1W-MAD42 × 2 NJ501-1500 Special I/O Units CPU Unit CJ1W-ID261 × 2 CJ1W-OD261 × 2 Basic I/O Units Units Model Quantity...

  • Page 106: Cj-Series Basic I/O Units

    3 Configuration Units CJ-series Basic I/O Units 3-4-1 Models and Specifications  Basic Input Units Type of Unit Name Specifications Model Page Basic Input DC Input Units Terminal block, 12 to 24 VDC 8 inputs CJ1W-ID201 Units Terminal block, 24 VDC 16 inputs CJ1W-ID211 CJ1W-ID212...

  • Page 107: Part Names And Functions

    3 Configuration Units  Basic Mixed I/O Units Type of Name Specifications Model Page Unit Mixed I/O 24-VDC Sinking Fujitsu connector 16 inputs CJ1W-MD231 A-41 Units Inputs/Transis- output Inputs: 24 VDC 16 outputs tor Output Units Outputs: 12 to 24 VDC, 0.5 A MIL connector CJ1W-MD233 A-43...
  • Page 108 3 Configuration Units  Thirty-two-point Units with 40-pin Fujitsu Connector or MIL Connector Model number Indicator Switch ID 2 3 1 ID 2 3 2 I/O indicators Changes the 16 I/O displayed on the I/O indicators. I/O wiring Fujitsu connector MIL connector connector (40-pin ×...
  • Page 109 3 Configuration Units Quick-response Inputs When you want to receive pulses that are shorter than the task period, use the CJ1W-IDP01 Quick- response Input Unit. The quick-response inputs can receive pulses with a pulse width (ON time) of 0.05 ms for the CJ1W- IDP01 Quick-response Input Unit.

  • Page 110: B7A Interface Ports

    3 Configuration Units B7A Interface Ports 3-5-1 Overview The B7A is a 1:1 transmission path that does not require a master. A total of 16 signals are transmitted using a two-conductor or three-conductor VCTF cable (maximum length: 500 m). The CJ1W-B7A B7A Interface Unit is a CJ-series Basic I/O Unit that exchanges up to 64 points of I/O data mainly with B7A Link Terminals using a B7A transmission path.

  • Page 111: B7A Communications Specifications

    , 2 conductors (power supply on both sides (separate power supplies)) *1 We recommend OMRON S8-series Power Supply Units for the external power supplies. *2 The capacity of the external supply current does not include the capacity required by the B7A Link Terminal.

  • Page 112: Common Specifications

    3 Configuration Units 3-5-5 Common Specifications Item Specifications Applicable Controllers NJ Series Unit classification CJ-series Basic I/O Unit Transmission delay Standard (19.2 ms typical) or high-speed (3 ms typical), switchable (Switchable by using the setting switch on the front panel. Settings are read when power is turned ON or Unit is restarted.) Factory setting: Standard (19.2 ms typical) Note A transmission error will occur if B7A Link Terminals with different transmis-...

  • Page 113: Parts And Names

    3 Configuration Units 3-5-7 Parts and Names B7A14 ERR1 Indicators ERR2 ERR3 ERR4 Transmission 19ms delay switch − Connection terminals (Screwless connectors) − − − − Indicators  CJ1W-B7A14 B 7A 14 R U N E R R 1 E R R 2 E R R 3 E R R 4 Indicator...
  • Page 114 3 Configuration Units Indicator Name Color Status Condition ERR3 Port 3 A transmission error has occurred at transmis- port 3 of the B7A Unit. sion error Not lit The Unit is operating normally. ERR4 Port 4 A transmission error has occurred at transmis- port 4 of the B7A Unit.

  • Page 115: Transmission Error Processing

    3 Configuration Units 3-5-8 Transmission Error Processing B7A Interface Input Ports The B7A Interface Unit detects transmission errors at the input ports. When a transmission error is detected at an input port, the corresponding indicator and Transmission Error Flag turn ON. ...

  • Page 116: Cj-Series I/O Control Units And I/O Interface Units

    3 Configuration Units CJ-series I/O Control Units and I/O Interface Units An I/O Control Unit and I/O Interface Units are used to connect Expansion Racks to the NJ-series CPU Rack to expand the system. 3-6-1 Models and Specifications  I/O Control Unit Model Specifications CJ1W-IC101...

  • Page 117: Sysmac Studio

    3 Configuration Units Sysmac Studio The Sysmac Studio is a Support Software package that provides an integrated development environ- ment to design, program, debug, and maintain SYSMAC NJ-series Controllers. 3-7-1 Model Numbers The model numbers of the Sysmac Studio Standard Edition are given in the following table. The model numbers are different for the media and licenses.

  • Page 118: Connection

    3 Configuration Units 3-7-2 Connection With an NJ-series CPU Unit, you can connect the Sysmac Studio online in the following ways. Configuration  Connecting by USB • Direct Connection • Connection to CPU Unit on EtherNet/IP with USB Sysmac Studio Sysmac Studio EtherNet/IP The connection device does not...
  • Page 119 3 Configuration Units Additional Information The Sysmac Studio cannot connect online to an NJ-series CPU Unit in the following type of con- figuration. • If the built-in EtherNet/IP port is not used, you cannot connect to an NJ-series CPU Unit on an EtherNet/IP network.
  • Page 120 3 Configuration Units 3-36 NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 121: Installation And Wiring

    Installation and Wiring This section describes how to install and wire the CPU Unit and Configuration Units. 4-1 Processing at Power ON and Power OFF ......4-2 4-1-1 Power ON Operation .

  • Page 122: Processing At Power On And Power Off

    4 Installation and Wiring Processing at Power ON and Power WARNING • Do not touch the terminal section while power is ON. Electrical shock may occur. • Do not disassemble any of the Units. Particularly the Power Supply Units con- tain parts with high voltages when power is ON or immediately after power is turned OFF.

  • Page 123: Power Off Operation

    4 Installation and Wiring Additional Information The CPU Unit internally performs initialization when the power to the Controller is turned ON. The following processing is performed for initialization. Process Description Self diagnosis at startup Operation is monitored for the following errors: Power Supply Error, CPU Unit Reset, CPU Unit Watchdog Timer Error, and Incorrect Power Supply Unit Connected.
  • Page 124 4 Installation and Wiring The following table gives the voltage conditions for a power interruption. Power Supply Unit model Power supply input Power interruption voltage NJ-PA3001 100 to 200 VAC 85 VAC max. NJ-PD3001 24 VDC 19.2 VDC max. The setting ranges for the power OFF detection time are given in the following table. Power supply type Power OFF detection time AC power supply...

  • Page 125: Resetting The Controller From The Sysmac Studio

    4 Installation and Wiring Momentary Power Interruption with Continued Operation Execution of the user program will continue if a momentary power interruption is less than the following times. Power supply type Momentary power interruption time with continued operation AC power supply 30.5 ms max.

  • Page 126: Fail-Safe Circuits

    4 Installation and Wiring Fail-safe Circuits WARNING Provide safety measures in external circuits, including the following items, to ensure safety in the system if an abnormality occurs due to malfunction of the CPU Unit, other Units, or slaves or due to other external factors affecting opera- tion.

  • Page 127: Order Of Powering Up The Controller And Controlled System

    4 Installation and Wiring 4-2-1 Order of Powering Up the Controller and Controlled System Outputs from Units, such as DC Output Units, may malfunction momentarily when the power to the Controller is turned ON. This may cause problems in the system if the Controller power supply is turned ON after the controlled system's power supply.
  • Page 128 4 Installation and Wiring Interlock Circuits When the Controller controls an operation such as the clockwise and counterclockwise operation of a motor, provide an external interlock such as the one shown in the following example to prevent both the forward and reverse outputs from turning ON at the same time if required by the application. Interlock circuit ON_MC1 Motor clockwise...

  • Page 129: Mounting Units

    4 Installation and Wiring Mounting Units Precautions for Correct Use Precautions for Correct Use • Follow the instructions in this manual to correctly perform installation. • Do not operate or store the Controller in the following locations. Doing so may cause operation to stop or incorrect operation.
  • Page 130 4 Installation and Wiring Control panel NJ-series Controller Louver  Accessibility for Operation and Maintenance • To ensure safe access for operation and maintenance, separate the Controller as much as possi- ble from high-voltage equipment and power machinery. • It will be easy to operate the Controller if it is mounted at a height of 1.0 to 1.6 m above the floor. ...
  • Page 131 4 Installation and Wiring Mounting with the DIN Track on the Bottom Mounting with the DIN Track on the Top DIN Track DIN Track Mounting with the DIN Track Installed Vertically Mounting with the Rack Upside down Installation Method in Control Panels An NJ-series Controller must be mounted inside a control panel on DIN Track.
  • Page 132 4 Installation and Wiring • Wiring Ducts Whenever possible, route I/O wiring through wiring ducts or raceways. Install mounting bracket so that it is easy to fish wire from the I/O Units through the duct. It is handy to have the duct at the same height as the Racks.
  • Page 133 4 Installation and Wiring  Routing Wiring Ducts Install the wiring ducts at least 20 mm away from the tops of the Racks and any other objects (e.g., ceiling, wiring ducts, structural supports, devices, etc.) to provide enough space for air circulation and replacement of Units.

  • Page 134: Connecting Controller Components

    4 Installation and Wiring 4-3-2 Connecting Controller Components The Units that make up an NJ-series Controller can be connected simply by pressing the Units together and locking the sliders by moving them toward the back of the Units. The End Cover is connected in the same way to the Unit on the far right side of the Controller.
  • Page 135 4 Installation and Wiring Attach the End Cover to the Unit on the far right side of the Rack. CPU Rack (I/O Control Unit) *1 Power Supply CPU Unit End Cover Unit Configuration Units (10 max.) (included with CPU Unit) *1: Connect the I/O Control Unit directly to the CPU Unit to enable connecting Expansion Racks.

  • Page 136: Din Track Installation

    4 Installation and Wiring 4-3-3 DIN Track Installation Use the following procedure to install an NJ-series Controller on DIN Track. Release the pins on the backs of the NJ-series Units. Release DIN Track mounting pins Fit the back of the Controller onto the DIN Track by inserting the top of the track and then press- ing in at the bottom of the Controller, as shown below.
  • Page 137 4 Installation and Wiring Install a DIN Track End Plate on each end of the Controller. To install an End Plate, hook the bot- tom on the bottom of the track, rotate the Plate to hook the top of the Plate on the top of the track, and then tighten the screw to lock the Plate in place.
  • Page 138 4 Installation and Wiring DIN Track and Accessories Use the DIN Track and DIN Track End Plates shown below. Secure each DIN Track inside a control panel with at least three screws. • DIN Track Model numbers: PFP-50N (50 cm), PFP-100N (100 cm), PFP-100N2 (100 cm) Secure the DIN Track to the control panel using M4 screws separated by 210 mm (6 holes) or less and using at least 3 screws.

  • Page 139: Connecting Cj-Series Expansion Racks

    4 Installation and Wiring 4-3-4 Connecting CJ-series Expansion Racks CS/CJ-series I/O Connecting Cables are used to connect the NJ-series CPU Rack and CJ-series Expansion Racks.  CS/CJ-series I/O Connecting Cables • These connectors are equipped with easy-lock connectors. • Use them to connect the CPU Rack to an Expansion Rack or to connect two Expansion Racks. Model number Cable length CS1W-CN313...
  • Page 140 4 Installation and Wiring I/O Control Unit CPU Rack Easy-lock connector I/O Interface Unit I/O Connecting Cable Expansion Rack I/O Interface Unit Easy-lock connector Expansion Rack • The top and bottom of the connector are different. Be sure the connector is facing the correct direction before connecting it.

  • Page 141: Assembled Appearance And Dimensions

    4 Installation and Wiring Precautions for Correct Use Precautions for Correct Use • When using an I/O Connecting Cable with a locking connector, be sure that the connector is firmly locked in place before using it. • Always turn OFF the power supply to the Controller before connecting a cable. •...
  • Page 142 4 Installation and Wiring Dimensions Power Supply Unit Model Unit width (mm) NJ-PA3001 NJ-PD3001 CPU Unit Model Unit width (mm) NJ501-1500 NJ501-1400 NJ501-1300 NJ501-4500 NJ501-4400 NJ501-4300 NJ501-4310 NJ501-1520 NJ501-1420 NJ501-1320 NJ501-4320 NJ301-1200 NJ301-1100 NJ101-1000 NJ101-9000 NJ101-1020 NJ101-9020 End Cover Model...
  • Page 143 4 Installation and Wiring 31-mm-wide Units Name Model Unit width (mm) I/O Interface Unit CJ1W-II101 8-point and 16-point Basic I/O Units CJ1W-ID201 CJ1W-ID211/212 CJ1W-IA111/201 CJ1W-OD20 CJ1W-OD211/212/213 CJ1W-OC201/211 CJ1W-OA201 32-point Basic I/O Units CJ1W-MD231/232/233 64-point Basic I/O Units CJ1W-ID261 CJ1W-OD261 CJ1W-MD261 CJ1W-ID262 CJ1W-OD262/263 CJ1W-MD263/563...
  • Page 144 4 Installation and Wiring  Design Example for Width W Power Supply Unit CPU Unit Configuration Units Power Supply Unit: NJ-PA3001 (70 mm) CPU Unit: NJ501-1500 (90 mm) Basic I/O Units: CJ1W-ID231 (20 mm)  2 Special I/O Units: CJ1W-AD081-V1 (31 mm)  4 CPU Bus Unit: CJ1W-EIP21 (31 mm) ...
  • Page 145 4 Installation and Wiring Installation Height With a height of 90.0 mm, the CPU Unit is the highest component in an NJ-series CPU Rack. It is also higher than any Units on an Expansion Rack. When a cable is connected (such as a connecting cable to Support Software), however, even greater height is required.

  • Page 146: Wiring

    4 Installation and Wiring Wiring WARNING • Do not input a voltage or current that exceeds the specified range into a Unit or slave. If a voltage or current that is outside the specified range is input, the Unit or slave may fail or a fire may occur. CAUTION •...
  • Page 147 4 Installation and Wiring  AC Power Source • Supply 100 to 240 VAC. • Keep voltage fluctuations within the specified range: Supply voltage Allowable voltage fluctuations 100 to 240 VAC 85 to 264 VAC • If one power supply phase of the equipment is grounded, connect the grounded phase side to the L2/N terminal.
  • Page 148 4 Installation and Wiring  Crimp Terminals The terminals on the Power Supply Unit are M4, self-raising terminals with screws. Precautions for Safe Use • Use crimp terminals for wiring. • Do not connect bare stranded wires directly to terminals. •...
  • Page 149 4 Installation and Wiring  DC Power Source Supply 24 VDC. Keep voltage fluctuations within the specified range. Model Allowable voltage fluctuation range  NJ-PD3001 19.2 to 28.8 VDC (24 VDC 20%)  Power Supply Capacity The maximum power consumption is 50 W (NJ-PD3001) per Rack. When you select the power supply, consider that surge current will flow when the power is turned Refer to 3-3-1 Models and Specifications for information on surge current specifications.
  • Page 150 4 Installation and Wiring Grounding LG (Noise-filter neutral terminal) Ground this terminal to less than 100 Ω to improve noise resistance and prevent electric shock. GR (Ground terminal) Ground this terminal to less than 100 Ω to prevent electric shock. •...

  • Page 151: Wiring The Built-In Ethercat Port

    4 Installation and Wiring  Crimp Terminals for DC Power Supply 7 mm max. 7 mm max.  When wiring an AC Power Supply Unit, if one power supply phase of the equipment is grounded, always connect the grounded phase to the L2/N terminal.
  • Page 152 4 Installation and Wiring Precautions for Safe Use • Use crimp terminals for wiring. • Do not connect bare stranded wires directly to terminals. • Tighten the terminal block screws to the torque of 0.5 N·m. • Use crimp terminals (M3) having the dimensions shown below. 6.2 mm max.

  • Page 153: Wiring Cj-Series Basic I/O Units With Connectors

    Depending on the connector, the following methods are used to connect these Units to external I/O devices. • Use an OMRON Connecting Cable (equipped with a special connector) to connect to a Terminal Block or Relay Terminal. • Use a special connector and make your own cable.
  • Page 154 Connecting to a Connector-Terminal Block Conversion Unit or I/O Relay Terminal For details on using OMRON Connecting Cables equipped with special connectors to connect Basic I/O Units with connectors to OMRON Connector-Terminal Block Conversion Units or I/O Relay Termi- nals, refer to A-2-4 Connecting Connector-Terminal Block Conversion Units and I/O Relay Terminals.
  • Page 155 TTL Input/TTL Output Units, 32 inputs, 32 outputs CJ1W-MD232 24-VDC Input/Transistor Output Units, 16 inputs, 16 outputs CJ1W-MD233 24-VDC Input/Transistor Output Units, 16 inputs, 16 outputs Applicable Cable-side Connectors Connection Pins OMRON set DDK parts Pressure-welded XG4M-4030-T FRC5-A040-3TOS XG4M-2030-T FRC5-A020-3TOS  Wire Size We recommend using cable with wire gauges of AWG 24 or AWG 28 (0.2 mm...
  • Page 156 4 Installation and Wiring Cover the Unit while wiring to prevent wire clippings from entering the Unit. If there is a dustproof label on the top of the Unit, do not remote it before you wire the Unit. (Remove the label or other covering after wiring has been completed to allow air circulation needed for cooling.) After wiring Before wiring...
  • Page 157 4 Installation and Wiring Assemble the connector (purchased separately). Small screws (3) Connector cover Small screws (2) Socket Connector lock screws Cable bracket Nuts (3) Nuts (2) Insert the wired connector. ID261 10 11 12 13 14 15 10 11 12 13 14 15 Connector Basic I/O Unit...

  • Page 158: Connecting To Connector-Terminal Block Conversion Units Or I/O Relay Terminals

    Connecting to Connector-Terminal Block Conversion Units or I/O Relay Terminals OMRON Connecting Cable can be used to connect Basic I/O Units with Connectors to OMRON Con- nector-Terminal Block Conversion Units or to OMRON I/O Relay Terminals. For details, refer to A-2-4 Connecting Connector-Terminal Block Conversion Units and I/O Relay Terminals.

  • Page 159: Connecting I/O Devices

    4 Installation and Wiring 4-4-6 Connecting I/O Devices Input Devices Use the following information for reference when selecting or connecting input devices.  DC Input Units The following types of DC input devices can be connected. Contact output DC Input Unit Two-wire DC output DC Input Unit Sensor...
  • Page 160 4 Installation and Wiring  AC Input Units Contact output AC Input Unit AC Switching Proximity AC Input Unit switch main circuit Precautions for Correct Use Precautions for Correct Use When using a reed switch as the input contact for an AC Input Unit, use a switch with an allow- able current of 1 A or greater.
  • Page 161 In this example, the sensor's power supply voltage is used as the input to SensorVcc. A timer delay (100 ms for an OMRON Proximity Sensor) is added to the user program to wait for sensor operation to stabilize. After the timer times out and then the SensorOK input changes to TRUE, a sensor input to the Sensorln input causes InData to change to TRUE.

  • Page 162: Wiring The Built-In Ethercat Port

    4 Installation and Wiring Output Wiring Precautions  Output Short-circuit Protection If a load connected to the output terminals is short-circuited, output components and the printed cir- cuit boards may be damaged. To guard against this, incorporate a fuse in the external circuit. Use a fuse with a capacity of about twice the rated output.

  • Page 163: Wiring B7A Interface Units

    4 Installation and Wiring 4-4-8 Wiring B7A Interface Units Terminal Arrangement Terminal Name Function Word Appearance Port 1 power supply: V1 Connect to the + terminal of the B7A Link Terminal to Connector with be connected to port 1 (only when using a common clamps power supply).
  • Page 164 4 Installation and Wiring Preparing and Connecting Cables Use the following procedure to prepare and connect the cables. Precautions for Correct Use Precautions for Correct Use Always turn OFF the Unit's power supply and communications power supply before attaching or removing connectors.
  • Page 165 4 Installation and Wiring Precautions for Correct Use Precautions for Correct Use Always use the specified crimp tool to attach the crimp terminals. If a crimp tool is not used, the cable will not be crimped properly, which may cause the cable to become detached from the ter- minal.
  • Page 166 4 Installation and Wiring Additional Information To remove the signal lines from the connector, press down on the orange tab while pulling out the signal line, as shown in the following diagram. Small, flat- blade screwdriver Precautions for Correct Use Precautions for Correct Use To remove the connector from the Unit, fully unscrew the set screws from both sides of the con- nector, and then remove the connector.

  • Page 167: Connection Diagrams

    4 Installation and Wiring Connection Diagrams Precautions for Correct Use Precautions for Correct Use • Confirm that terminals are connected correctly. If connections are incorrect, the internal com- ponents of the B7A Interface Unit and B7A Link Terminal may be damaged. •...
  • Page 168 4 Installation and Wiring  High-speed Mode Note If shielded cable is not used, the maximum transmission distance is 10 m regardless of whether a common or separate power supplies are used. (Use VCTF cable of 0.75 mm or higher.) •...

  • Page 169: Control Panel Installation

    4 Installation and Wiring Control Panel Installation To ensure system reliability and safety, the system must be designed and configured according to the installation environment (temperature, humidity, vibration, shock, corrosive gases, overcurrent, noise, etc.). 4-5-1 Temperature Panels have been reduced in size due to space-saving and miniaturization in devices and systems, and the temperature inside the panel may be at least 10 to 15C higher than outside the panel.
  • Page 170 4 Installation and Wiring  Forced Air Circulation (by Fan in Closed Panel) Controller Controller Forced Air Circulation  Room Cooling (Cooling the Entire Room Where the Control Panel Is Located) Cooler Control panel Room Cooling Low Temperatures The Controller may not start normally if the temperature is below 0C when the power is turned ON. Maintain an air temperature of at least approximately 5C inside the panel, by implementing measures such as installing a low-capacity space heater in the panel.

  • Page 171: Humidity

    4 Installation and Wiring 4-5-2 Humidity Rapid temperature changes can cause condensation to occur, resulting in malfunctioning due to short- circuiting. When there is a possibility of this occurring, take measures against condensation, such as leaving the Controller power ON at night or installing a heater in the control panel to keep it warmer. Control panel Moisture absorber Controller...

  • Page 172: Electrical Environment

    4 Installation and Wiring 4-5-5 Electrical Environment When installing or wiring devices, make sure that there will be no danger to people and that noise will not interfere with electrical signals. Controller Installation Location Install the Controller as far away as possible from high-voltage (600 V or higher) and power devices to ensure safe operation and maintenance.
  • Page 173 4 Installation and Wiring Wire Layout for the Power Supply System Observe the following points when wiring the power supply system. • Separate the Controller power supply from the I/O device power supply and install a noise filter near the Controller power supply feed section. •...
  • Page 174 4 Installation and Wiring • Wire the lines so that common impedance does not occur. Such wiring will increase the number of wires, so use common return circuits. Use thick wires with sufficient allowance for the return circuits, and bundle them with lines of the same signal level. •...
  • Page 175 4 Installation and Wiring • To avoid overheating the conduits when using conduits for wiring, do not place wires for a single circuit in separate conduits. Power supply Load Incorrect Power supply Load Correct Power supply Load Correct Parallel Wiring (Single Phase) •...

  • Page 176: Grounding

    4 Installation and Wiring 4-5-6 Grounding This section describes the earthing methods and precautions. Considerations for Earthing Methods Local potential fluctuations due to lightning or noise occurred by power devices will cause potential fluc- tuations between ground terminals of devices. This potential fluctuation may result in device malfunc- tion or damage.To prevent this, it is necessary to suppress the occurrence of a difference in electrical potential between ground terminals of devices.
  • Page 177 4 Installation and Wiring Each of these earthing methods is given below.  Equipotential Bonding System Equipotential bonding is an earthing method in which steel frames and building structures, metal ducts and pipes, and metal structures in floors are connected together and make connections to the earth trunk line to achieve a uniform potential everywhere across the entire building.
  • Page 178 4 Installation and Wiring Control panel A device that could be a noise source Other device NJ-series CPU Units 10 m min. b) Connecting devices and noise sources to a common earth electrode This is an earthing method to connect the device that is connected with a communications cable, other devices, and a device that could be a noise source, to a common earth electrode.
  • Page 179 4 Installation and Wiring Precautions for Grounding  General Precautions • To prevent electrical shock, do not connect devices to ground poles (or steel frames) with non- equalized potential to which multiple devices are connected. • Use a ground pole as close to the Controller as possible and keep the ground line as short as pos- sible.
  • Page 180 4 Installation and Wiring L2/N 4-60 NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 181: Troubleshooting

    Troubleshooting This section describes the confirmation methods and corrections for errors that occur in the NJ-series Controller and describes hardware-related errors that can occur in the PLC Function Module. 5-1 Operation after an Error ........5-2 5-1-1 Overview of NJ-series Status .

  • Page 182: Operation After An Error

    5 Troubleshooting Operation after an Error This section describes the error status of the NJ-series Controller and the operation that occurs after an error is detected. Refer to 5-2 Troubleshooting for details on corrections for specific errors. Refer to the NJ/NX-series Troubleshooting Manual (Cat.

  • Page 183: Fatal Errors In The Cpu Unit

    5 Troubleshooting 5-1-2 Fatal Errors in the CPU Unit Types of Fatal Errors Some errors are fatal and prevent the CPU Unit from operating. This section describes the errors that cause the operation of the CPU Unit to stop. Communications with the Sysmac Studio or an HMI are not possible if there is a fatal error in the Controller.

  • Page 184: Non-Fatal Error In Cpu Unit

    5 Troubleshooting 5-1-3 Non-fatal error in CPU Unit Event Levels Non-fatal errors that occur are managed as Controller events in the NJ-series Controller. Controller events are classified into levels according to the degree of the effect that the events have on control. When an event occurs, the Sysmac Studio or HMI will display the level.
  • Page 185 5 Troubleshooting Event level Controller infor- Item Controller errors mation Major fault level Partial fault level Minor fault level Observation Information • Non-volatile • Motion Control • Positive Limit • Packet Dis- • Power Turned Memory Data Period Input Detected carded Due to Corrupted Exceeded...
  • Page 186 5 Troubleshooting  Operation in the Function Module Where an Error Event Occurred Event level Function module Major fault level Partial fault level Minor fault level Observation PLC Function User program execu- Operation continues. Module tion stops. All axes stop. (The stop •...
  • Page 187 5 Troubleshooting Unit CPU Unit operation Unit or slave operation CJ-series Basic I/O Unit Refreshing is stopped. • All outputs are turned OFF. • All inputs are turned OFF. CJ-series Special Unit Refreshing is stopped. Depends on the Unit operating specifications (the ERH indicator lights).
  • Page 188 5 Troubleshooting Checking for Non-fatal Errors Use the following methods to check for non-fatal errors. Checking method What you can check Checking the indicators You can use the indicators to confirm the Controller error level, the error status of the EtherCAT Master Function Module, and the error status of the Ether- Net/IP Function Module.
  • Page 189 • Lit: An error for which normal status cannot be recovered through user actions (i.e., errors for which you must replace the CPU Unit or contact your OMRON representative) has occurred. • Flashing: An error for which normal status can be recovered through user actions has occurred.
  • Page 190 5 Troubleshooting Checking with the Troubleshooter of an HMI If you can connect communications between an HMI and the Controller when an error occurs, you can check for current Controller errors and the log of past Controller errors. To perform troubleshooting from an HMI, connect the HMI to the built-in EtherNet/IP port on the CPU Unit.

  • Page 191: Troubleshooting

    5 Troubleshooting Troubleshooting This section provides basic error identification and troubleshooting flowcharts. Use them when an error occurs in the NJ-series Controller. This section also describes the hardware errors that are related to the PLC Function Module and corrections for those errors. 5-2-1 Checking to See If the CPU Unit Is Operating When an error occurs in the NJ-series Controller, use the following flowchart to determine whether the...

  • Page 192: Troubleshooting Flowchart For Non-Fatal Errors

    5 Troubleshooting 5-2-2 Troubleshooting Flowchart for Non-fatal Errors For a non-fatal error, use the Sysmac Studio or an HMI to troubleshoot the error with the following flow- chart. You can use the indicators to check the following: • Level • Whether the error is in the EtherNet/IP port or the EtherCAT port •...

  • Page 193: Error Table

    5 Troubleshooting 5-2-3 Error Table The hardware errors (i.e., events) and the Controller operation errors (i.e., events) that involve hard- ware that can occur in the PLC Function Module are given on the following pages. The following abbre- viations and symbols are used in the event level column. Abbreviation Name Major fault level...
  • Page 194 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info 10080000 hex Main Memory An error was • Conductive material has gotten page 5-34 Check Error detected in the inside. memory check of • Noise the main memory in •...
  • Page 195 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info 10090000 hex Battery- An error was • The battery voltage is low. page 5-41 backup Mem- detected in the • The battery connector has ory Check memory check of come loose.
  • Page 196 5 Troubleshooting Errors Related to CJ-series Unit Configuration Level Event code Event name Meaning Assumed cause Reference Obs Info 04010000 hex I/O Bus An error occurred in • The I/O Connecting Cable is page 5-46 Check Error a bus line transmis- disconnected or wires inside it sion between the are broken.
  • Page 197 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info 64010000 hex Impossible to An error occurred in • The setting of the rotary page 5-51 Access Spe- data exchange switches or a DIP switch pin on cial Unit between the CPU a Special Unit is not correct.
  • Page 198 5 Troubleshooting Errors Related to Controller Operation Level Event code Event name Meaning Assumed cause Reference Obs Info 10200000 hex User Pro- The user program • The user program or Controller page 5-56 gram/Con- or Controller Con- Configurations and Setup are troller figurations and not correct because the power...
  • Page 199 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info 10270000 hex Error in Start- An error was • An SD Memory Card is not page 5-59 (Ver. 1.03 or ing Automatic detected in pre- inserted. later) Transfer execution checks •...
  • Page 200 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info 10280000 hex Error in Exe- The automatic • It was not possible to read the page 5-61 (Ver. 1.03 or cuting Auto- transfer ended in an data for automatic transfer. later) matic error.
  • Page 201 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info 10330000 hex SD Memory An error was • An SD Memory Card is not page 5-62 (Ver. 1.11 or Card Pro- detected in pre- inserted. later) gram Trans- execution checks •...
  • Page 202 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info 10340000 hex Error in Exe- The SD Memory • It was not possible to read the page 5-65 (Ver. 1.11 or cuting SD Card program data for SD Memory Card pro- later) Memory Card transfer ended in an...
  • Page 203 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info 10290000 hex Backup An error was • An SD Memory Card is not page 5-69 (Ver. 1.03 or Failed to detected in pre- inserted. later) Start execution checks •...
  • Page 204 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info 102B0000 hex Restore An error was • An SD Memory Card is not page 5-73 (Ver. 1.03 or Operation detected in pre- inserted. later) Failed to execution checks •...
  • Page 205 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info • Password of Restore by sys- tem-defined variable in the Controller Setup does not agree with the _Card1Resto- reCmd.Password system- defined variable. • The DIP switch on the CPU Unit is not set to allow starting the restore of SD Memory Card backups by specification with...
  • Page 206 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info 10320000 hex SD Memory An error was • Program transfer by system- page 5-77 defined variable is set to Do not (Ver. 1.11 or Card Pro- detected in pre-start use in the Controller Setup.
  • Page 207 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info • The robot version of the CPU Unit to which to transfer the files is older than the robot ver- sion of the backup files on the SD Memory Card.
  • Page 208 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info 40140000 hex PLC System This event pro- • This event provides internal page 5-82 Information vides internal infor- information from the PLC Func- mation from the tion Module. It is recorded to PLC Function Mod- provide additional information ule.
  • Page 209 5 Troubleshooting Level Event code Event name Meaning Assumed cause Reference Obs Info 90120000 hex Power Inter- The power supply • The power supply was inter- page 5-88 rupted was interrupted. rupted. 90130000 hex Operation Operation was • A command to start operation page 5-88 Started started.

  • Page 210: Error Descriptions

    5 Troubleshooting 5-2-4 Error Descriptions This section describes the information that is given for individual errors. Controller Error Descriptions The items that are used to describe individual errors (events) are described in the following copy of an error table. Event name Gives the name of the error.
  • Page 211 5 Troubleshooting Errors for Self Diagnosis Event name DIP Switch Setting Error Event code 00090000 hex Meaning An error was detected in the DIP switch setting. Source PLC Function Module Source details None Detection At power ON or timing Controller reset Error attributes Level Major fault...
  • Page 212 5 Troubleshooting Event name Non-volatile Memory Life Exceeded Event code 000E0000 hex Meaning The specified number of deletions for non-volatile memory was exceeded. Or, the number of bad blocks in memory exceeded the specified value. Source PLC Function Module Source details None Detection Continuously...
  • Page 213 5 Troubleshooting Event name Non-volatile Memory Data Corrupted Event code 10020000 hex Meaning A file that must be in non-volatile memory is missing or corrupted. Source PLC Function Module Source details None Detection At power ON or timing Controller reset Error attributes Level Major fault...
  • Page 214 5 Troubleshooting Event name Main Memory Check Error Event code 10080000 hex Meaning An error was detected in the memory check of the main memory in the CPU Unit. Source PLC Function Module Source details None Detection Continuously timing Error attributes Level Major fault Recovery...
  • Page 215 5 Troubleshooting Event name Data Not Saved to Battery-backup Memory Event code 100A0000 hex Meaning An error occurred in the software and data could not be saved in battery-backup memory during power-OFF process- ing. Source PLC Function Module Source details None Detection At power ON or...
  • Page 216 5 Troubleshooting Event name Non-volatile Memory Data Corrupted Event code 100B0000 hex Meaning A file that must be in non-volatile memory is missing or corrupted. Source PLC Function Module Source details None Detection At power ON or timing Controller reset Error attributes Level Major fault...
  • Page 217 None Cause and Assumed cause Correction Prevention correction An error occurred in the software. Contact your OMRON representative. None Attached None information Precautions/ None Remarks * For details, refer to I/O Operation for Major Fault Level Controller Errors on page 5-6.
  • Page 218 None Cause and Assumed cause Correction Prevention correction An error occurred in the software. Contact your OMRON representative. None Attached None information Precautions/ None Remarks * For details, refer to I/O Operation for Major Fault Level Controller Errors on page 5-6.
  • Page 219 5 Troubleshooting Event name Real-Time Clock Stopped Event code 00070000 hex Meaning The oscillation of the real-time clock stopped. The real-time clock is set to an illegal time. Source PLC Function Module Source details None Detection At power ON or timing Controller reset Error attributes...
  • Page 220 5 Troubleshooting Event name Low Battery Voltage Event code 000B0000 hex Meaning The voltage of the Battery has dropped. Source PLC Function Module Source details None Detection Continuously timing Error attributes Level Minor fault Recovery Error reset Log category System Effects User program Continues.
  • Page 221 5 Troubleshooting Event name Battery-backup Memory Check Error Event code 10090000 hex Meaning An error was detected in the memory check of the battery-backup memory in the CPU Unit. Source PLC Function Module or Motion Con- Source details PLC Function Detection At power ON or trol Function Module...
  • Page 222 The file format of the SD Memory Make sure that the correct SD Mem- Use an OMRON SD Memory Card. Card inserted in the CPU Unit is not ory Card is inserted in the CPU Unit. Do not format the SD Memory Card FAT16 or FAT32.
  • Page 223 5 Troubleshooting Event name SD Memory Card Restored or Formatted Event code 10040000 hex Meaning An error was detected during the file system check and the file system was restored. Files may have been deleted. Source PLC Function Module Source details None Detection At power ON or...
  • Page 224 5 Troubleshooting Event name SD Memory Card Data Corrupted Event code 10060000 hex Meaning A file that must be in the SD Memory Card is missing or corrupted. Source PLC Function Module Source details None Detection At power ON or timing Controller reset Error attributes...
  • Page 225 5 Troubleshooting Event name SD Memory Card Access Power OFF Error Event code 10070000 hex Meaning The power supply to the Controller was interrupted during access to the SD Memory Card. Source PLC Function Module Source details None Detection At power ON or timing Controller reset Error attributes...
  • Page 226 5 Troubleshooting Errors Related to CJ-series Unit Configuration Event name I/O Bus Check Error Event code 04010000 hex Meaning An error occurred in a bus line transmission between the CPU Unit and the Units in the rack slots. Or, detection of all Special I/O Units and CPU Bus Units was not completed when the power supply to the Controller was turned ON.
  • Page 227 5 Troubleshooting Event name Unsupported Unit Detected Event code 24010000 hex Meaning An unsupported CJ-series Unit or Power Supply Unit is mounted. Source PLC Function Module Source details I/O bus master Detection At power ON or timing Controller reset Error attributes Level Major fault Recovery...
  • Page 228 5 Troubleshooting Event name End Cover Missing Event code 24030000 hex Meaning The End Cover is not connected to right end of the CPU Rack or an Expansion Rack. Source PLC Function Module Source details I/O bus master Detection Continuously timing Error attributes Level...
  • Page 229 5 Troubleshooting Event name Duplicate Unit Number Event code 24050000 hex Meaning The same unit number is set for more than one Special I/O Unit or more than one CPU Bus Unit. Source PLC Function Module Source details I/O bus master Detection At power ON or timing...
  • Page 230 None Cause and Assumed cause Correction Prevention correction An error occurred in the software. Contact your OMRON representative. None Attached Attached information 1: System information information Attached information 2: System information Attached information 3: System information Attached information 4: System information...
  • Page 231 5 Troubleshooting Event name Impossible to Access Special Unit Event code 64010000 hex Meaning An error occurred in data exchange between the CPU Unit and a Special Unit. Source PLC Function Module Source details CJ-series Unit Detection Continuously timing Error attributes Level Minor fault Recovery...
  • Page 232 5 Troubleshooting Event name CJ-series Unit Backup Failed Event code 102D0000 hex* Meaning The backup operation for a CJ-series Unit ended in an error. Source PLC Function Module Source details I/O bus master Detection During backup timing operation Error attributes Level Observation Recovery...
  • Page 233 5 Troubleshooting Event name CJ-series Unit Restore Operation Failed Event code 102E0000 hex* Meaning The restore operation for a CJ-series Unit ended in an error. Source PLC Function Module Source details I/O bus master Detection During restore timing operation Error attributes Level Observation Recovery...
  • Page 234 5 Troubleshooting Event name Unsupported Unit Setting Event code 30200000hex* Meaning A setting in the Special Unit is not supported. Source PLC Function Module Source details I/O bus master Detection Continuously timing Error attributes Level Observation Recovery Log category System Effects User program Continues.
  • Page 235 5 Troubleshooting Event name PLC System Information Event code 04020000 hex Meaning This event provides internal information from the PLC Function Module. Source PLC Function Module Source details I/O bus master Detection Continuously timing Error attributes Level Information Recovery Log category System Effects User program...
  • Page 236 5 Troubleshooting Errors Related to Controller Operation Event name User Program/Controller Configurations and Setup Trans- Event code 10200000 hex fer Error Meaning The user program or Controller Configurations and Setup were not transferred correctly. Source PLC Function Module Source details None or I/O bus Detection At power ON or...
  • Page 237 5 Troubleshooting Event name Illegal User Program Execution ID Event code 10210000 hex Meaning The user program execution IDs set in the user program and in the CPU Unit do not match. Source PLC Function Module Source details None Detection At user program timing download, power...
  • Page 238 5 Troubleshooting Event name Illegal User Program/Controller Configurations and Setup Event code 10250000 hex Meaning The upper limit of the usable memory was exceeded or the user program or Controller Configurations and Setup is cor- rupted. Source PLC Function Module Source details None Detection...
  • Page 239 5 Troubleshooting Event name Error in Starting Automatic Transfer Event code 10270000 hex Meaning An error was detected in pre-execution checks for automatic transfer. Source PLC Function Module Source details None Detection At power ON timing Error attributes Level Major fault Recovery Cycle the power Log category...
  • Page 240 5 Troubleshooting Cause and The model of the CPU Unit to which Replace the CPU Unit with a CPU Make sure that the model of the CPU correction to transfer the files is not the same as Unit that has the same model as the Unit is the same as the model of the the model of the CPU Unit of the CPU Unit that was used to create the...
  • Page 241 5 Troubleshooting Event name Error in Executing Automatic Transfer Event code 10280000 hex Meaning The automatic transfer ended in an error. Source PLC Function Module Source details None Detection At power ON timing Error attributes Level Major fault Recovery Cycle the power Log category System supply or reset...
  • Page 242 5 Troubleshooting Event name SD Memory Card Program Transfer Pre-execution Check Event code 10330000 hex Error Meaning An error was detected in pre-execution checks for transferring SD Memory Card programs. Source PLC Function Module Source details None Detection Before SD Mem- timing ory Card pro- grams are...
  • Page 243 5 Troubleshooting Cause and Assumed cause Correction Prevention correction The model of the CPU Unit to which Replace the CPU Unit with a CPU Make sure that the model of the CPU to transfer the files is not the same as Unit that has the same model as the Unit is the same as the model of the the model of the CPU Unit of the...
  • Page 244 5 Troubleshooting Attached Attached Information 1: Error Details information 0001 hex: An SD Memory Card is not inserted. 0002 hex: The SD Memory Card is faulty, the format of the SD Memory Card is not correct, or the SD Memory Card is not the correct type of card.
  • Page 245 5 Troubleshooting Event name Error in Executing SD Memory Card Program Transfer Event code 10340000 hex Meaning The SD Memory Card program transfer ended in an error. Source PLC Function Module Source details None Detection During SD Mem- timing ory Card program transfers Error attributes Level...
  • Page 246 None Cause and Assumed cause Correction Prevention correction An error occurred in the software. Contact your OMRON representative. None Attached Attached information 1: System information information Attached Information 2: System information Attached information 3: System information Attached information 4: System information...
  • Page 247 None Cause and Assumed cause Correction Prevention correction An error occurred in the software. Contact your OMRON representative. None Attached Attached information 1: System information information Attached Information 2: System information Attached information 3: System information Attached information 4: System information...
  • Page 248 None Cause and Assumed cause Correction Prevention correction An error occurred in the software. Contact your OMRON representative. None Attached Attached information 1: System information information Attached Information 2: System information Attached information 3: System information Attached information 4: System information...
  • Page 249 5 Troubleshooting Event name Trace Setting Transfer Failure Event code 10260000 hex Meaning The power supply was interrupted while transferring the trace settings. Source PLC Function Module Source details None Detection At power ON or timing Controller reset Error attributes Level Observation Recovery...
  • Page 250 5 Troubleshooting Cause and The SD Memory Card is damaged. If none of the above causes applies, Do not remove the SD Memory Card correction replace the SD Memory Card. or turn OFF the power supply while the SD BUSY indicator is lit. Replace the SD Memory Card periodically according to the write life of the SD Memory Card.
  • Page 251 5 Troubleshooting Event name Backup Failed Event code 102A0000 hex* Meaning The backup operation ended in an error. Source PLC Function Module Source details None Detection During backup timing operation Error attributes Level Observation Recovery Log category System Effects User program Continues.
  • Page 252 5 Troubleshooting * This event code occurs for unit version 1.03 or later of the CPU Unit. 5-72 NJ-series CPU Unit Hardware User’s Manual (W500)
  • Page 253 5 Troubleshooting Event name Restore Operation Failed to Start Event code 102B0000 hex* Meaning An error was detected in pre-execution checks for a restore operation. Source PLC Function Module Source details None Detection When restoring timing data is specified by the user Error attributes Level Observation...
  • Page 254 5 Troubleshooting Cause and The SD Memory Card is damaged. If none of the above causes applies, Do not remove the SD Memory Card correction replace the SD Memory Card. or turn OFF the power supply while the SD BUSY indicator is lit. Replace the SD Memory Card periodically according to the write life of the SD Memory Card.
  • Page 255 5 Troubleshooting Attached Attached information 1: Operation type information 0101 hex: SD Memory Card to Controller for switch operation on front of CPU Unit 0102 hex: SD Memory Card to Controller for specification with a system-defined variable 0201 hex: Computer to Controller Attached Information 2: Error Details 0001 hex: An SD Memory Card is not inserted.
  • Page 256 5 Troubleshooting Event name Restore Operation Failed Event code 102C0000 hex* Meaning The restore operation ended in an error. Source PLC Function Module Source details None Detection During restore timing operation Error attributes Level Observation Recovery Log category System Effects User program Operation Not affected.
  • Page 257 5 Troubleshooting Event name SD Memory Card Program Transfer Failed to Start Event code 1032 0000 hex Meaning An error was detected in pre-start checks for transferring SD Memory Card programs. Source PLC Function Module Source details None Detection When transfer- timing ring SD Memory Card programs is...
  • Page 258 5 Troubleshooting Cause and Assumed cause Correction Prevention correction The unit version of the CPU Unit to Replace the CPU Unit with a CPU Make sure that the unit version of the which to transfer the files is older than Unit that has a unit version that is the CPU Unit and the unit version of the the unit version of the backup files on...
  • Page 259 5 Troubleshooting Attached Attached Information 1: Error Details information 0001 hex: An SD Memory Card is not inserted. 0002 hex: The SD Memory Card is faulty, the format of the SD Memory Card is not correct, or the SD Memory Card is not the correct type of card.
  • Page 260 5 Troubleshooting Event name Restore Pre-execution Check Failure Event code 103E 0000 hex Meaning An error was detected in pre-execution checks for specification with system-defined variables for the SD Memory Card restore operation. Source PLC Function Module Source details None Detection Before the timing...
  • Page 261 5 Troubleshooting Cause and Assumed cause Correction Prevention correction The CPU Unit is write-protected. If you transfer SD Memory Card pro- If you transfer SD Memory Card pro- grams, select the Do not use Option grams, select the Do not use Option for the Write protection at startup set- for the Write protection at startup set- ting of the CPU Unit.
  • Page 262 5 Troubleshooting Event name PLC System Information Event code 40140000 hex Meaning This event provides internal information from the PLC Function Module. Source PLC Function Module Source details None Detection Continuously timing Error attributes Level Observation Recovery Log category System Effects User program Continues.
  • Page 263 5 Troubleshooting Event name NX Message Communications Error Event code 80230000 hex* Meaning An error has occurred in message communications. Source PLC Function Module Source details None Detection During NX mes- timing sage communi- EtherCAT Master Function Module cations EtherNet/IP Function Module Error attributes Level Observation...
  • Page 264 5 Troubleshooting Event name PLC System Information Event code 44430000 hex* Meaning This event provides internal information from the PLC Function Module. Source PLC Function Module Source details None Detection Continuously timing Error attributes Level Information Recovery Log category System Effects User program Continues.
  • Page 265 5 Troubleshooting Event name User Program/Controller Configurations and Setup Down- Event code 90050000 hex* loaded Meaning The user program and the Controller configurations and setup were downloaded. Source PLC Function Module Source details None Detection During user pro- timing gram/Controller configurations and setup down- load...
  • Page 266 5 Troubleshooting Event name Variable Changed to TRUE with Forced Refreshing Event code 90080000 hex Meaning Changing a variable to TRUE with forced refreshing was specified. Source PLC Function Module Source details None Detection Commands from timing user Error attributes Level Information Recovery...
  • Page 267 5 Troubleshooting Event name Memory All Cleared Event code 900B0000 hex Meaning All of memory was cleared. Source PLC Function Module Source details None Detection Commands from timing user Error attributes Level Information Recovery Log category Access Effects User program Operation Operation returns to the factory state.
  • Page 268 5 Troubleshooting Event name Power Turned ON Event code 90110000 hex Meaning The power supply was turned ON. Source PLC Function Module Source details None Detection At power ON timing Error attributes Level Information Recovery Log category System Effects User program ---- Operation Operation starts.
  • Page 269 5 Troubleshooting Event name Operation Stopped Event code 90140000 hex Meaning Operation was stopped. Source PLC Function Module Source details None Detection When changing timing to PROGRAM mode Error attributes Level Information Recovery Log category System Effects User program Stops. Operation User program execution stops.
  • Page 270 5 Troubleshooting Event name All Controller Errors Cleared Event code 90180000 hex Meaning All current errors were cleared. Source PLC Function Module Source details None Detection Commands from timing user Error attributes Level Information Recovery Log category Access Effects User program Continues.
  • Page 271 5 Troubleshooting Event name Backup Completed Event code 901B0000 hex* Meaning The backup operation ended normally. Source PLC Function Module Source details None Detection At end of normal timing backup operation Error attributes Level Information Recovery Log category System Effects User program Continues.
  • Page 272 5 Troubleshooting Event name Restore Operation Completed Event code 901D0000 hex* Meaning The restore operation ended normally. Source PLC Function Module Source details None Detection At end of normal timing restore operation Error attributes Level Information Recovery Log category System Effects User program Operation...
  • Page 273 5 Troubleshooting Event name SD Memory Card Program Transfer Completed Event code 90210000 hex Meaning Transferring the SD Memory Card programs was completed. Source PLC Function Module Source details None Detection When transfer- timing ring SD Memory Card programs is completed Error attributes Level...

  • Page 274: Troubleshooting Errors That Are Not In The Cpu Unit

    5 Troubleshooting 5-2-5 Troubleshooting Errors That Are Not in the CPU Unit Input Units Abnormal condition Cause Correction None of the inputs turn 1. The external input power is not sup- Supply suitable input power. ON and the operation plied. indicators do not light.
  • Page 275 5 Troubleshooting Abnormal condition Cause Correction Abnormal operation 1. Loose screws on the common termi- Tighten the screws. occurs for the input points for the same com- 2. Faulty contact on the terminal block or Replace the terminal block or mon (8 or 16 points).
  • Page 276 5 Troubleshooting Abnormal condition Cause Correction A specific output does 1. The output bit is used in more than one Correct the user program so that not turn OFF and the Out instruction in the user program. only one Out instruction controls operation indicator is lit.

  • Page 277: Inspection And Maintenance

    Inspection and Maintenance This section describes the required inspections and maintenance. It also describes the service lives and replacement procedures for the Battery and Power Supply Units. 6-1 Periodic Maintenance and Inspection ......6-2 6-1-1 Periodic Inspection .

  • Page 278: Periodic Maintenance And Inspection

    6 Inspection and Maintenance Periodic Maintenance and Inspection Daily or periodic inspections are required in order to maintain the Controller's functions in peak operat- ing condition. 6-1-1 Periodic Inspection Although the major components in NJ-series Controllers have an extremely long life time, they can deteriorate under improper environmental conditions.

  • Page 279: Unit Replacement Precautions

    • If you return a faulty Unit for repair, describe the problem in as much detail as possible, enclose this description with the Unit, and return the Unit to your OMRON representative. • For poor contact, take a clean cotton cloth, soak the cloth in industrial alcohol, and carefully wipe the contacts clean.

  • Page 280: Replacing The Battery

    6 Inspection and Maintenance Replacing the Battery The Battery in the NJ-series CPU Unit must be replaced periodically as preventative maintenance. (The Battery is a backup power supply for the CPU Unit's internal clock and the variables that are retained during power interruptions.) This section describes how to replace the Battery.
  • Page 281 6 Inspection and Maintenance Low Battery Indicators If the Controller Setup has been set to detect a low-battery error, the ERROR indicator on the front of the CPU Unit will flash when the battery is nearly discharged. If the ERROR indicator flashes, connect the Sysmac Studio, and then check the CPU Unit's Battery connection if the Sysmac Studio shows a Low Battery Voltage, Battery-backup Memory Check Error, or Real-Time Clock Stopped event.
  • Page 282 6 Inspection and Maintenance Replacement Procedure Use the following procedure to replace the battery when the previous battery has become completely discharged. Precautions for Safe Use We recommend replacing the battery with the power OFF to prevent the CPU Unit's sensitive internal components from being damaged by static electricity.

  • Page 283: Operation Without A Battery

    6 Inspection and Maintenance Additional Information The Low Battery Voltage event is cleared automatically the next time the Controller is turned ON after replacing the Battery. 6-2-2 Operation without a Battery NJ-series CPU Units do not support a battery-free operation function such as CJ-series CPU Units. If a Battery is not connected or the Battery voltage is too low, the following operation occurs.
  • Page 284 6 Inspection and Maintenance NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 285: Appendices

    Appendices The appendices provide the specifications of the Basic I/O Units, Unit dimensions, load short-circuit protection detection, line disconnection detection, and measures for EMC Directives. A-1 Specifications ..........A-2 A-2 Specifications of Basic I/O Units .

  • Page 286: Specifications

    EU Directives, NK, LR and KC *1 This is the value when the power ON time rate is 0% (power OFF). *2 Refer to the OMRON website (http://www.ia.omron.com/) or contact your OMRON representative for the most recent applicable standards for each model.

  • Page 287: Specifications Of Basic I/O Units

    Appendices Specifications of Basic I/O Units A-2-1 Overview of Units Basic I/O Units  Basic Input Units Type of Unit Name Input specifications Model Page Basic Input DC Input Units Terminal block, 12 to 24 VDC 8 inputs CJ1W-ID201 Units Terminal block, 24 VDC, 16 inputs CJ1W-ID211...
  • Page 288 Appendices  Basic Mixed I/O Units Type of Name I/O specifications Model Page Unit Basic I/O 24-VDC Sinking Fujitsu connector 16 inputs CJ1W-MD231 A-41 Units Inputs/Transis- output Inputs: 24 VDC 16 outputs tor Output Units Outputs: 12 to 24 VDC, 0.5 A MIL connector CJ1W-MD233 A-43...

  • Page 289: Basic I/O Units

    Appendices A-2-2 Basic I/O Units Basic Input Units with Terminal Blocks  CJ1W-ID201 DC Input Unit (12 to 24-VDC, 8 Points) Name 8-point DC Input Unit with Terminal Block Model CJ1W-ID201 Rated Input Voltage 12 to 24 VDC Allowable Input Voltage Range 10.2 to 26.4 VDC Input Impedance 2.4 k...
  • Page 290 Appendices  CJ1W-ID211 DC Input Unit (24 VDC, 16 Points) Name 16-point DC Input Unit with Terminal Block Model CJ1W-ID211 Rated Input Voltage 24 VDC Allowable Input Voltage 20.4 to 26.4 VDC Range Input Impedance 3.3 k Input Current 7 mA typical (at 24 VDC) ON Voltage/ON Current 14.4 VDC min./3 mA min.
  • Page 291 Appendices  CJ1W-ID212 DC Input Unit (24 VDC, 16 Points) Name 16-point DC Input Unit with Terminal Block Model CJ1W-ID212 Rated Input Voltage 24 VDC Allowable Input Voltage Range 20.4 to 26.4 VDC Input Impedance 3.3 k Input Current 7 mA typical (at 24 VDC) ON Voltage/ON Current 14.4 VDC min./3 mA min.
  • Page 292 Appendices  CJ1W-ID231 DC Input Unit (24 VDC, 32 Points) Name 32-point DC Input Unit with Fujitsu Connector Model CJ1W-ID231 Rated Input Voltage 24 VDC Allowable Input Voltage 20.4 to 26.4 VDC Range Input Impedance 5.6 k Input Current 4.1 mA typical (at 24 VDC) ON Voltage/ON Current 19.0 VDC min./3 mA min.
  • Page 293 Appendices * The ON response time will be 20 s maximum and OFF response time will be 400 s maximum even if the response times are set to 0 ms due to internal element delays. Note Observe the following restrictions when connecting to a 2-wire sensor. •...
  • Page 294 Appendices Signal Allocated Signal Connec- Allocated CIO word name name tor pin CIO word 24 VDC COM1 COM1 Jxx_Ch2_In15 Jxx_Ch2_In07 Jxx_Ch2_In14 Jxx_Ch2_In06 Jxx_Ch2_In13 Jxx_Ch2_In05 Jxx_Ch2_In12 Jxx_Ch2_In04 Wd m+1 Wd m+1 Jxx_Ch2_In11 Jxx_Ch2_In03 Jxx_Ch2_In10 Jxx_Ch2_In02 Jxx_Ch2_In09 Jxx_Ch2_In01 Jxx_Ch2_In08 Jxx_Ch2_In00 External connection and terminal-device variable COM0 COM0...
  • Page 295 Appendices Number of Simultaneously ON Points vs. Allocated Signal Ambient Temperature Characteristic CIO word name 5.6 kΩ 32 points at 48°C Input voltage: 32 points at 40°C Jxx_Ch1_In00 24 VDC Wd m Input voltage: Jxx_Ch1_In15 26.4 VDC Connector 12 points/common row A at 55°C COM0...
  • Page 296 Appendices ON Response Time 8.0 ms max. (Can be set to between 0 and 32 ms in the Unit Information settings.) OFF Response Time 8.0 ms max. (Can be set to between 0 and 32 ms in the Unit Information settings.) Number of Circuits 64 (16 points/common, 4 circuits) Number of Simulta-...
  • Page 297 Appendices  CJ1W-ID262 DC Input Unit (24 VDC, 64 Points) Name 64-point DC Input Unit with MIL Connector Model CJ1W-ID262 Rated Input Voltage 24 VDC Allowable Input Volt- 20.4 to 26.4 VDC age Range Input Impedance 5.6 k Input Current 4.1 mA typical (at 24 VDC) ON Voltage/ON Cur- 19.0 VDC min./3 mA min.
  • Page 298 Appendices Allocated Allocated Allocated Signal Connec- Signal Signal Signal Allocated Connec- CIO word CIO word CIO word name tor pin name name name CIO word tor pin 24 VDC Jxx_Ch1_In00 Jxx_Ch1_In08 Jxx_Ch1_In01 Jxx_Ch1_In09 COM3 COM3 24 VDC Jxx_Ch1_In02 Jxx_Ch1_In10 Jxx_Ch4_In07 Jxx_Ch4_In15 Jxx_Ch1_In03 Jxx_Ch1_In11...
  • Page 299 Appendices  CJ1W-IA201 AC Input Unit (200 VAC, 8 Points) Name 8-point AC Input Unit with Terminal Block Model CJ1W-IA201 Rated Input Voltage 200 to 240 VAC 50/60 Hz Allowable Input Voltage Range 170 to 264 VAC Input Impedance 21 k (50 Hz), 18 k (60 Hz) 9 mA typical (at 200 VAC, 50 Hz), Input Current 11 mA typical (at 200 VAC, 60 Hz)
  • Page 300 Appendices  CJ1W-IA111 AC Input Unit (100 VAC, 16 points) Name 16-point AC Input Unit with Terminal Block Model CJ1W-IA111 Rated input voltage 100 to 120 VAC 50/60 Hz Allowable Input Voltage Range 85 to 132 VAC Input Impedance 14.5 k (50 Hz), 12 k (60 Hz) 7 mA typical (at 100 VAC, 50 Hz), Input Current 8 mA typical (at 100 VAC, 60 Hz)
  • Page 301 Appendices  CJ1W-INT01 Interrupt Input Unit (16 Points) Name 16-point Interrupt Input Unit with Terminal Block Model CJ1W-INT01 Rated Input Voltage 24 VDC Allowable Input Voltage Range 20.4 to 26.4 VDC Input Impedance 3.3 k Input Current 7 mA typical (at 24 VDC) ON Voltage/ON Current 14.4 VDC min./3 mA min.
  • Page 302 Appendices  CJ1W-IDP01 Quick-response Input Unit (16 Points) Name 16-point Quick-response Input Unit with Terminal Block Model CJ1W-IDP01 Rated Input Voltage 24 VDC Allowable Input Voltage Range 20.4 to 26.4 VDC Input Impedance 3.3 k Input Current 7 mA typical (at 24 VDC) ON Voltage/ON Current 14.4 VDC min./3 mA min.
  • Page 303 Appendices Basic Output Units  CJ1W-OC201 Contact Output Unit (Independent Relays, 8 Points) Name 8-point Contact Output Unit with Terminal Block (Independent Relays) Model CJ1W-OC201 Max. Switching Capacity 2 A 250 VAC (cos = 1), 2 A 250 VAC (cos = 0.4), 2 A 24 VDC (16 A/Unit) Min.
  • Page 304 Appendices  CJ1W-OC211 Contact Output Unit (16 Points) Name 16-point Contact Output Unit with Terminal Block Model CJ1W-OC211 Max. Switching Capacity 2 A 250 VAC (cos = 1), 2 A 250 VAC (cos= 0.4), 2 A 24 VDC (8 A/Unit) Min.
  • Page 305 Appendices  CJ1W-OA201 Triac Output Unit (8 Points) Name 8-point Triac Output Unit with Terminal Block Model CJ1W-OA201 Max. Switching Capacity 0.6 A 250 VAC, 50/60 Hz (2.4 A/Unit) Max. Inrush Current 15 A (pulse width: 10 ms max.) Min. Switching Capacity 50 mA 75 VAC Leakage Current 1.5 mA (200 VAC) max.
  • Page 306 Appendices  CJ1W-OD201 Transistor Output Unit (8 Points) Name 8-point Transistor Output Unit with Terminal Block (Sinking Outputs) Model CJ1W-OD201 Rated Voltage 12 to 24 VDC Operating Load Voltage Range 10.2 to 26.4 VDC Maximum Load Current 2.0 A/point, 8.0 A/Unit Maximum Inrush Current 10 A/point, 10 ms max.
  • Page 307 Appendices  CJ1W-OD203 Transistor Output Unit (8 Points) Name 8-point Transistor Output Unit with Terminal Block (Sinking Outputs) Model CJ1W-OD203 Rated Voltage 12 to 24 VDC Operating Load Voltage Range 10.2 to 26.4 VDC Maximum Load Current 0.5 A/point, 4.0 A/Unit Maximum Inrush Current 4.0 A/point, 10 ms max.
  • Page 308 Appendices  CJ1W-OD211 Transistor Output Unit (16 Points) Name 16-point Transistor Output Unit with Terminal Block (Sinking Outputs) Model CJ1W-OD211 Rated Voltage 12 to 24 VDC Operating Load Voltage Range 10.2 to 26.4 VDC Maximum Load Current 0.5 A/point, 5.0 A/Unit Maximum Inrush Current 4.0 A/point, 10 ms max.
  • Page 309 Appendices  CJ1W-OD213 Transistor Output Unit (16 Points) Name 16-point Transistor Output Unit with Terminal Block (Sinking Outputs) Model CJ1W-OD213 Rated Voltage 24 VDC Operating Load Voltage Range 20.4 to 26.4 VDC Maximum Load Current 0.5 A/point, 5.0 A/Unit Maximum Inrush Current 4.0 A/point, 10 ms max.
  • Page 310 Appendices  CJ1W-OD231 Transistor Output Unit (32 Points) Name 32-point Transistor Output Unit with Fujitsu Connector (Sinking Outputs) Model CJ1W-OD231 Rated Voltage 12 to 24 VDC Operating Load Voltage 10.2 to 26.4 VDC Range Maximum Load Current 0.5 A/point, 2.0 A/common, 4.0 A/Unit Maximum Inrush Current 4.0 A/point, 10 ms max.
  • Page 311 Appendices Connec- Signal Signal Allocated Allocated tor pin name name CIO word CIO word Jxx_Ch1_Out00 Jxx_Ch2_Out00 Jxx_Ch1_Out01 Jxx_Ch2_Out01 Jxx_Ch1_Out02 Jxx_Ch2_Out02 12 to 12 to Jxx_Ch1_Out03 Jxx_Ch2_Out03 24 VDC 24 VDC Wd m Wd m+1 Jxx_Ch1_Out04 Jxx_Ch2_Out04 Jxx_Ch1_Out05 Jxx_Ch2_Out05 Jxx_Ch1_Out06 Jxx_Ch2_Out06 Jxx_Ch1_Out07 Jxx_Ch2_Out07 COM1...
  • Page 312 Appendices Signal Allocated name CIO word Jxx_Ch1_Out00 Wd m Jxx_Ch1_Out15 COM0 COM0 Output indicator Circuit Configuration Jxx_Ch2_Out00 Wd m+1 Jxx_Ch2_Out15 COM1 COM1 Allocated Signal Connec- Signal Allocated CIO word name tor pin name CIO word 12 to 24 VDC COM1 COM1 Jxx_Ch2_Out07 Jxx_Ch2_Out15...
  • Page 313 Appendices Internal Current Consumption 220 mA max. Fuse None External Power Supply 20.4 to 26.4 VDC, 110 mA min. Weight 70 g max. Signal name Allocated CIO word Jxx_Ch1_Out00 Wd m Jxx_Ch1_Out15 COM0 COM0 Circuit Configuration Output indicator Jxx_Ch2_Out00 Wd m+1 Jxx_Ch2_Out15 COM1 COM1...
  • Page 314 Appendices  CJ1W-OD261 Transistor Output Unit (64 Points) Name 64-point Transistor Output Unit with Fujitsu Connectors (Sinking Outputs) Model CJ1W-OD261 Rated Voltage 12 to 24 VDC Operating Load 10.2 to 26.4 VDC Voltage Range Maximum Load 0.3 A/point, 1.6 A/common, 6.4 A/Unit Current Maximum Inrush 3.0 A/point, 10 ms max.
  • Page 315 Appendices Connec- Connec- Signal Signal Signal Allocated Signal Allocated Allocated Allocated tor pin tor pin name name name CIO word name CIO word CIO word CIO word Jxx_Ch3_Out00 Jxx_Ch4_Out00 Jxx_Ch3_Out01 Jxx_Ch4_Out01 COM0 COM1 Jxx_Ch3_Out02 Jxx_Ch4_Out02 12 to 12 to Jxx_Ch2_Out15 Jxx_Ch1_Out15 Jxx_Ch3_Out03 Jxx_Ch4_Out03...
  • Page 316 Appendices  CJ1W-OD263 Transistor Output Unit (64 Points) Name 64-point Transistor Output Unit with MIL Connectors (Sinking Outputs) Model CJ1W-OD263 Rated Voltage 12 to 24 VDC Operating Load Voltage 10.2 to 26.4 VDC Range Maximum Load Current 0.3 A/point, 1.6 A/common, 6.4 A/Unit Maximum Inrush Current 3.0 A/point, 10 ms max.
  • Page 317 Appendices Connec- Allocated Allocated Signal Signal Signal Connec- Signal Allocated Allocated tor pin CIO word CIO word name name name tor pin name CIO word CIO word 12 to Jxx_Ch1_Out00 Jxx_Ch1_Out08 12 to Jxx_Ch1_Out09 Jxx_Ch1_Out01 COM3 COM3 Jxx_Ch1_Out10 Jxx_Ch1_Out02 Jxx_Ch4_Out15 Jxx_Ch4_Out07 Jxx_Ch1_Out11 Jxx_Ch1_Out03...
  • Page 318 Appendices  CJ1W-OD202 Transistor Output Unit (8 Points) Name 8-point Transistor Output Unit with Terminal Block (Sourcing Outputs) Model CJ1W-OD202 Rated Voltage 24 VDC Operating Load Voltage Range 20.4 to 26.4 VDC Maximum Load Current 2 A/point, 8 A/Unit Leakage Current 0.1 mA max.
  • Page 319 Appendices Signal Signal Connec- name name tor pin Jxx_Ch1_Out00 Jxx_Ch1_Out01 Jxx_Ch1_Out02 Jxx_Ch1_Out03 24 VDC COM0 (+V) External connection and terminal- device variable diagram Jxx_Ch1_Out04 Jxx_Ch1_Out05 Jxx_Ch1_Out06 Jxx_Ch1_Out07 24 VDC COM1 (+V) • When wiring, pay careful attention to the polarity of the external power supply. The load may operate incorrectly if the polarity is reversed.
  • Page 320 Appendices  CJ1W-OD204 Transistor Output Unit (8 Points) Name 8-point Transistor Output Unit with Terminal Block (Sourcing Outputs) Model CJ1W-OD204 Rated Voltage 24 VDC Operating Load Voltage Range 20.4 to 26.4 VDC Maximum Load Current 0.5 A/point, 4.0 A/Unit Leakage Current 0.1 mA max.
  • Page 321 Appendices  CJ1W-OD212 Transistor Output Unit (16 Points) Name 16-point Transistor Output Unit with Terminal Block (Sourcing Outputs) Model CJ1W-OD212 Rated Voltage 24 VDC Operating Load Voltage Range 20.4 to 26.4 VDC Maximum Load Current 0.5 A/point, 5.0 A/Unit Maximum Inrush Current 0.1 mA max.
  • Page 322 Appendices  CJ1W-OD232 Transistor Output Unit (32 Points) Name 32-point Transistor Output Unit with MIL Connector (Sourcing Outputs) Model CJ1W-OD232 Rated Voltage 24 VDC Operating Load Voltage Range 20.4 to 26.4 VDC Maximum Load Current 0.5 A/point, 2.0 A/common, 4.0 A/Unit Leakage Current 0.1 mA max.
  • Page 323 Appendices Allocated Allocated Connec- Signal Signal CIO word CIO word tor pin name name 24 VDC COM1 (+V) COM1 (+V) Jxx_Ch2_Out15 Jxx_Ch2_Out07 Jxx_Ch2_Out14 Jxx_Ch2_Out06 Jxx_Ch2_Out13 Jxx_Ch2_Out05 Jxx_Ch2_Out12 Jxx_Ch2_Out04 Jxx_Ch2_Out11 Jxx_Ch2_Out03 Jxx_Ch2_Out10 Jxx_Ch2_Out02 Jxx_Ch2_Out09 Jxx_Ch2_Out01 Jxx_Ch2_Out08 Jxx_Ch2_Out00 COM0 (+V) COM0 (+V) Jxx_Ch1_Out15 Jxx_Ch1_Out07 External connection and termi-...
  • Page 324 Appendices Signal Allocated name CIO word COM0 COM0 Jxx_Ch1_Out00 Wd m Jxx_Ch1_Out15 CN1 (OUT) Output indicator COM1 COM1 Indicator switch Jxx_Ch2_Out00 Wd m+1 Circuit Configura- Jxx_Ch2_Out15 tion COM2 COM2 Jxx_Ch3_Out00 Wd m+2 Jxx_Ch3_Out15 CN2 (OUT) COM3 COM3 Jxx_Ch4_Out00 Wd m+3 Jxx_Ch4_Out15 Connec- Allocated...
  • Page 325 Appendices Mixed I/O Units  CJ1W-MD231 DC Input/Transistor Output Unit (24 VDC, 16 Inputs/16 Outputs) Name 16-point DC Input/16-point Transistor Output Unit with Fujitsu Connectors (Sinking Outputs) Model CJ1W-MD231 Output section (CN1) Input section (CN2) Rated Voltage 12 to 24 VDC Rated Input Voltage 24 VDC Operating Load Volt-...
  • Page 326 Appendices CN1 (OUT) CN2 (IN) Allocated Signal Signal Connector Signal Allocated Signal Connec- Allocated Allocated CIO word name name name CIO word name tor pin CIO word CIO word Jxx_Ch1_In00 Jxx_Ch1_In08 Jxx_Ch1_In01 Jxx_Ch1_In09 Jxx_Ch1_In02 Jxx_Ch1_In10 Jxx_Ch1_In03 Jxx_Ch1_In11 COM0 (0 V) COM0 (0 V) Jxx_Ch1_In04 Jxx_Ch1_In12...
  • Page 327 Appendices  CJ1W-MD233 DC Input/Transistor Output Unit (24 VDC, 16 Inputs/16 Outputs) Name 16-point DC Input/16-point Transistor Output Unit with MIL Connectors (Sinking Outputs) Model CJ1W-MD233 Output section (CN1) Input section (CN2) 12 to 24 VDC Rated Input Volt- 24 VDC Rated Voltage Operating Load Voltage 10.2 to 26.4 VDC...
  • Page 328 Appendices CN1 (OUT) CN2 (IN) Signal Connec- Signal Allocated Allocated Allocated Signal Connec- Signal Allocated CIO word CIO word name tor pin name CIO word name tor pin name CIO word Jxx_Ch1_Out00 Jxx_Ch1_Out08 Jxx_Ch1_Out01 Jxx_Ch1_Out09 COM1 COM1 Jxx_Ch1_Out02 Jxx_Ch1_Out10 Jxx_Ch1_In15 Jxx_Ch1_In07 Jxx_Ch1_Out03 Jxx_Ch1_Out11...
  • Page 329 Appendices CN1 (OUT) CN2 (IN) Signal Allocated Allocated Signal name CIO word CIO word name 5.6 kΩ Jxx_Ch1_In00 Connect Jxx_Ch1_Out00 Jxx_Ch1_In15 Connect or row A Wd m or row A COM2 Jxx_Ch1_Out15 COM2 Indicator switch COM0 Output COM0 Input indicator indicator Indicator 5.6 kΩ...
  • Page 330 Appendices  CJ1W-MD263 DC Input/Transistor Output Unit (24 VDC 32 Inputs/32 Outputs) Name 32-point DC Input/32-point Transistor Output Unit with MIL Connectors (Sinking Outputs) Model CJ1W-MD263 Output section (CN1) Input section (CN2) Rated Voltage 12 to 24 VDC Rated Input Voltage 24 VDC Operating Load 10.2 to 26.4 VDC...
  • Page 331 Appendices CN1 (OUT) CN2 (IN) Allocated Allocated Allocated Signal Connec- Signal Signal Allocated Connec- Signal CIO word CIO word CIO word name tor pin name name CIO word tor pin name 24 VDC Jxx_Ch1_Out00 Jxx_Ch1_Out08 12 to Jxx_Ch1_Out01 Jxx_Ch1_Out09 COM3 COM3 Jxx_Ch1_Out02 Jxx_Ch1_Out10...
  • Page 332 Appendices  CJ1W-MD232 DC Input/Transistor Output Unit (24 VDC, 16 inputs/16 Outputs) Name 16-point DC Input/16-point Transistor Output Unit with MIL Connectors (Sourcing Outputs) Model CJ1W-MD232 Output section (CN1) Input section (CN2) 24 VDC Rated Input Volt- 24 VDC Rated Voltage Operating Load Voltage 20.4 to 26.4 VDC Operating Input...
  • Page 333 Appendices CN1 (OUT) CN2 (IN) Signal Signal Connec- Signal Allocated Connec- Signal Allocated Allocated Allocated name name tor pin name CIO word tor pin name CIO word CIO word CIO word Jxx_Ch1_Out00 Jxx_Ch1_Out08 COM1 COM1 Jxx_Ch1_Out01 Jxx_Ch1_Out09 Jxx_Ch1_In15 Jxx_Ch1_In07 Jxx_Ch1_Out02 Jxx_Ch1_Out10 Jxx_Ch1_In14 Jxx_Ch1_In06...
  • Page 334 Appendices  CJ1W-MD563 TTL I/O Unit (32 Inputs/32 Outputs) Name 32-point Input /32-point Output TTL I/O Unit with MIL Connectors Model CJ1W-MD563 Output section (CN1) Input section (CN2) 5 VDC10% Rated Input Volt- 5 VDC10% Rated Voltage Operating Load Volt- 4.5 to 5.5 VDC 1.1 k...
  • Page 335 Appendices CN1 (OUT) CN2 (IN) Allocated Allocated Allocated Signal Connec- Signal Signal Connec- Allocated Signal CIO word CIO word CIO word name tor pin name name tor pin CIO word name 5 VDC Jxx_Ch1_Out00 Jxx_Ch1_Out08 5 VDC COM3 COM3 Jxx_Ch1_Out01 Jxx_Ch1_Out09 Jxx_Ch2_In15 Jxx_Ch2_In07...

  • Page 336: A-2-3 Precautions On Contact Output Units

    Appendices A-2-3 Precautions on Contact Output Units Service Life Expectancy The service life expectancy of the relays (NY-24W-K-IE) in the CJ1W-OC201/211 Contact Output Units depends on the type of load, the contact current, and the ambient temperature. Use the follow- ing diagrams to calculate the relay service life based on the operating conditions, and replace the relay before the end of its service life.
  • Page 337 Appendices Current Circuit Characteristic Required element If the load is a relay or solenoid, there The capacitance of the capacitor should be approx. 1 to 0.5 F per contact current of 1 A and method is a delay in the resetting time. resistance of the resistor should be approx.

  • Page 338: Connecting Connector-Terminal Block Conversion Units And I/O Relay Terminals

    Patterns for Combining Connector-Terminal Block Conversion Units and I/O Relay Terminals The following patterns can be used to connect Basic I/O Units with Connectors to OMRON Connector- Terminal Block Conversion Units and I/O Relay Terminals using OMRON Connecting Cables.  Connection Patterns for Connector-Terminal Block Conversion Units...
  • Page 339 Appendices  Connection Patterns for I/O Relay Terminals Pattern Configuration Connecting Cable I/O Relay Terminal I/O Relay Terminal I/O Relay Terminal Connecting Cable I/O Relay Terminal I/O Relay Terminal Connecting Cable Connecting Cable I/O Relay Terminal A-55 NJ-series CPU Unit Hardware User’s Manual (W500)
  • Page 340 Appendices Combinations of Connections Combinations of OMRON Connecting Cables with Connector-Terminal Block Conversion Units and I/O Relay Terminals are shown below.  Connections to Connector-Terminal Block Conversion Units Number Connec- Number Connec- I/O capac- Connecting Connector-Terminal Block Common Unit of con-...
  • Page 341 Appendices Number Connec- Number Connec- I/O capac- Connecting Connector-Terminal Block Common Unit of con- Polarity tion pat- tion dia- Cable Conversion Unit terminal nectors tern branches gram CJ1W- 64 inputs 2 Fujitsu NPN/PNP None XW2Z-B XW2D-40G6 None A-67 ID261 connectors None XW2Z-B None...
  • Page 342 Appendices Number Connec- Number Connec- I/O capac- Connecting Connector-Terminal Block Common Unit of con- Polarity tion pat- tion dia- Cable Conversion Unit terminal nectors tern branches gram CJ1W- 32 outputs 1 MIL con- None XW2Z-K XW2D-40G6 None A-71 OD233 nector None XW2Z-K XW2B-40G5...
  • Page 343 Appendices Number Connec- Number Connec- I/O capac- Connecting Connector-Terminal Block Common Unit of con- Polarity tion pat- tion dia- Cable Conversion Unit terminal nectors tern branches gram CJ1W- 16 inputs 1 Fujitsu NPN/PNP None XW2Z-A XW2D-20G6 None A-76 MD231 connector None XW2Z-A XW2B-20G5...
  • Page 344 Appendices Number Connec- Number Connec- I/O capac- Connecting Connector-Terminal Block Common Unit of con- Polarity tion pat- tion dia- Cable Conversion Unit terminal nectors tern branches gram CJ1W- 32 inputs 1 MIL con- NPN/PNP None XW2Z-K XW2D-40G6 None A-81 MD263 nector None XW2Z-K...
  • Page 345 Appendices  Connections to I/O Relay Terminals Number of Connection Number of Connecting Connection Unit I/O capacity Polarity I/O Relay Terminal connectors pattern branches Cable diagram CJ1W-ID231 32 inputs 1 Fujitsu con- XW2Z-RIC- G7TC-ID16 A-84 nector XW2Z-RIC- G7TC-IA16 CJ1W-ID232 32 inputs 1 MIL con- XW2Z-RO--D1 G7TC-ID16...
  • Page 346 Appendices Number of Connection Number of Connecting Connection Unit I/O capacity Polarity I/O Relay Terminal connectors pattern branches Cable diagram CJ1W-OD261 64 outputs 2 Fujitsu con- XW2Z-ROC- G7TC-OC16 A-87 nectors XW2Z-ROC- G7TC-OC08 XW2Z-ROC- G70D-SOC16 A-86 XW2Z-ROC- G70D-FOM16 XW2Z-ROC- G70D-VSOC16 A-85 XW2Z-ROC-...
  • Page 347 Appendices Number of Connection Number of Connecting Connection Unit I/O capacity Polarity I/O Relay Terminal connectors pattern branches Cable diagram CJ1W-MD261 32 inputs 1 Fujitsu con- XW2Z-RIC- G7TC-ID16 A-84 nector XW2Z-RIC- G7TC-IA16 32 outputs 1 Fujitsu con- XW2Z-ROC- G7TC-OC16 A-87 nector XW2Z-ROC-...
  • Page 348 Appendices Connector-Terminal Block Conversion Unit Connection Diagrams The applicable terminals on the Connector-Terminal Block Conversion Unit and external connection diagrams are provided below for Basic I/O Unit connections to Connector-Terminal Block Conversion Units.  Inputs Programma- CJ1W-ID231 Programma- CJ1W-ID231 ble Control- ble Controller ler I/O Unit I/O Unit...
  • Page 349 Appendices 2 The COM terminals are wired inside the Connec- Programma- CJ1W-ID232 tor-Terminal Block Conversion Unit. ble Control- ler I/O Unit Connector- XW2C-20G6-IO16 (2 Units) Programma- CJ1W-ID232 Terminal ble Control- Block Con- ler I/O Unit version Unit Connector- XW2D-40G6 Connecting XW2Z-N Terminal XW2D-40G6-RM...
  • Page 350 Appendices Programma- CJ1W-ID233 Programma- CJ1W-ID233 ble Control- ble Control- ler I/O Unit ler I/O Unit Connector- XW2D-40G6 Connector- XW2C-20G6-IO16 (2 Units) Terminal Terminal XW2D-40G6-RM Block Con- Block Con- version Unit version Unit Connecting XW2Z-K Connecting XW2Z-N Cables Cables Wd m (Wd (m+1)) ...
  • Page 351 Appendices Programma- CJ1W-ID261 Programma- CJ1W-ID261 ble Control- ble Control- ler I/O Unit ler I/O Unit Connector- XW2D-40G6 Connector- XW2C-20G6-IO16 (2 Units) Terminal Terminal XW2D-40G6-RF Block Con- Block Con- version Unit version Unit Connecting XW2Z-B Connecting XW2Z-D Cables Cables Wd m and m+1 (Wd m+2 and m+3) ...
  • Page 352 Appendices Programma- CJ1W-ID262 Programma- CJ1W-ID262 ble Control- ble Control- ler I/O Unit ler I/O Unit Connector- XW2D-40G6 Connector- XW2C-20G6-IO16 (2 Units) Terminal Terminal XW2D-40G6-RM Block Con- Block Con- version Unit version Unit Connecting XW2Z-K Connecting XW2Z-N Cables Cables Wd m and m+1 (Wd m+2 and m+3) ...
  • Page 353 Appendices  Outputs Programma- CJ1W-OD231 Programma- CJ1W-OD231 ble Control- ble Control- ler I/O Unit ler I/O Unit Connector- XW2D-40G6 Connector- XW2C-20G6-IO16 (2 Units) Terminal Terminal XW2D-40C6 Block Con- Block Con- version Unit version Unit XW2Z-B Connecting XW2Z-L Connecting Cables Cables XW2Z-BU Wd m (Wd (m+1))
  • Page 354 Appendices Programma- CJ1W-OD232 Programma- CJ1W-OD232 ble Control- ble Control- ler I/O Unit ler I/O Unit Connector- XW2D-40G6 Connector- XW2C-20G6-IO16 (2 Units) Terminal Terminal Block Con- Block Con- version Unit version Unit Connecting XW2Z-K Connecting XW2Z-N Cables Cables Wd m (Wd (m+1)) ...
  • Page 355 Appendices Programma- CJ1W-OD233 Programma- CJ1W-OD233 ble Control- ble Control- ler I/O Unit ler I/O Unit Connector- XW2D-40G6 Connector- XW2C-20G6-IO16 (2 Units) Terminal Terminal Block Con- Block Con- version Unit version Unit Connecting XW2Z-K Connecting XW2Z-N Cables Cables Wd m (Wd (m+1)) ...
  • Page 356 Appendices Programma- CJ1W-OD234 Programma- CJ1W-OD234 ble Control- ble Control- ler I/O Unit ler I/O Unit Connector- XW2D-40G6 Connector- XW2C-20G6-IO16 (2 Units) Terminal Terminal Block Con- Block Con- version Unit version Unit Connecting XW2Z-K Connecting XW2Z-N Cables Cables Wd m (Wd (m+1)) ...
  • Page 357 Appendices Programma- CJ1W-OD261 Programma- CJ1W-OD261 ble Control- ble Control- ler I/O Unit ler I/O Unit Connector- XW2D-40G6 Connector- XW2C-20G6-IO16 (2 Units) Terminal Terminal XW2D-40C6 Block Con- Block Con- version Unit version Unit XW2Z-B Connecting XW2Z-L Connecting Cables Cables XW2Z-BU Wd m ( CN2 ) and (m+1) (Wd (m+2)
  • Page 358 Appendices Programma- CJ1W-OD262 Programma- CJ1W-OD262 ble Control- ble Control- ler I/O Unit ler I/O Unit Connector- XW2D-40G6 Connector- XW2C-20G6-IO16 (2 Units) Terminal Terminal Block Con- Block Con- version Unit version Unit Connecting XW2Z-K Connecting XW2Z-N Cables Cables Wd m and (m+1) (Wd (m+2) and (m+3)) ...
  • Page 359 Appendices Programma- CJ1W-OD263 Programma- CJ1W-OD263 ble Control- ble Control- ler I/O Unit ler I/O Unit Connector- XW2D-40G6 Connector- XW2C-20G6-IO16 (2 Units) Terminal Terminal Block Con- Block Con- version Unit version Unit Connecting XW2Z-K Connecting XW2Z-N Cables Cables Wd m and (m+1) (Wd (m+2) ...
  • Page 360 Appendices  Inputs and Outputs Programma- CJ1W-MD231 ble Control- ler I/O Unit Connector- XW2D-20G6 Terminal Block Con- version Unit Connecting XW2Z-A Cables (OUT) Wd m COM (0 V) COM (0 V) 12 to 12 to 24 VDC 24 VDC Connection diagram (IN) Wd (m+1)
  • Page 361 Appendices Programmable Con- CJ1W-MD231 troller I/O Unit Connector-Terminal XW2C-20G6-IO16 Block Conversion Unit Connecting Cables XW2Z-A (IN) Wd m (OUT) Wd (m+1)   (Short (Short bar)   bar) COM0 (COM1) (Short bar)   Solenoid valve, etc.   Black (White) ...
  • Page 362 Appendices Programma- CJ1W-MD232 Programma- CJ1W-MD233 ble Control- ble Control- ler I/O Unit ler I/O Unit Connector- XW2D-20G6 Connector- XW2D-20G6 Terminal Terminal Block Con- Block Con- version Unit version Unit Connecting XW2Z-X Connecting XW2Z-X Cables Cables (OUT) Wd m (OUT) Wd m 12 to 12 to COM (+V)
  • Page 363 Appendices Programmable Con- CJ1W-MD261 troller I/O Unit Connector-Terminal XW2D-40G6 Block Conversion XW2D-40G6RF Unit Connecting Cables XW2Z-B (IN) (OUT) Wd (m+3) Wd (m+1) Wd (m+2) Wd m COM1 COM0 COM3 COM2 Connection diagram COM1 COM3 COM0 COM2 12 to 12 to 24 VDC 24 VDC 24 VDC...
  • Page 364 Appendices Programmable Con- CJ1W-MD261 troller I/O Unit Connector-Terminal XW2C-20G6-IO16 (2 Units) XW2C-20G6-IO16 (2 Units) Block Conversion Unit Connecting Cables XW2Z-L XW2Z-D Wd m Wd (m+2) (OUT) (Wd (m+1)) (Wd (m+3)) (IN)   (Short (Short bar)   bar) COM0 (COM1) (Short bar) ...
  • Page 365 Appendices Programmable Con- CJ1W-MD263 troller I/O Unit Connector-Terminal XW2D-40G6 Block Conversion XW2D-40G6-RM Unit Connecting Cables XW2Z-K (IN) (OUT) 12 to 24 VDC 24 VDC Wd (m+2) Wd m COM2 COM0 COM2 COM0 Connection diagram Wd (m+3) Wd (m+1) COM3 COM3 COM1 COM1 12 to...
  • Page 366 Appendices Programmable Con- CJ1W-MD263 troller I/O Unit Connector-Terminal XW2C-20G6-IO16 (2 Units) Block Conversion Unit Connecting Cables XW2Z-N Wd m Wd (m+2) (OUT) (IN) (Wd (m+1)) (Wd (m+3))   (Short (Short bar) bar)   COM0 (COM1)  (Short bar) ...
  • Page 367 Appendices Programmable Con- CJ1W-MD563 troller I/O Unit Connector-Terminal XW2D-40G6 Block Conversion XW2D-40G6-RM Unit Connecting Cables XW2Z-K (IN) (OUT) 5 VDC 5 VDC Wd (m+2) Wd m COM2 COM2 COM0 COM0 Connection diagram Wd (m+3) Wd (m+1) COM3 COM3 COM1 COM1 5 VDC 5 VDC Note 1 The +V terminals and COM terminals...
  • Page 368 Appendices Connection Diagrams for I/O Relay Terminals Connection examples and internal connection diagrams for I/O Relay Terminals connected to Basic I/O Units are shown below.  Inputs G7TC I/O Relay Terminals G7TC-ID16 G7TC-IA16 G7TC G7TC Relay side Relay side  ...
  • Page 369 Appendices  Outputs G70D-V Relay Terminals G70D-VSOC16 G70D-VSOC16+G70D-ET Power Power supply supply G70D - VSOC16 G70D - VSOC16 G70D - ET Back Back side side Output Unit Output Unit TOP VIEW TOP VIEW Note 1 They are also isolated from the Output Unit and I/O Note 1 They are also isolated from the Output Unit and I/O Relay Terminal.
  • Page 370 Appendices G70D Relay Terminals G70D-SOC16 G70D-SOC08 Power supply G70D - SOC16 Power supply G70D - SOC08 Relay side Output Unit Relay side Output Unit TOP VIEW TOP VIEW Note Every two outputs share a common. The current supplied Note 1 All outputs are independent. They are also isolated is 3 A per common.
  • Page 371 Appendices G70R Relay Terminals G7TC I/O Relay Terminals G70R-SOC08 G7TC-OC16/OC08 Power supply G7TC Power supply G70R - SOC08 Output Unit Relay side Output Unit TOP VIEW TOP VIEW Note 1 All outputs are independent. They are also iso- Note 1 All outputs are independent. They are also iso- lated from the Output Unit and I/O Relay Terminal.
  • Page 372 Appendices G7TC I/O Relay Terminals G70A-ZOC16 Relay Terminal Socket G7TC-OC16-1 G70A-ZOC16-3+G2R-1-S (16 Units) Power Power supply supply G7TC G70A - ZOC16 - 3 + G2R - 1 - S (16 Units) Relay side Relay side Output Unit Output Unit TOP VIEW TOP VIEW Note 1 The above diagram is an example with the G2R-1- Note 1 All outputs are independent.

  • Page 373: Dimensions

    Appendices Dimensions A-3-1 NJ-series CPU Units NJ501-, NJ301- and NJ101- Unit: mm A-89 NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 374: A-3-2 Nj-Series Power Supply Units

    Appendices A-3-2 NJ-series Power Supply Units NJ-PA3001 Unit: mm NJ-PD3001 Unit: mm A-90 NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 375: A-3-3 Cj-Series Basic I/O Units

    Appendices A-3-3 CJ-series Basic I/O Units 8/16-point Units with 18-terminal Terminal Blocks Unit: mm ID211 10 11 12 13 14 15 DC24V 32-point Units (Input Units and Output Units) Unit: mm Units with Fujitsu-compatible Connector (40-pin × 1) (112.5) 66.5 ID231 1 2 3 4 5 6 7...
  • Page 376 Appendices 32-point Units (24-VDC Input/Transistor Output Units) Units with Fujitsu-compatible Connector (24-pin × 2) Unit: mm (112.5) 66.5 Units with MIL Connector (20-pin × 2) 83.6 A-92 NJ-series CPU Unit Hardware User’s Manual (W500)
  • Page 377 Appendices 64-point Units (Input Units, Output Units, 24-VDC Input/Transistor Output Units, TTL I/O Units) Units with Fujitsu-compatible Connector (40-pin × 2) Unit: mm (112.5) 66.5 Units with MIL Connector (40-pin × 2) 83.6 A-93 NJ-series CPU Unit Hardware User’s Manual (W500)

  • Page 378: A-3-4 B7A Interface Unit

    Appendices A-3-4 B7A Interface Unit CJ1W-B7A Unit: mm 79.5 A-3-5 CJ-series I/O Control Unit and I/O Interface Unit Unit: mm CJ1W-IC101 CJ1W-II101 I/O Control Unit I/O Interface Unit (140) (140) II101 IC101 IC101 69.3 69.3 A-3-6 SD Memory Card Unit: mm 32±0.1 2.1±0.15 24±0.1...

  • Page 379: Load Short-Circuit Protection And Line Disconnection Detection For Cj-Series Basic I/O Units

    Appendices Load Short-circuit Protection and Line Disconnection Detection for CJ- series Basic I/O Units A-4-1 Load Short-circuit Protection and Line Disconnection Detection for CJ1W-OD202 This section describes the load short-circuit protection and line disconnection detection of the CJ1W- OD202 Output Units. As shown below, normally when the output bit (OUT) turns ON, the transistor will turn ON and then out- put current (Iout) will flow.
  • Page 380 Appendices Figure 3 Operation for Disconnected Line with Output Current below the Line Disconnection Detection Current A: Load not connected or load line broken. B: Current to load at or below line disconnection detection current. C: Rise of current to load too slow and error detected before the disconnection detection current was reached.
  • Page 381 Appendices  Programming Example In this example, CJ1W-OD202 is mounted in slot 0 of rack 0. This example shows how to change output Jxx_Ch0_Out00 to FALSE immediately if the Alarm Out- put Bit _CJB_IOUnitInfo[0,0,0] changes to TRUE and how to keep the output FALSE until the cause is removed and the bit is reset with RstOD202.

  • Page 382: A-4-2 Load Short-Circuit Protection For Cj1W-Od204/Od212/Od232/Md232

    Appendices A-4-2 Load Short-circuit Protection for CJ1W- OD204/OD212/OD232/MD232 As shown below, normally when the output bit turns ON (OUT), the transistor will turn ON and then out- put current (Iout) will flow. If the output current (Iout) exceeds the detection current (Ilim) when an over- load or short-circuit occurs, the output current (Iout) will be limited as shown in Figure 2.
  • Page 383 Appendices  Restrictions If a short-circuit occurs in an external load, immediately turn OFF the corresponding output and remove the cause. An alarm output bit that corresponds to the external load output number is turned ON. There is an alarm output bit for every common. When an alarm output bit turns ON, use a self-holding bit for the alarm in the user program and turn OFF the corresponding output.

  • Page 384: Emc Directive Measures For Relay Outputs

    Appendices EMC Directive Measures for Relay Outputs The NJ-series Controllers conform to the Common Emission Standards (EN 61131-2) of the EMC Directives. However, noise generated by relay output switching may not satisfy these Standards when the Controller is incorporated into a system. In such a case, a noise filter must be connected to the load side or other appropriate countermeasures must be provided external to the Controller.
  • Page 385 Appendices Current Circuit Characteristic Required element The varistor method prevents the Varistor method imposition of high voltage between the contacts by using the constant voltage characteristic of the varis- tor. There is a delay in the resetting time. Power supply If the supply voltage is 24 or 48 V, insert the varistor in parallel with the load.

  • Page 386: System-Defined Variables Related To Hardware

    Appendices System-defined Variables Related to Hardware System-defined variables are assigned specific functions by the system. They are registered in the global variable table, or the local variable table for each POU, in advance. The variable names cannot be changed. Some of the variables start with an underbar and some start with ”P_”.

  • Page 387: Version Information

    Appendices Version Information This section describes the relationship between the unit versions of CPU Units and the Sysmac Studio versions, and the functions that are supported for each unit version. A-7-1 Relationship between Unit Versions of CPU Units and Sysmac Studio Versions This section describes how the unit versions of CPU Units correspond to Sysmac Studio versions.
  • Page 388 Appendices Specifications When Not Using the Sysmac Studio Version That Corresponds to the Unit Version of the CPU Unit The specifications when you do not use the Sysmac Studio version that corresponds to the unit version of the CPU Unit are given in this section. ...

  • Page 389: A-7-2 Relationship Between Hardware Revisions Of Cpu Units And Sysmac Studio Versions

    Appendices Additional Information Unit Version Settings for Project Devices • With Sysmac Studio version 1.02 or higher, you can select the unit version in the Select Device Area of the relevant dialog boxes. • You can select any unit version that is the same as or earlier than the unit version of the CPU Unit.

  • Page 390: A-7-3 Functions That Were Added Or Changed For Each Unit Version

    Appendices A-7-3 Functions That Were Added or Changed for Each Unit Version This section gives the functions that were added or changed for each unit version of the CPU Unit.  Additions and Changes to Functional Specifications The following table gives the unit version of the CPU Units and the Sysmac Studio version for each addition or change to the functional specifications.
  • Page 391 Appendices Sysmac Addition/ Unit Function Studio Reference change version version Communica- EtherNet/ TCP/IP FTP client Addition 1.08 1.09 NJ/NX-series CPU tions IP port applications Unit Built-in Ether- Net/IP Port User’s Manual (Cat. No. W506) EtherCAT port Addition 1.10 1.12 NJ/NX-series CPU Packet monitoring Unit Built-in Ether- (NJ301-)
  • Page 392 Appendices  Addition of Mountable CJ-series Units The CJ-series Units that can be mounted have increased for the new unit version of the CPU Unit. For details, refer to CJ-series Configuration Units on page 2-11.  Additions and Changes to Basic Instructions and Motion Control Instructions The basic instructions and motion control instructions that you can use have increased or changed for the new unit version of the CPU Unit.

  • Page 393: A-7-4 Performance Improvements For Unit Version Upgrades

    Appendices A-7-4 Performance Improvements for Unit Version Upgrades This section introduces the functions for which performance was improved for each unit version of the CPU Unit and for each Sysmac Studio version. Performance Sysmac Stu- Function Unit version value dio version Program- Program Quantities...
  • Page 394 Appendices *5 The performance improvement applies only to an NJ301- CPU Unit. The maximum numbers of axes for single-axis control for the NJ501- are as follows: NJ501-5: 64 axes, NJ501-4: 32 axes, and NJ501-3: 16 axes *6 Here, pps means “packets per second” and indicates the number of packets that can be processed in one sec- ond.
  • Page 395 Index Index-1 NJ-series CPU Unit Hardware User’s Manual (W500)
  • Page 396 Index Index Controller components connecting ............. 4-14 CPU Rack ..............2-5 abnormal conditions ...........5-94, 5-95 CPU Unit assumed causes ........5-13, 5-16, 5-18 components and functions ........3-3 resetting ..............5-3 watchdog timer error ..........5-3 CPU Unit Overheat ............5-40 B7A communications specifications ......
  • Page 397 Index GR terminal ............3-16, 4-30 operation grounding ............4-30, 4-56 before operation-ready status ......... 4-2 output wiring precautions ............4-42 I/O Bus Check Error ............ 5-46 I/O Connecting Cables ........2-11, 4-19 I/O Relay Terminals periodic inspection ............6-2 connecting ............4-38, A-54 Peripheral USB port ............
