Chapter 4

BIOS Advanced Setup Screen

Main Advanced
Advanced Settings
CPU Configuration
Chipset Configuration
Video Function Configuration
IDE Configuration
Super IO Configuration
USB Configuration
PCI PnP Configuration
Remote Access Configuration
Watchdog Timer Configuration
VXX.XX (C) Copyright 1985-20XX, American Megatrends, Inc.
•
CPU Configuration
Manufacture: Intel

Brand String: Intel® Atom processor X.XXGHz

Frequency: X.XXGHz

FSB Speed: XXXMHz

Cache L1: XXkB

Cache L2: XXXXkB

Ratio Actual Value: XX

Max CPUID Limit [Disabled; Enabled]

Execute - Disable Bit Capability [Disabled; Enabled]

Hyper Threading Technology [Disabled; Enabled]

Intel (R) Speed Step (TM) Technology [Disabled; Enabled] - (Available only on the N455 model)

Intel (R) C-State Technology [Disabled; Enabled] - (Available only on the N455 model)

Enhanced C-States [Disabled; Enabled] - (Available only on the N455 model)

•
Chipset Configuration
North Bridge Chipset Configuration

• PCIMMIO Allocation: XGB to XXXXMB
• DRAM Frequency [Auto; Max MHz]
• Configure DRAM Timing by SPD [Enabled; Disabled]
38
BIOS Setup Utility
Power Boot Security

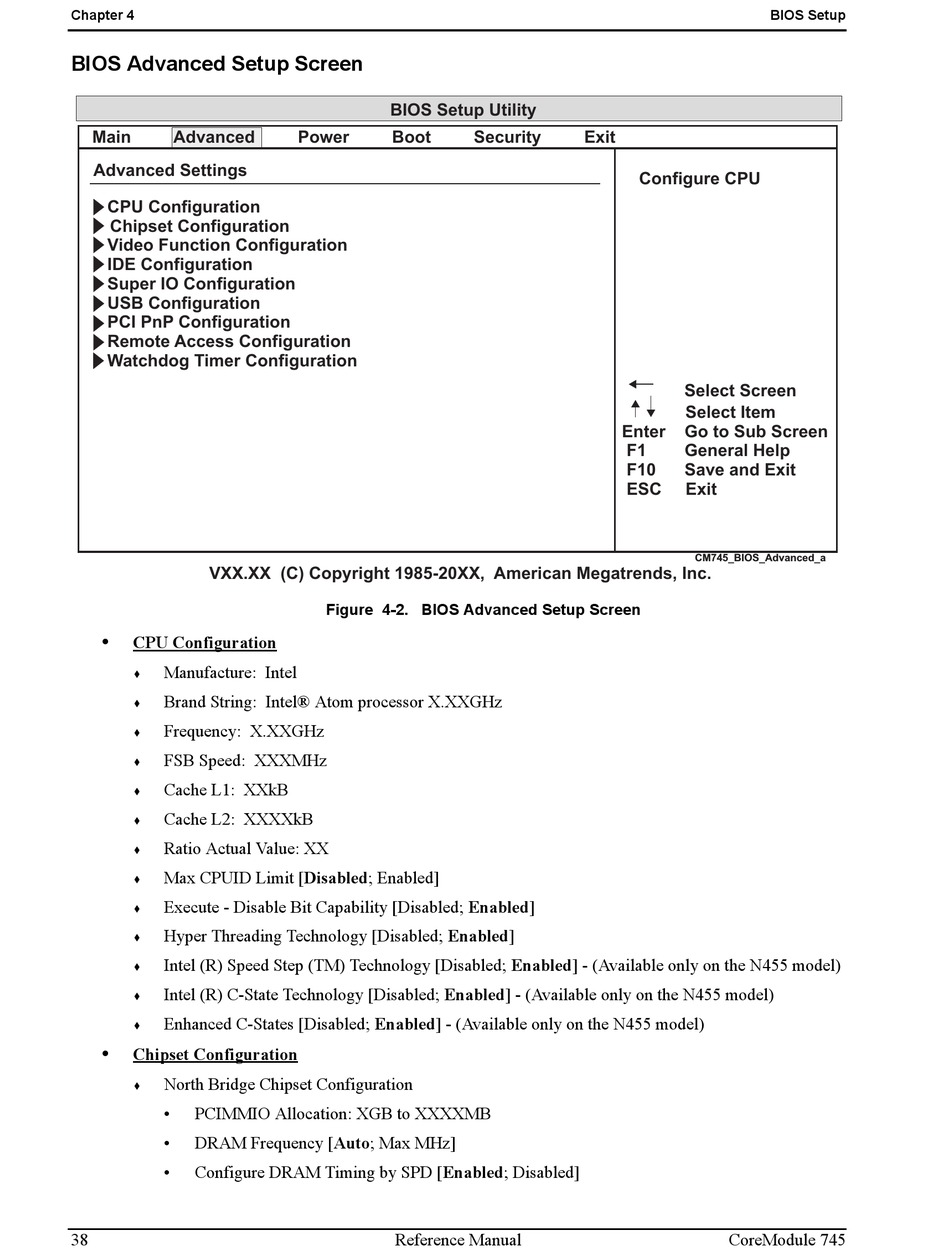

Figure 4-2. BIOS Advanced Setup Screen

Reference Manual
Exit
Configure CPU
Select Screen
Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
CM745_BIOS_Advanced_a
CoreModule 745
BIOS Setup
