Chapter 2

Header, Connector, and Socket Definitions

Table 2-2 describes the headers, connectors, and sockets shown in
(2.54mm) pitch unless otherwise indicated.

Table 2-2. Header, Connector, and Socket Descriptions

Reference #
J2 – Memory
J3 – Ethernet
J5 – SUMIT A
J6 – SUMIT B
J7 – VGA
J8 – LVDS
J9 – IDE
J10 – Compact Flash
(on back of the board;
see Figure 2-4)
CoreModule 730
J10

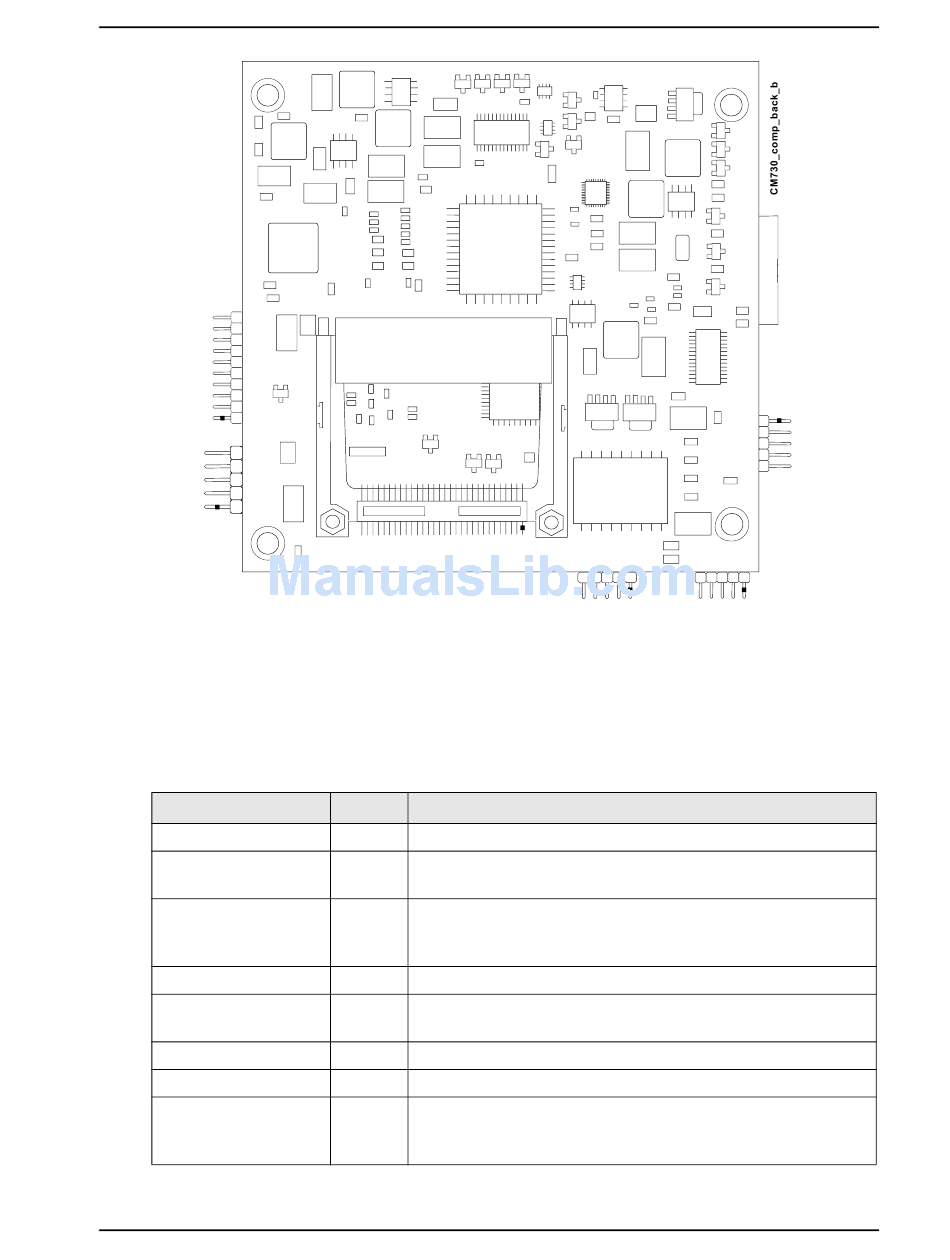

Figure 2-4. Component Locations (Back View)

Access Description
Front 200-pin, 0.024" (0.60mm) socket for DDR2 SDRAM SODIMM
Front 10-pin, 0.079" (2mm), right-angle header for 10/100/1000BaseT
Gigabit Ethernet port
Front 52-pin, 0.025" (0.635mm) connector for out-going USB, PCIe,
Power, ACPI, SMBus, I2C, SPI, LPC, Serial, Keyboard, Mouse,
and Clock signals
Front 52-pin, 0.025" (0.635mm) connector for PCIe and Power
Front 12-pin, 0.079" (2mm), right-angle, shrouded header for Video
Out
Front 20-pin, 0.079" (2mm), right-angle header for Video Out
Front 44-pin, standard header for primary IDE interface
Back 50-pin, 0.050" (1.27mm) socket for Type I or II Compact Flash
cards
Reference Manual
Product Overview
T1
Figure 2-6. All I/O interfaces use 0.100"
9
