STM32L162VC, STM32L162RC
6.1.7
Optional LCD power supply scheme
1. Option 1: LCD power supply is provided by a dedicated VLCD supply source, VSEL switch is open.
2. Option 2: LCD power supply is provided by the internal step-up converter, VSEL switch is closed, an
external capacitance is needed for correct behavior of this converter.
6.1.8
Current consumption measurement

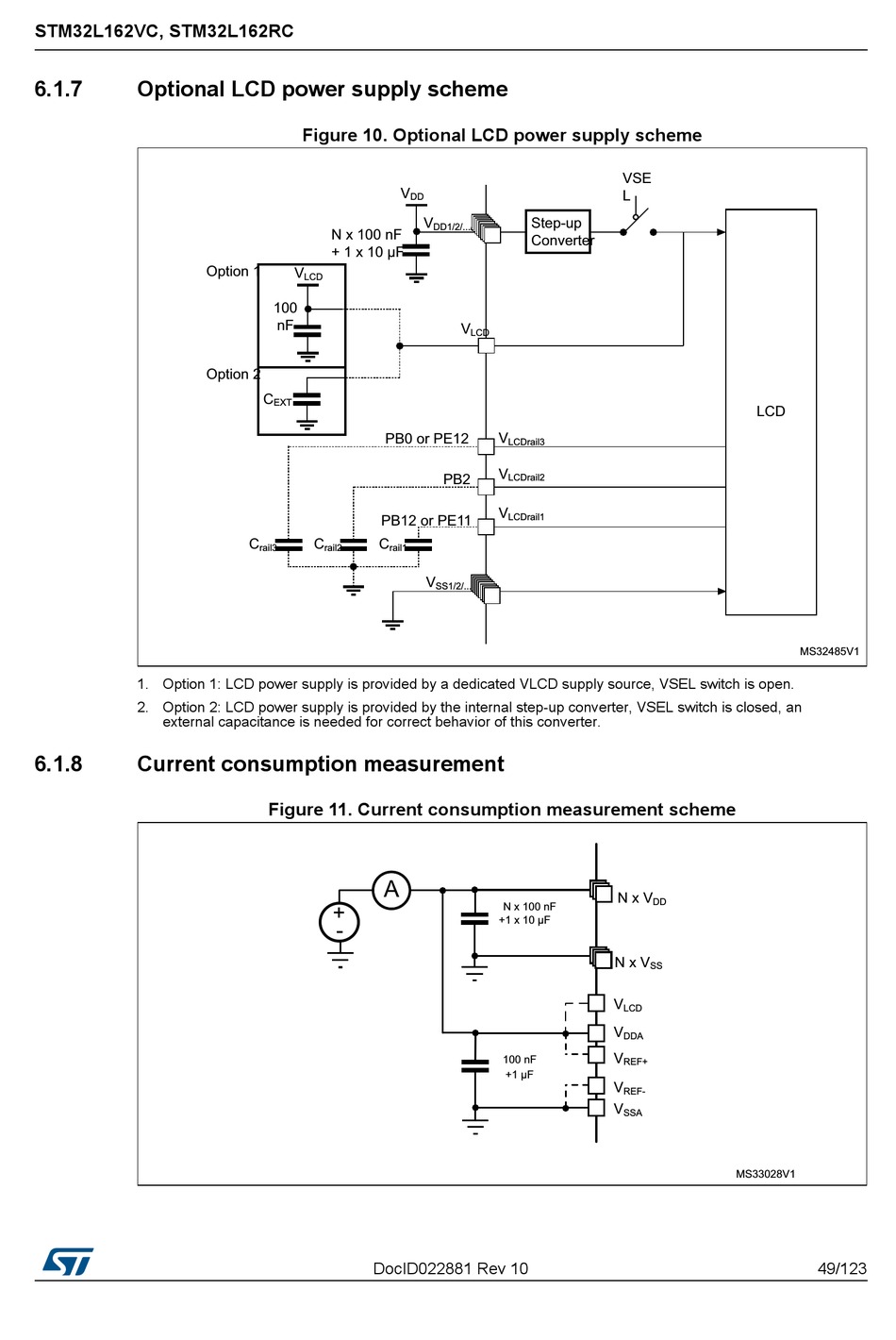

Figure 10. Optional LCD power supply scheme
Figure 11. Current consumption measurement scheme
DocID022881 Rev 10
49/123
104
