Electrical characteristics
6.1.7
Optional LCD power supply scheme
1. Option 1: LCD power supply is provided by a dedicated VLCD supply source, VSEL switch is open.
2. Option 2: LCD power supply is provided by the internal step-up converter, VSEL switch is closed, an
external capacitance is needed for correct behavior of this converter.
6.1.8
Current consumption measurement
58/134

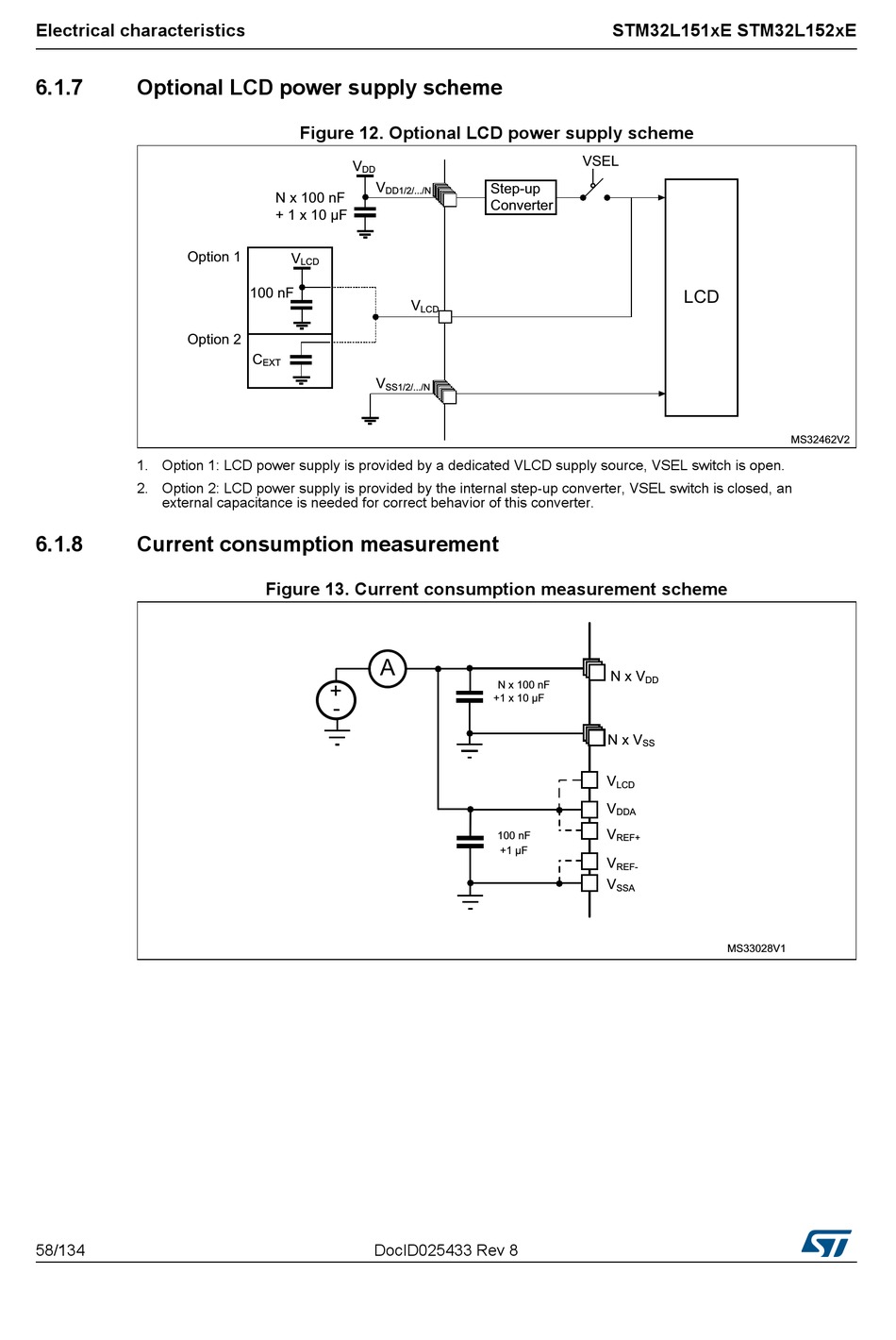

Figure 12. Optional LCD power supply scheme
Figure 13. Current consumption measurement scheme
DocID025433 Rev 8
STM32L151xE STM32L152xE
