Electrical characteristics
6.1.7
Optional LCD power supply scheme
1. Option 1: LCD power supply is provided by a dedicated VLCD supply source, VSEL switch is open.
2. Option 2: LCD power supply is provided by the internal step-up converter, VSEL switch is closed, an
external capacitance is needed for correct behavior of this converter.
6.1.8
Current consumption measurement
42/104
微可Vicor——值得信赖的元器件供应商

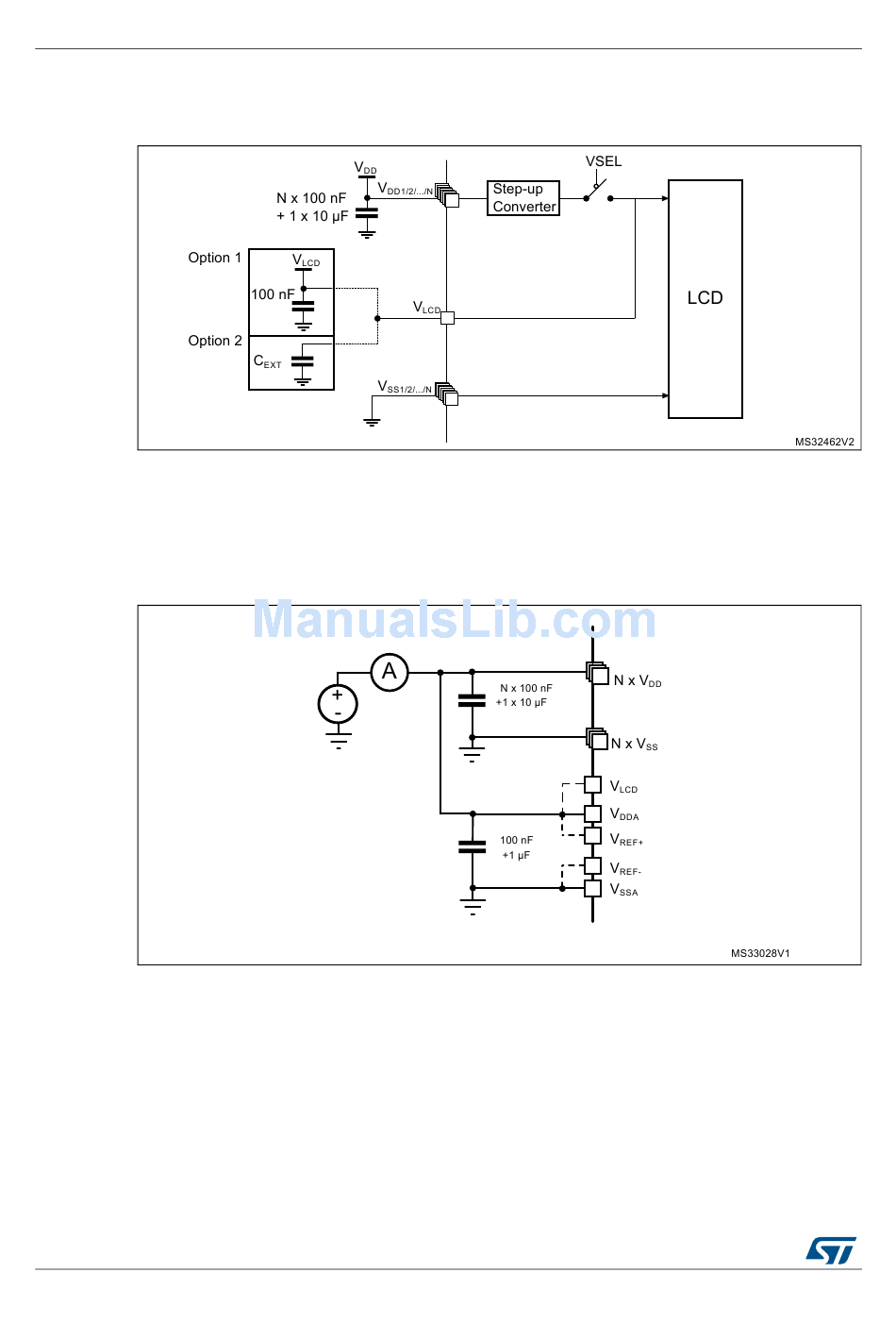

Figure 8. Optional LCD power supply scheme
Figure 9. Current consumption measurement scheme
DocID024995 Rev 4
