Figure 21. Spi Timing Diagram - Master Mode (1) - STMicroelectronics STM32L162RC Manual

Ultra-low-power 32-bit mcu arm-based cortex -m3, 256kb flash, 32kb sram, 8kb eeprom, lcd, usb, adc, dac, aes

Table of Contents

STM32L162VC, STM32L162RC

(1)

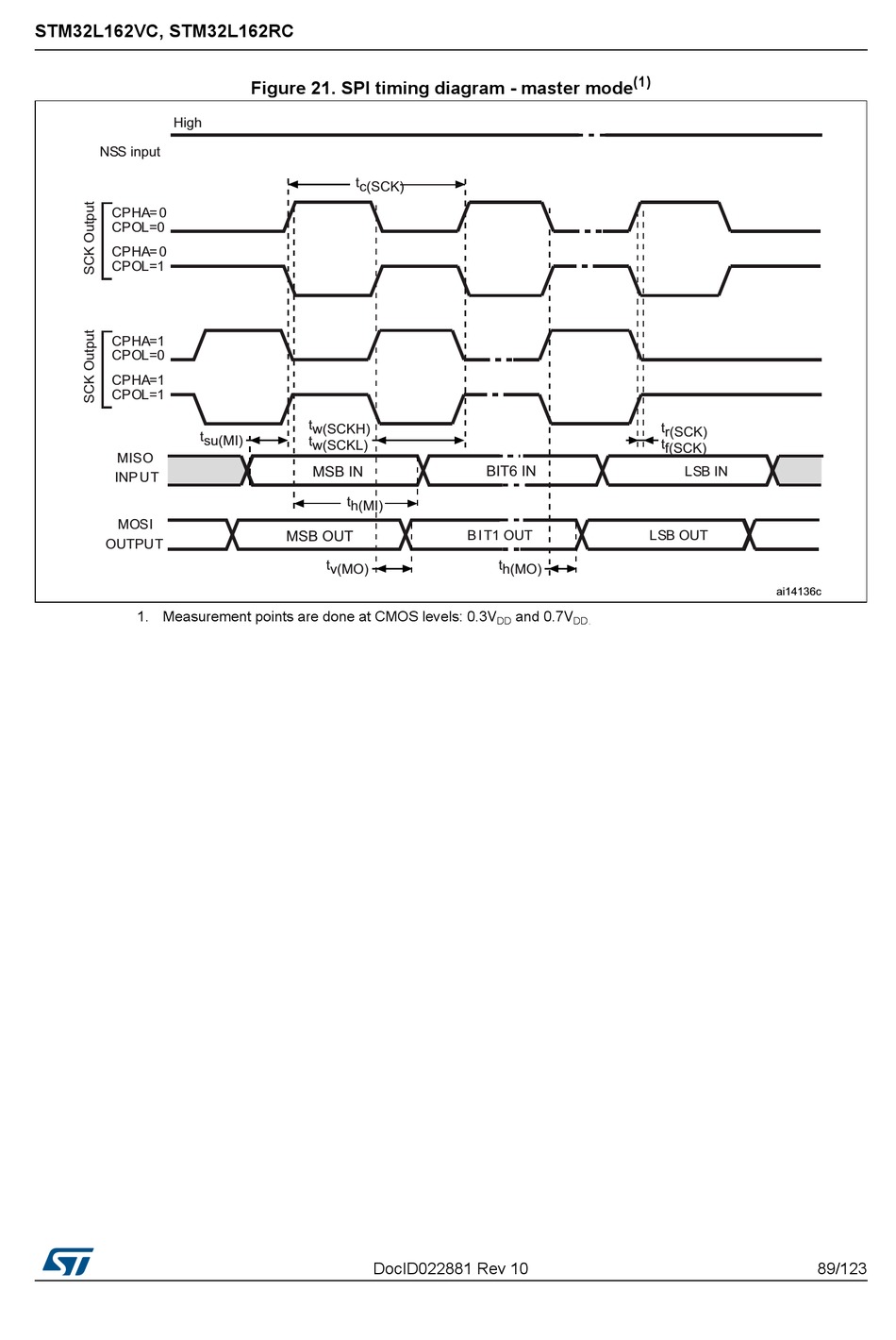

Figure 21. SPI timing diagram - master mode

1. Measurement points are done at CMOS levels: 0.3V

and 0.7V

DD.

DocID022881 Rev 10

89/123

104
