STM32L151xC/C-A STM32L152xC/C-A
6.1.7
Optional LCD power supply scheme
1. Option 1: LCD power supply is provided by a dedicated VLCD supply source, VSEL switch is open.
2. Option 2: LCD power supply is provided by the internal step-up converter, VSEL switch is closed, an
external capacitance is needed for correct behavior of this converter.
6.1.8
Current consumption measurement

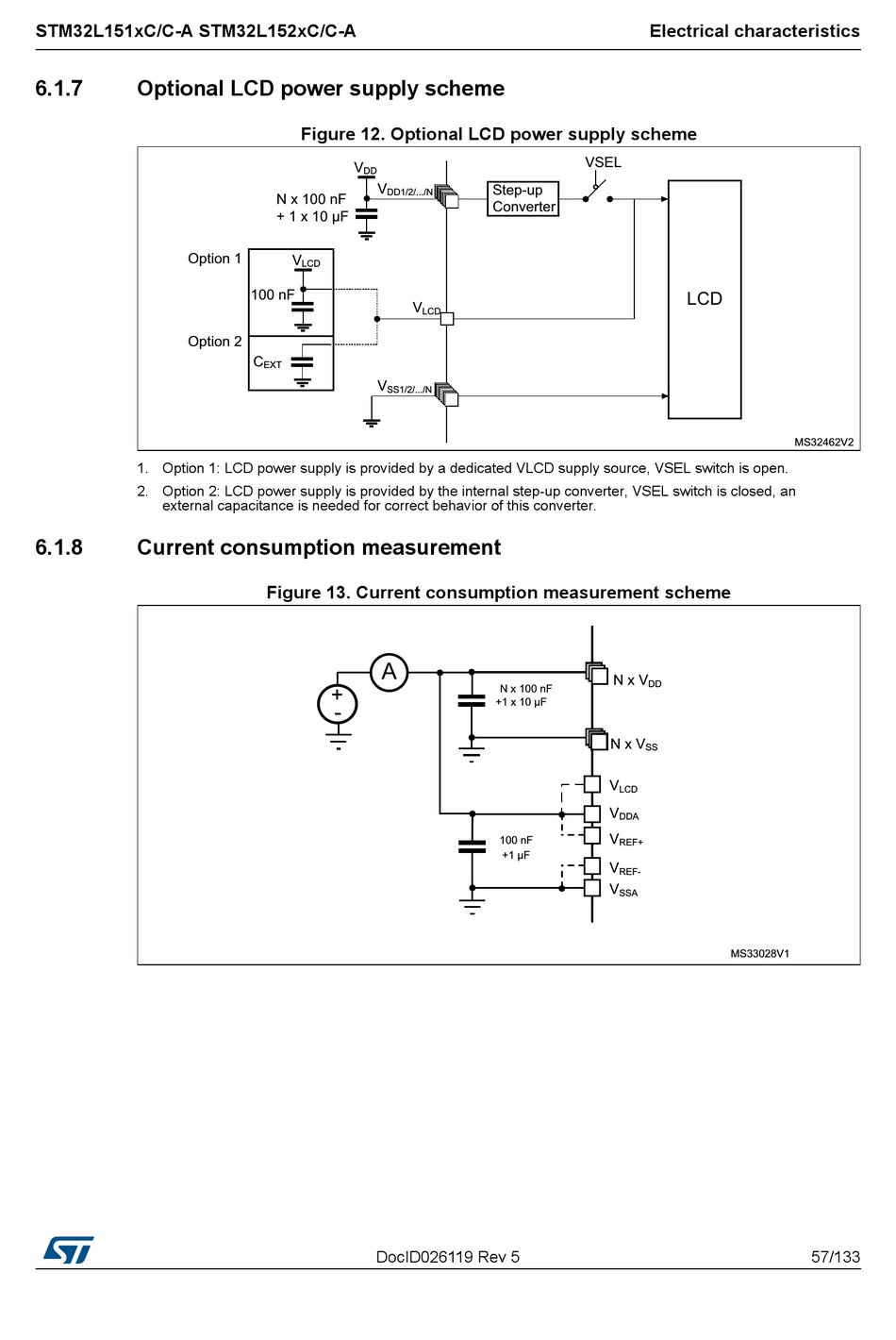

Figure 12. Optional LCD power supply scheme
Figure 13. Current consumption measurement scheme
DocID026119 Rev 5
Electrical characteristics
57/133
113
