3.4

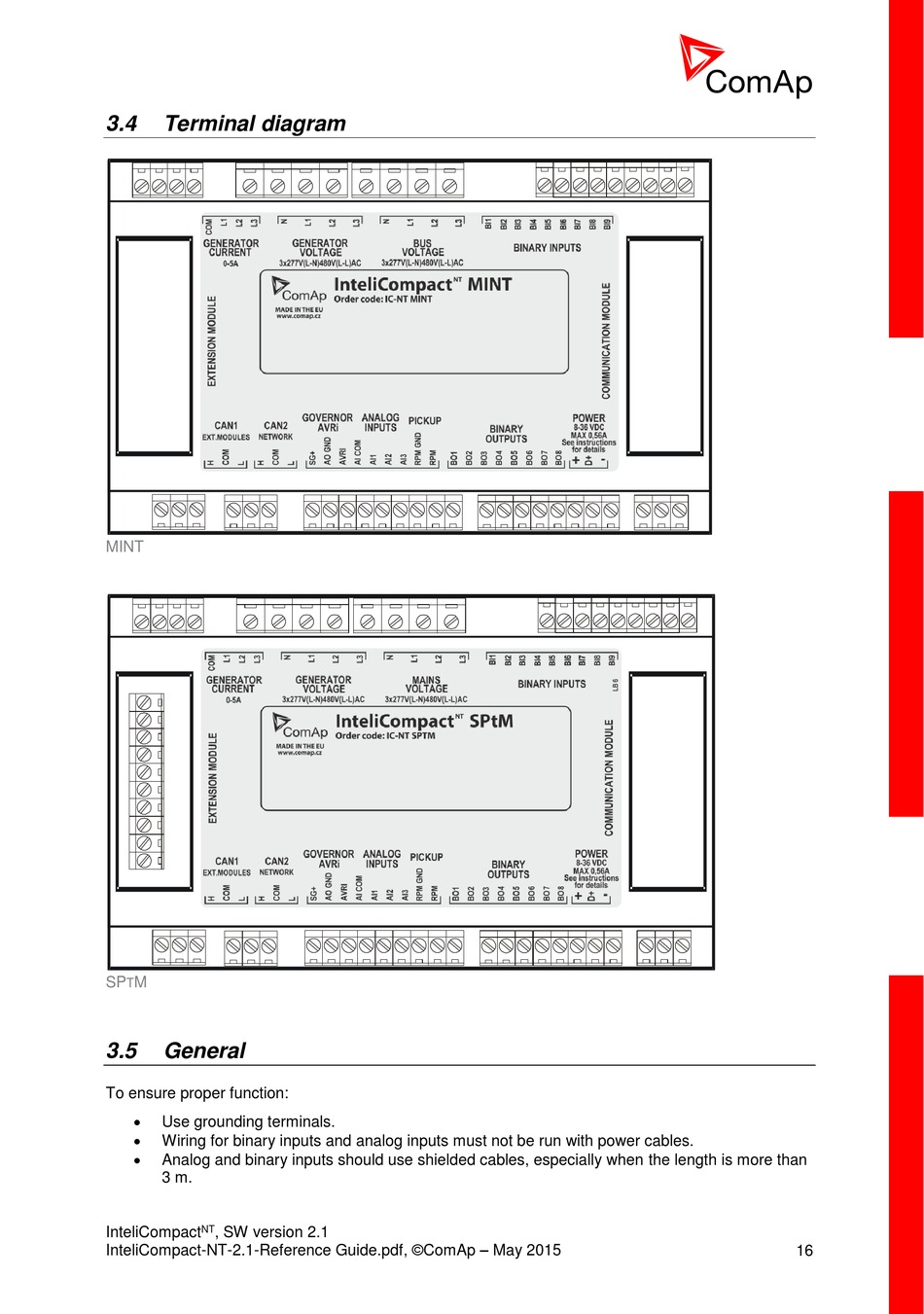

Terminal diagram

MINT
SP M
T
3.5

General

To ensure proper function:

Use grounding terminals.

Wiring for binary inputs and analog inputs must not be run with power cables.

Analog and binary inputs should use shielded cables, especially when the length is more than
3 m.
NT
InteliCompact , SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp – May 2015
16
