3.24 Emergency Stop

The Emergency Stop function can be made in two ways:

Connecting a normally closed "mushroom-type" button to the binary input
This is a purely software solution.

A hard-wired solution, where the button also disconnects the power supply from the controller
outputs.
OUTPUTS
SUPPRESION DIODES ARE NOT INDICATED, BUT
REQUIRED!
H -

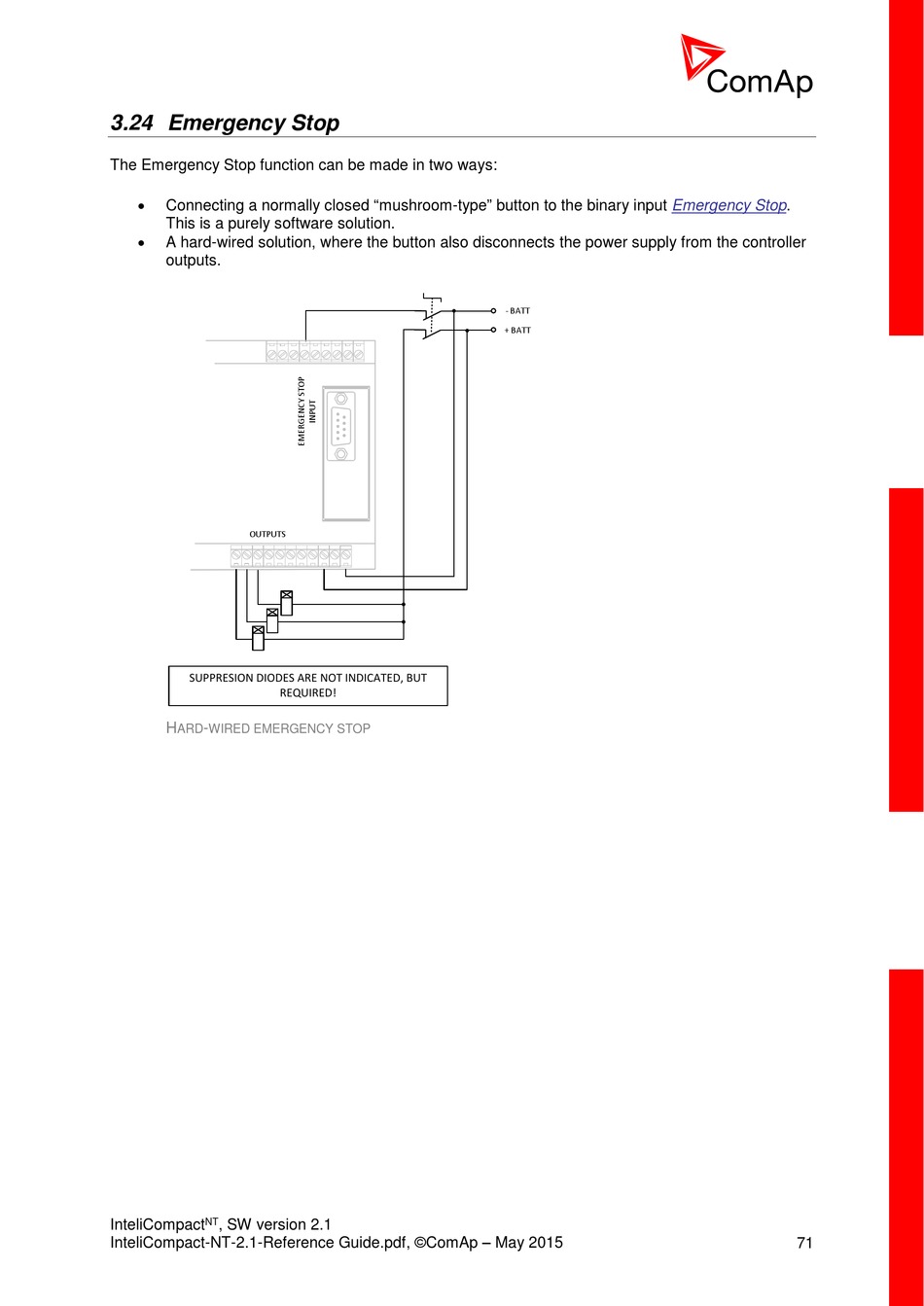

ARD WIRED EMERGENCY STOP
NT
InteliCompact , SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp – May 2015
Emergency
- BATT
+ BATT
Stop.
