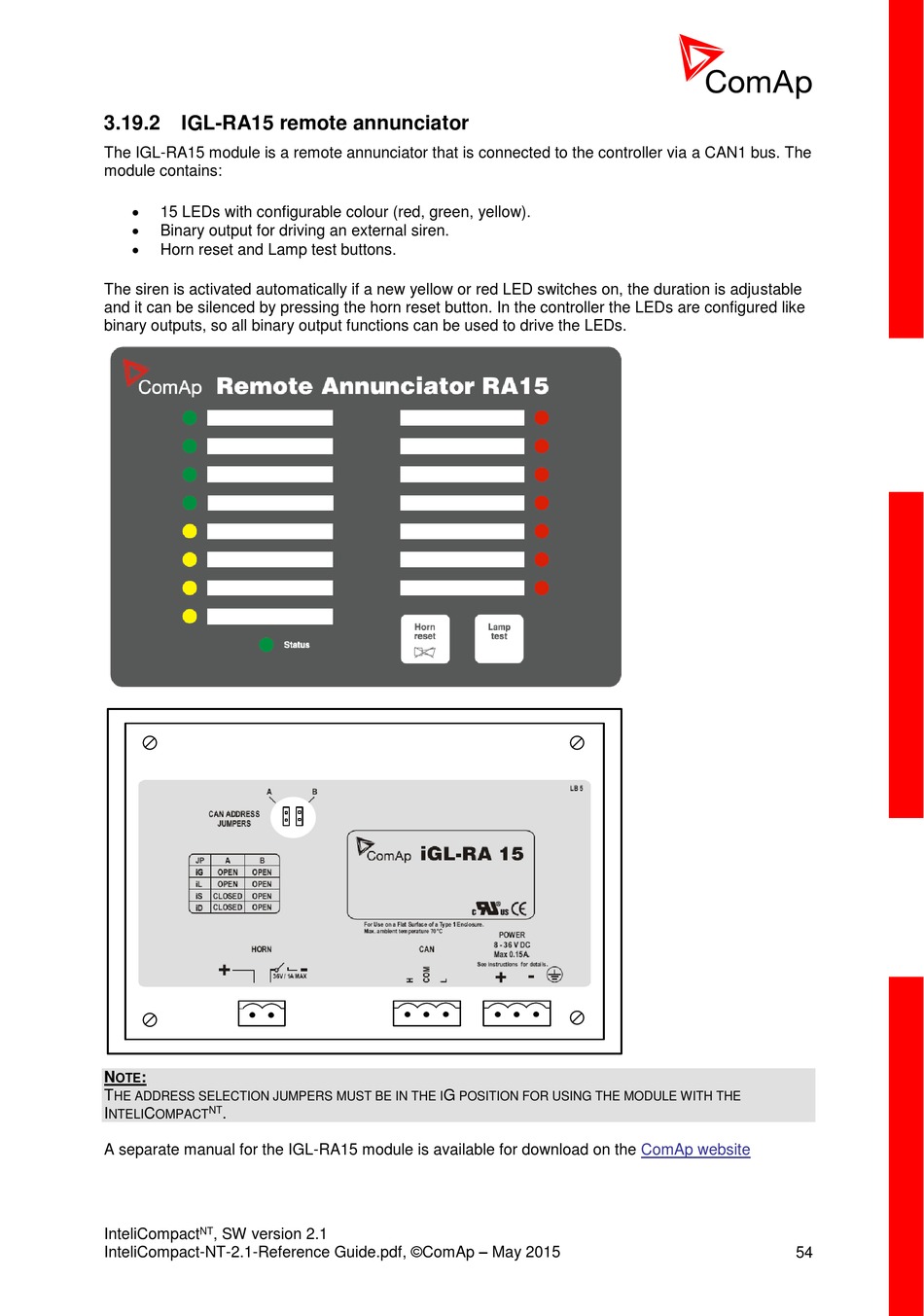

3.19.2 IGL-RA15 remote annunciator

The IGL-RA15 module is a remote annunciator that is connected to the controller via a CAN1 bus. The
module contains:

15 LEDs with configurable colour (red, green, yellow).

Binary output for driving an external siren.

Horn reset and Lamp test buttons.
The siren is activated automatically if a new yellow or red LED switches on, the duration is adjustable
and it can be silenced by pressing the horn reset button. In the controller the LEDs are configured like
binary outputs, so all binary output functions can be used to drive the LEDs.
N :
OTE
T
HE ADDRESS SELECTION JUMPERS MUST BE IN THE I
NT
I C .
NTELI OMPACT
A separate manual for the IGL-RA15 module is available for download on the
NT
InteliCompact , SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp – May 2015
G
POSITION FOR USING THE MODULE WITH THE
ComAp website
