ComAp InteliCompact NT Reference Manual page 41

Sincro
Sincro AVR BL3 or BL4
18VAC
COM
POT
EXT
OUT1
Kutai
Kutai EA448
18VAC
COM
ST4
OUT1

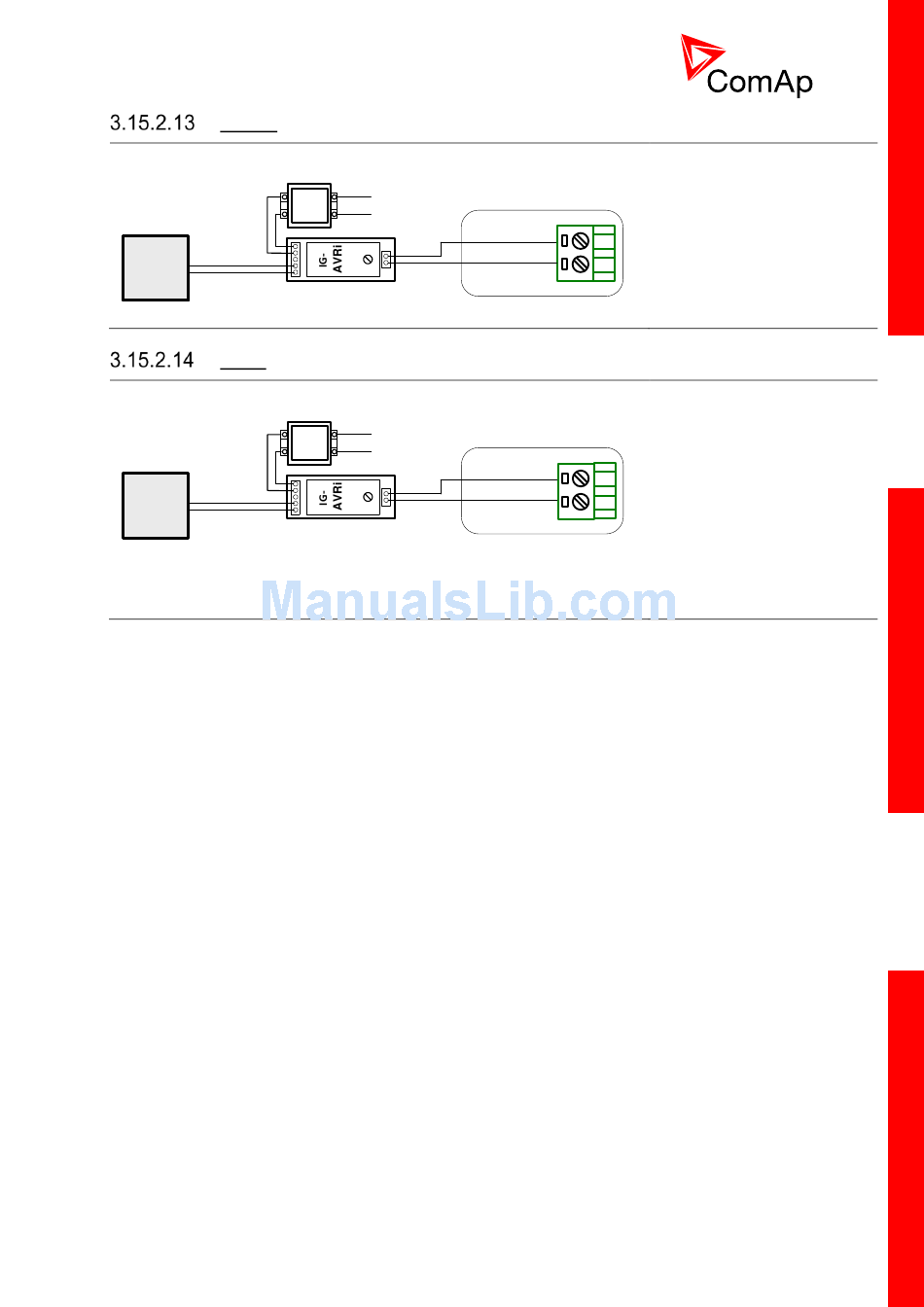

AVRi output is connected instead of Remote voltage trimmer 470Ω to
terminals ST4. Module R726 is not required.
NT
InteliCompact , SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp – May 2015
From
230/400VAC
IG- AVRi
generator
0VAC
TRANS
AVRI
AO GND
From
230/400VAC
IG- AVRi
generator
0VAC
TRANS
AVRI
AO GND
AVRi trim to middle position
Volt/PF ctrl:
AO GND
AVR Bias = 20%
AVRI
AVRi trim to minimum counter
clockwise.
AO GND
Volt/PF ctrl:
AVRI
AVR Bias = 50%
