3.20.4 IB-Lite

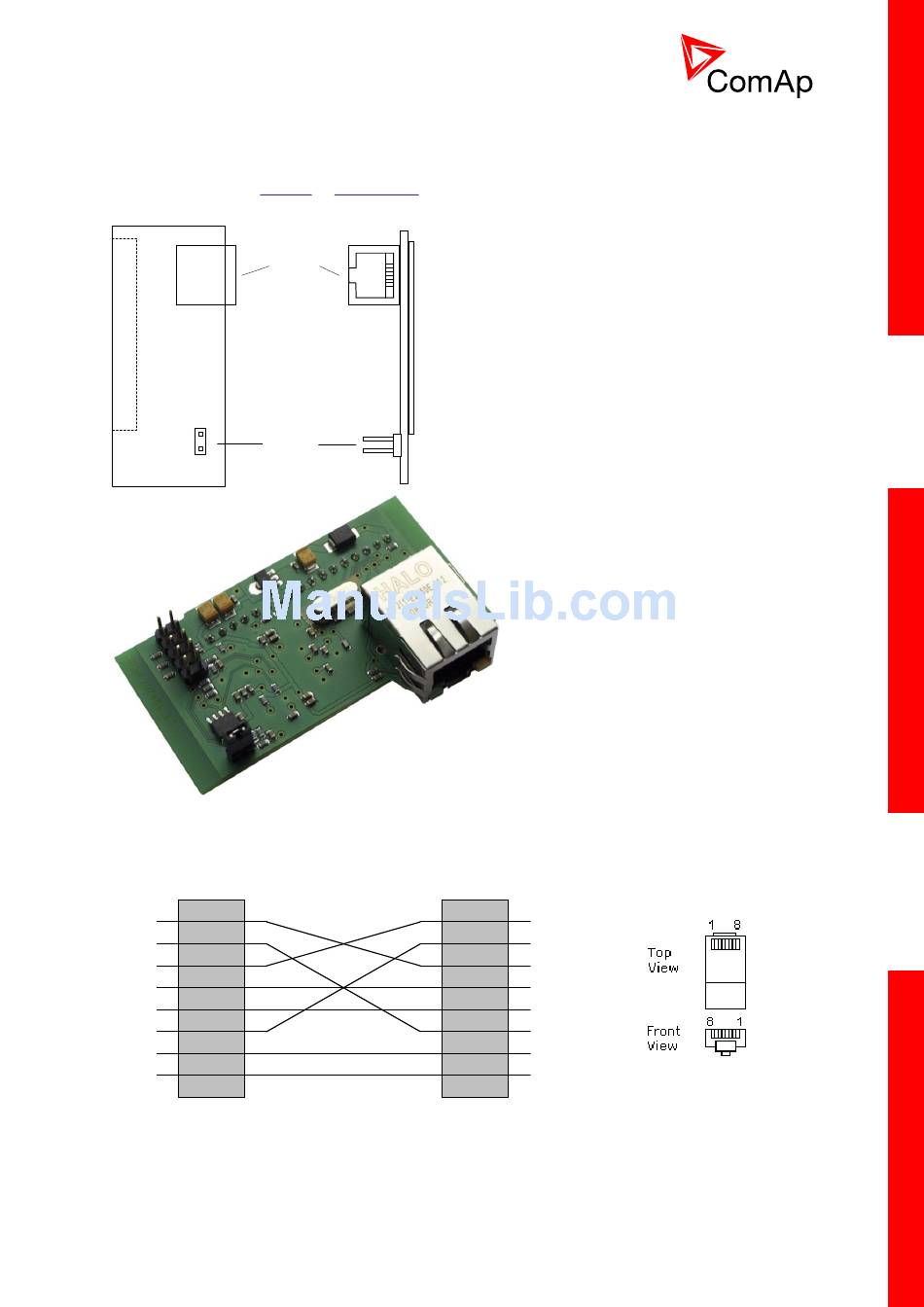

IB-Lite is a plug-in module with Ethernet 10/100 Mbit interface in RJ45 connector. The module is
internally connected to both COM1 and COM2 serial channels and provides an interface for
connecting a PC with LiteEdit
e-mails and for integration of the controller into a building management (Modbus/TCP protocol).
Ethernet
"Restore
default
settings"
jumper
IB-L
ITE MODULE
Use an Ethernet UTP cable with a RJ45 connector for linking the module with your Ethernet network.
The module can also be connected directly to a PC using cross-wired UTP cable.
RJ45
1
2
3
4
5
6
7
8
CROSS-WIRED UTP 10/100Mbit
C - UTP
ROSS WIRED CABLE
NT
InteliCompact , SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp – May 2015
or InteliMonitor through an Ethernet/internet network, for sending active
RJ45
RJ45
CABLE
1
2
3
4
5
6
7
8
