Diagnosis
Diagnostics using LEDs
6.1.4

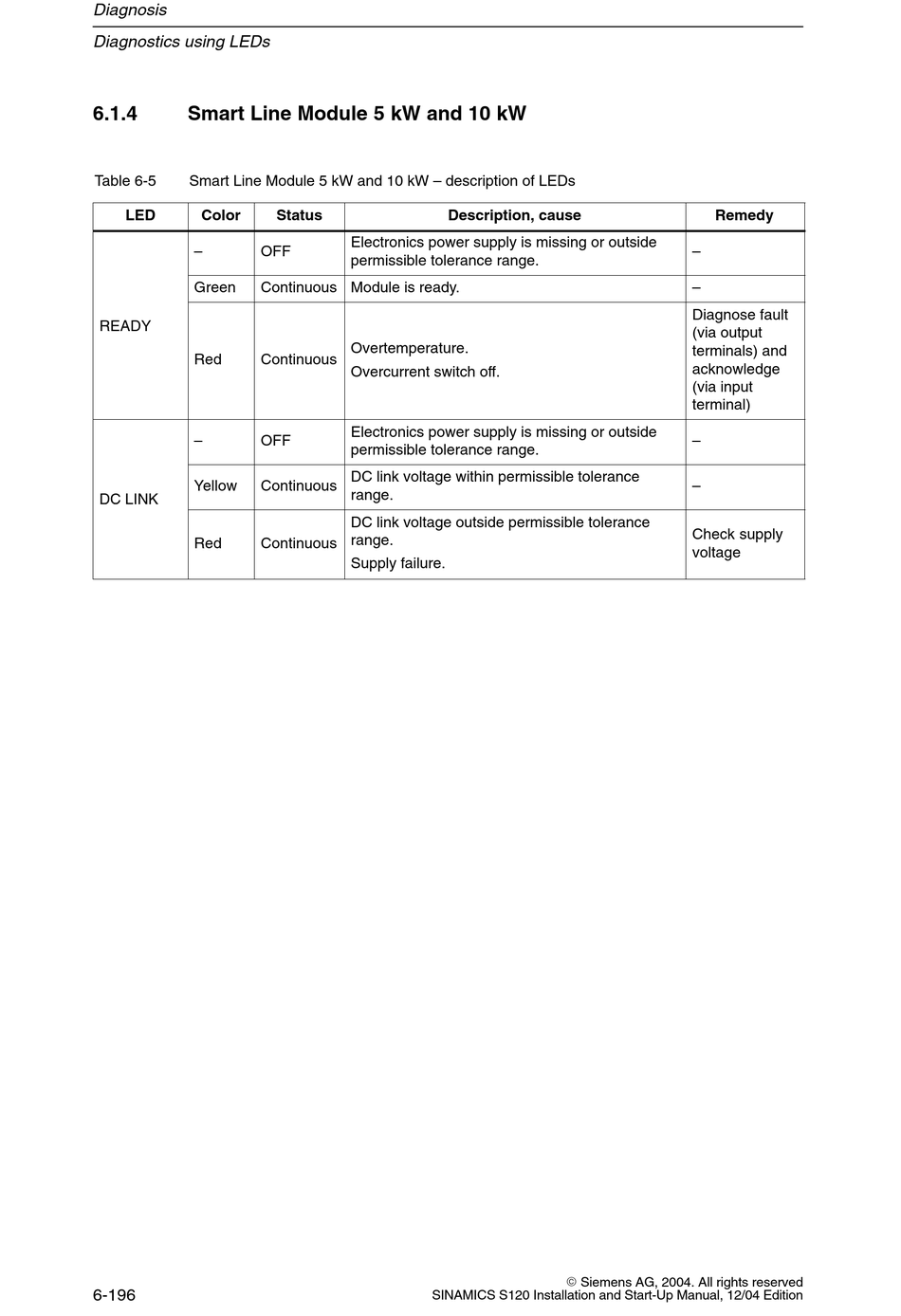

Smart Line Module 5 kW and 10 kW

Table 6-5 Smart Line Module 5 kW and 10 kW – description of LEDs
LED Color
– OFF
Green Continuous Module is ready.
READY
Red Continuous
– OFF
Yellow Continuous
DC LINK DC LINK
Red Continuous
6-196
Status
Electronics power supply is missing or outside
permissible tolerance range.
Overtemperature.
Overcurrent switch off.
Electronics power supply is missing or outside
permissible tolerance range.
DC link voltage within permissible tolerance
range.
DC link voltage outside permissible tolerance
range.
Supply failure.
SINAMICS S120 Installation and Start-Up Manual, 12/04 Edition
Description, cause
E Siemens AG, 2004. All rights reserved
Remedy
–
–
Diagnose fault
(via output
terminals) and
acknowledge
(via input
terminal)
–
–
Check supply
voltage
