11.8.2

Sensor Ranges

The sensor ranges dialogue is used to set the dynamic range of the sensors. If you are
experiencing over-range events during operation this dialogue should be used to
increase the range of the offending sensor. The lowest ranges give the best
performance so it is preferable not to use the highest range by default.
11.8.3

Filter Options

For most applications the default filter options should be used and only the vehicle
profile set. If in doubt please contact support@advancednavigation.com.au.

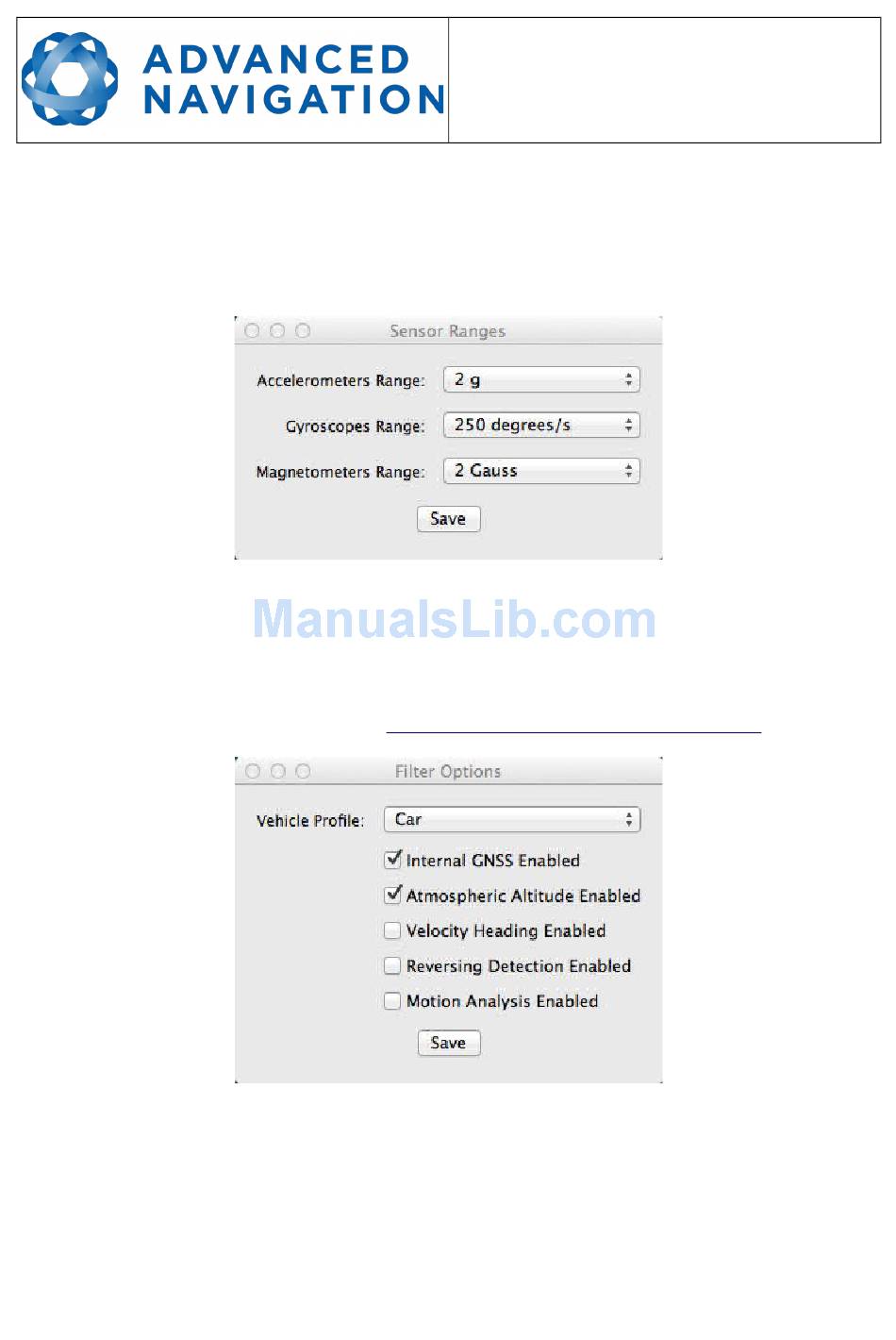

Illustration 43: Screenshot of Spatial Dual
Manager sensor ranges dialog
Illustration 44: Screenshot of Spatial Dual
Manager filter options dialogue
