Power Consumption; Connector Pin-Out - Advanced Navigation Spatial Dual Reference Manual

8.9

Power Consumption

800
700
600
500
400
300
200
100
0
5

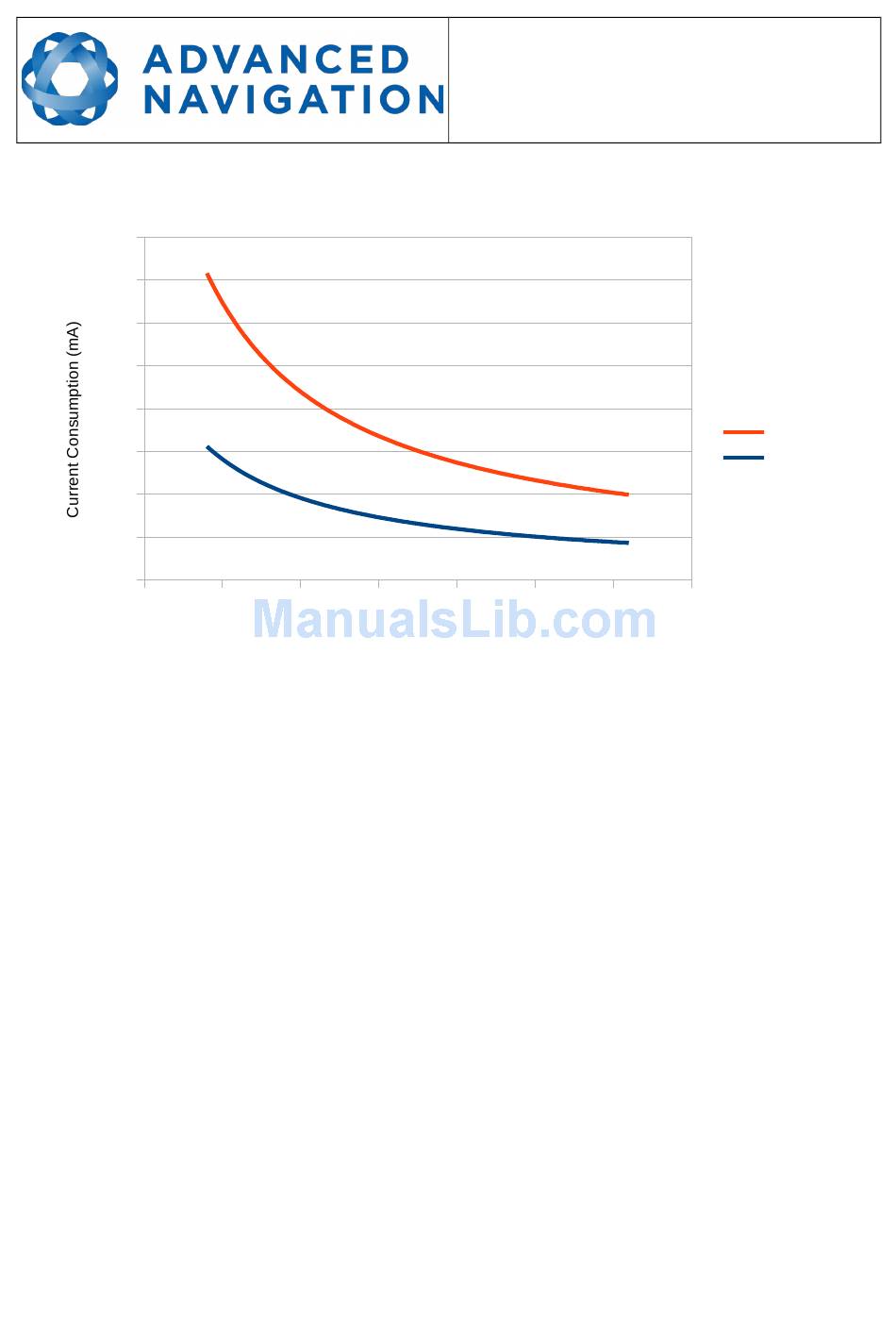

Illustration 11: Maximum and typical current consumption across operating voltage
8.10

Connector Pin-out

Power supply and signal connections are made through a ODU Mini-Snap Series B 9
pin connector. The ODU part number is S30B0SP09MCC00-5000. The connector
provides a reliable and rugged connection to Spatial Dual under demanding conditions
and is rated to IP68 in the mated condition. Plugs are supplied with 2 metres of
unterminated shielded TPE cable. Each individual wire is colour coded TPE coated
28AWG wire. Custom cable lengths can be ordered by request.
10 15 20
Voltage (V)
Spatial Dual Reference Manual
Page 31 of 137
Version 2.3
12/04/2016
25 30 35
Maximum
Typical
40
