7. Click the connect button in Spatial Dual Manager.
8. The various windows in Spatial Dual Manager can be used to view the real time
data.
9. The dual antenna heading will take a short time to initialise. The progress can
be monitored in the status view.
10.To view the data logs, click disconnect in Spatial Dual Manager. In the tools
menu, select log converter and press convert. The *.anpp binary log file will be
converted to CSV files that can be opened with popular data processing
programs such as Matlab or Microsoft Excel. The log files can be found in the
same folder as the Spatial Dual Manager software.
6.3

Antenna Survey Mount Assembly

The Antcom G5Ant-53A4T1 antennas included in the evaluation kit can either be
mounted to a panel or mounted to a standard 5/8"-11 survey mount thread with the
optional survey mount kit included in the evaluation kit. Please see Illustration 9 below
for assembly of antenna with the survey mount kit.

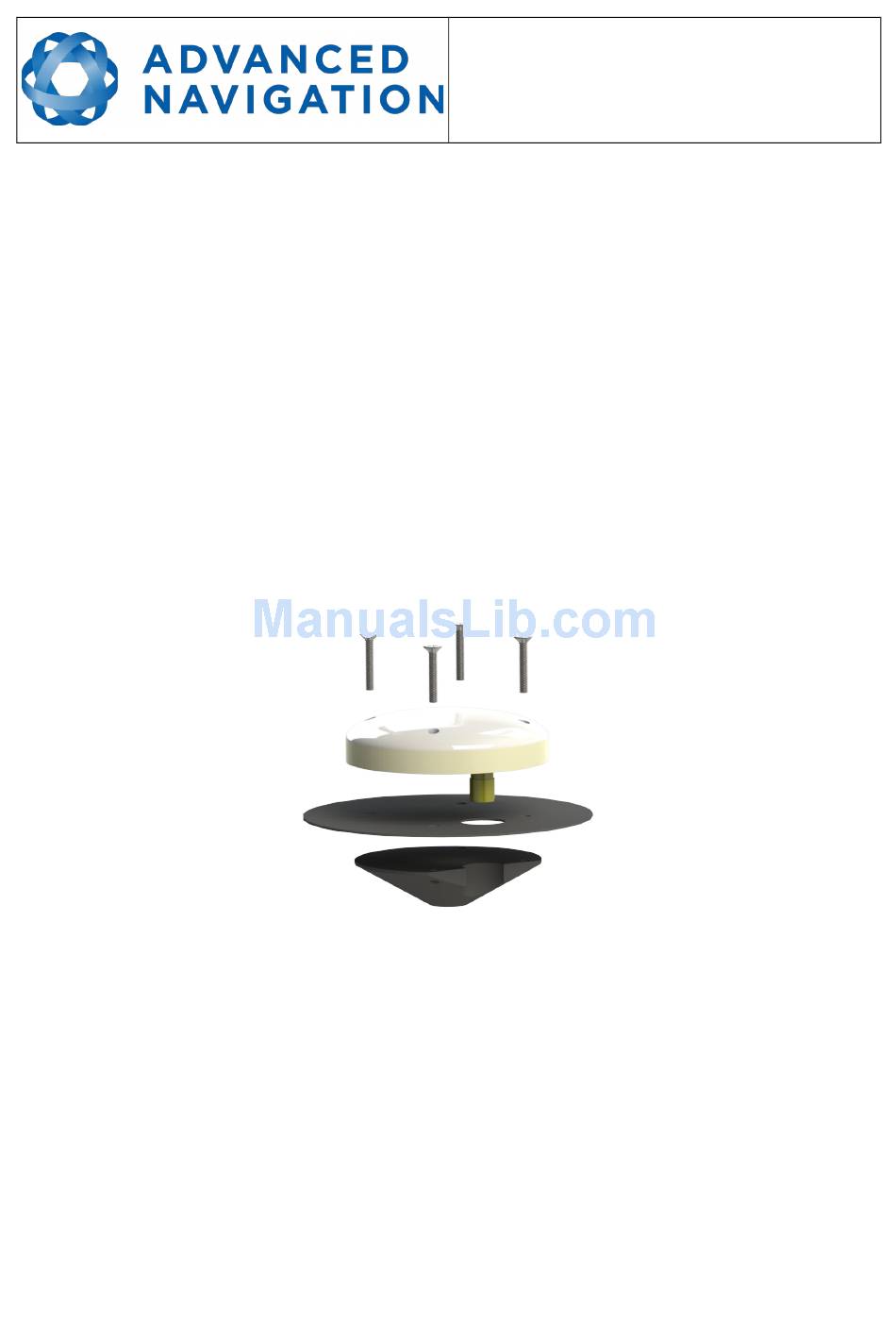

Illustration 9: Antenna survey
mount exploded view
