11.8.4

Packet Rates

The packet rates dialogue allows the user to specify which packets output on a
periodic basis and at what rate. The default packets enabled are the System State
Packet (ID 20) and the Raw Sensors Packet (ID 28) at 20Hz and these typically provide
all the data that a user will require. These two packets need to be enabled for the data
graphs to update in Spatial Dual Manager. Other state packets can be enabled as
required. Please see the Packet Summary table in section 13.7 for a list of all packets.

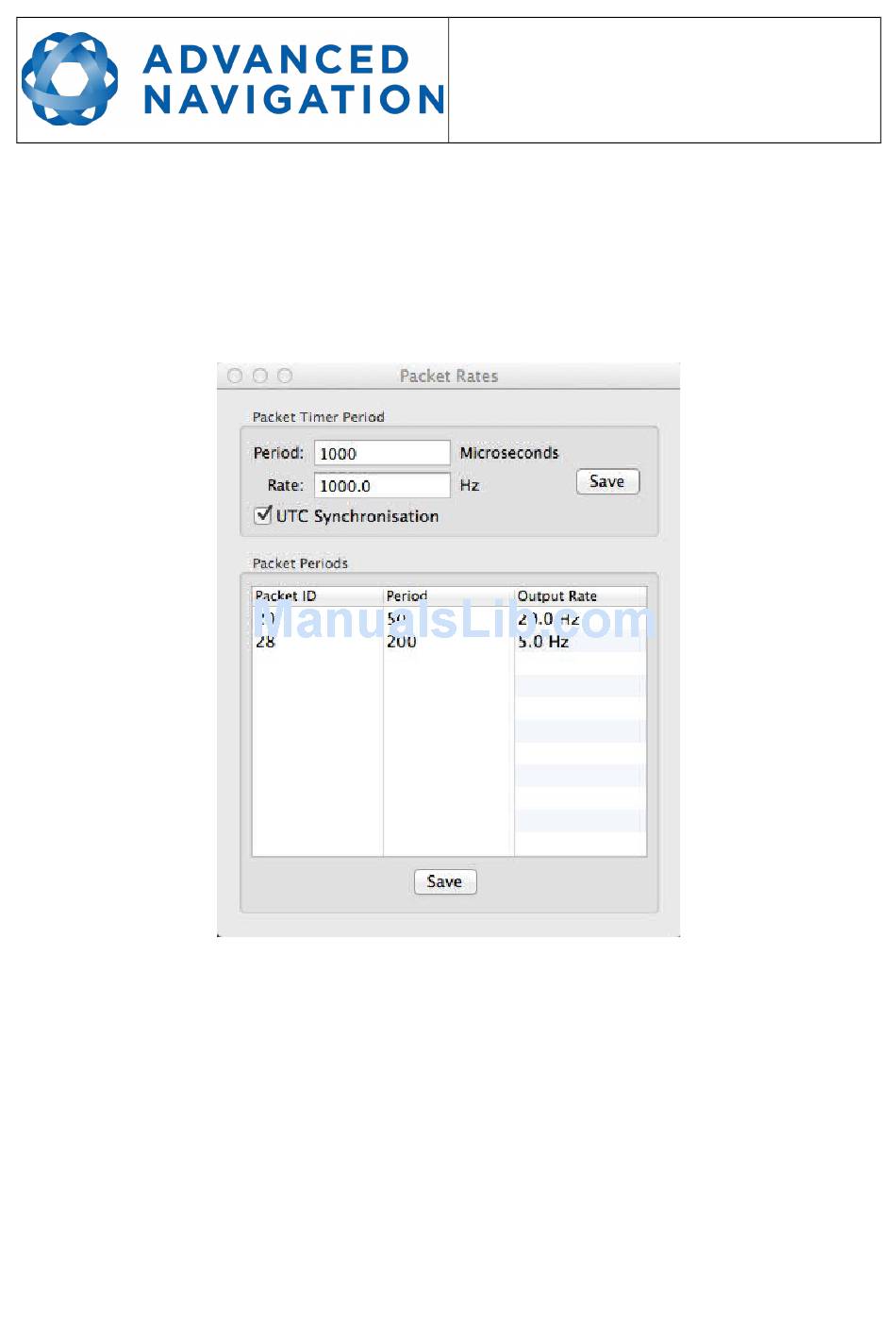

Illustration 45: Screenshot of Spatial Dual Manager
packet rates dialogue
