Evaluation Kit

Spatial Dual is supplied in an evaluation kit that contains everything required to get
started operating the system right away. The evaluation kit is supplied in a rugged
transport case to protect the equipment during shipping.

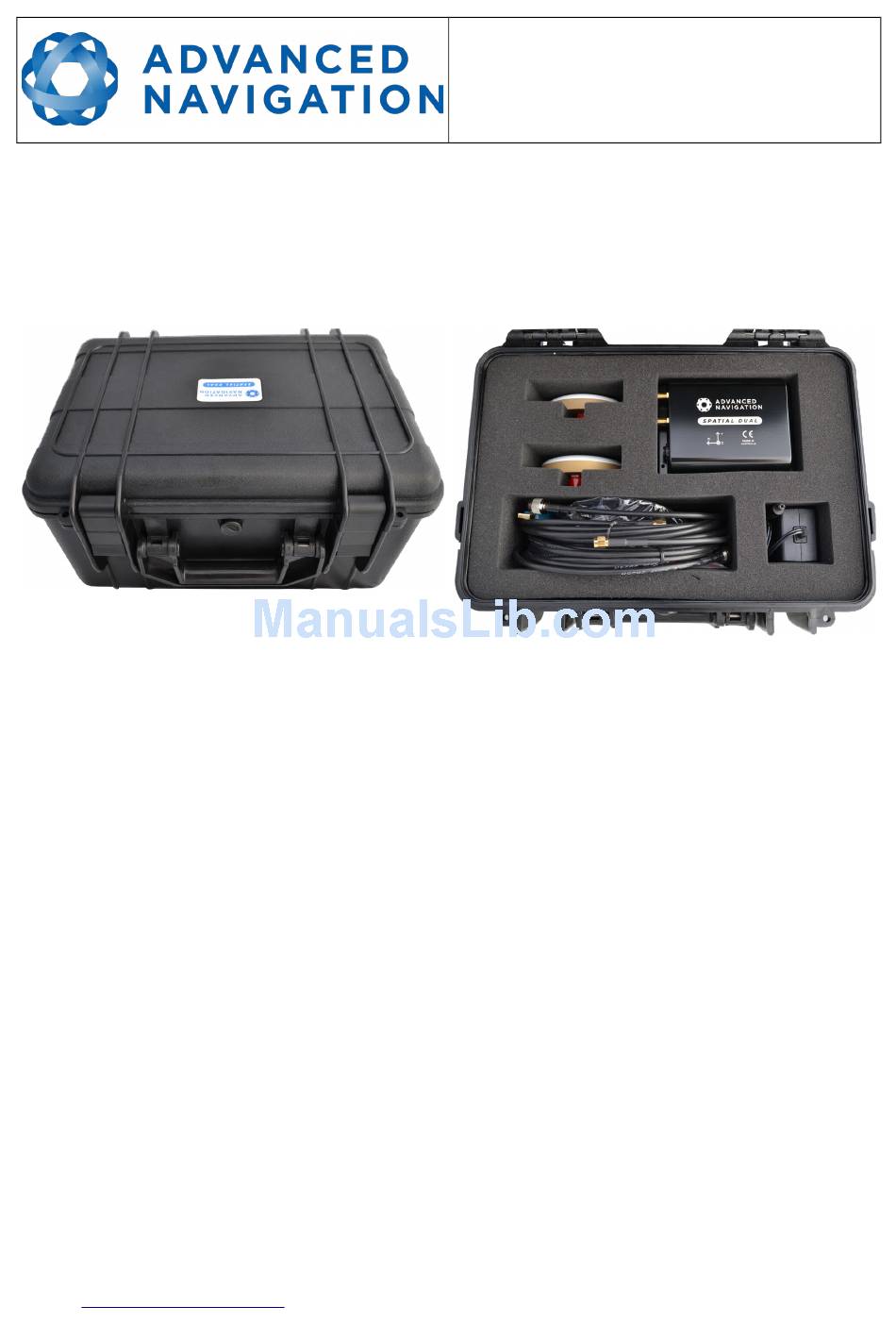

Illustration 7: Spatial Dual Evaluation Kit
rugged transport case
6.1

Evaluation Kit Contents

1. Spatial Dual GNSS/INS
2. 2x Antcom G5Ant-53A4T1 L1/L2/L5 GNSS antennas with 5/8"-11 survey mounts
3. 2x 4 metre RG58/U antenna cables
4. 2 metre interface cable harness, see section 8.11
5. 1 metre USB to RS232 cable
6. 100-240 volt AC to 24 volt DC power supply
6.2

Quick Start

1. Position the two GNSS antennas in a level orientation with a clear view of the
sky. The primary antenna should be positioned directly forwards of the
secondary antenna with separation of at least 0.5 metres.
2. Connect the coaxial cables between the antennas and Spatial Dual.
3. Plug the interface cable into Spatial Dual.
4. Plug the USB to RS232 cable into the interface cable and your computer.
5. Plug the power supply into the interface cable and then into the wall socket.
6. Download the Spatial Dual Manager software from the Advanced Navigation
website. Java is required to run the software. Java is available from
http://www.java.com
Illustration 8: Spatial Dual Evaluation Kit
contents
if not already installed.
